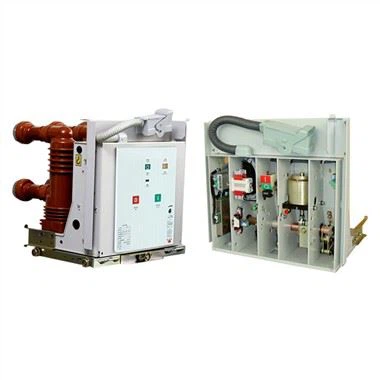

VS1 36kv Compact MV Circuit Breaker
VS1-12 is a HV indoor vacuum circuit breaker working as a protection and control unit of power grid equipment and industrial electric equipment in power system of rated voltage from 7.2KV to 12KV. It meets the requirements of GB/T1984-2014 (AC HV circuit breaker) and JB355-1996 (3.6KV-40.5KV indoor AC HV vacuum circuit breaker). It can be used in switchgears of KYN28,etc
Description
VS1 36kv compact MV circuit breaker
VS1 12kV Model indoor AC high voltage vacuum circuit breaker is a type of holistic and completely sealed High Voltage switchgear, it has compact dimension and small volume. The VCB applies to power system of rated voltage 7.2~12kV, three-phase and AC 50/60Hz. It is applicable in occasions with frequent operations, acting to protect and control line and electric apparatus. The product conforms to IEC62271-100, GB1984, JB3855 and DL1403 and passes type test.
1.2 Can be used as a protection and control unit for industrial and mining enterprises and substation equipment;
1.3 Can be used for KYN28-12 and other central switch cabinets and fixed switch cabinets;
1.4 The main circuit of the circuit breaker can be used in two ways: insulated cylinder and solid sealed pole.
1.5 Executive standards:
GB1984 "High Voltage AC Circuit Breaker"
JB/T3855 "High Voltage AC Vacuum Circuit Breaker"
DL/T403 "Technical conditions for ordering 12kV-40.5 kV high voltage vacuum circuit breakers"
IEC62271-100 "High-voltage switchgear and control equipment-Part 100: AC circuit breakers"
2. Normal use environment
3. Place of use: Indoor
4. Ambient temperature: -15℃~40℃
5. Altitude: not more than 1000m
6. Daily relative humidity (average): not more than 95%
7. Daily water vapor pressure (average value): not more than 2.2kPa
8. Monthly relative humidity (average): not more than 90%
9. Monthly water vapor pressure (average value): not more than 1.8kPa
Note: 1. The surrounding air is not obviously polluted by dust, smoke, corrosive or flammable gas, steam or salt mist;
2. Exceed the normal conditions of use, please consult with the manufacturer.
