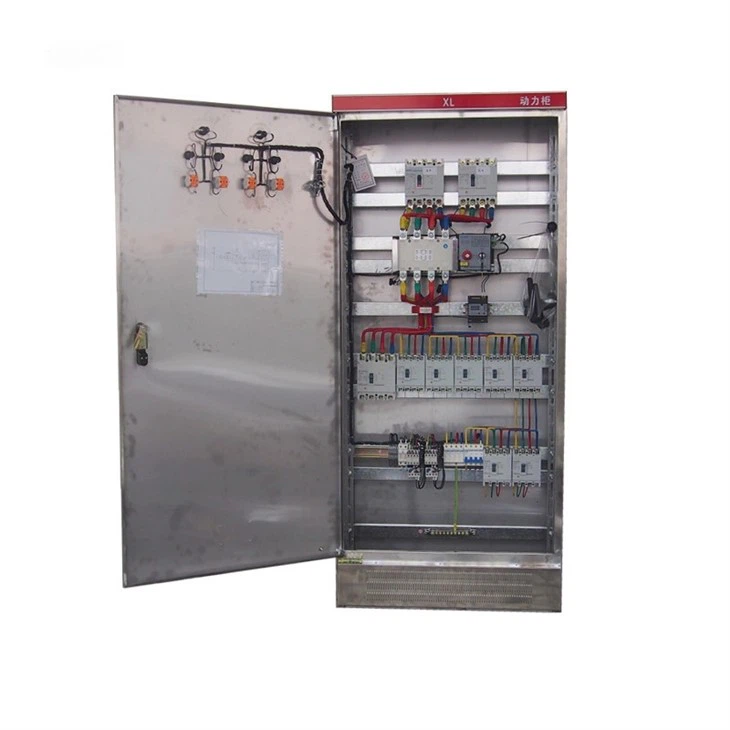

LV Switchgear 150A Power Distribution Cabinet

LV Switchgear 150A Power Distribution Cabinet





Low voltage switchgear, also known as low-voltage switchgear, is mainly used in the low-voltage distribution part of the power system and is often installed in the distribution room. It consists of terminal blocks, various switches, protection equipment (air switches, fuses, etc.), measuring equipment (voltmeter, ammeter, etc.), and metering equipment (active and reactive power meters, etc.).

Divided into two types: drawer type and fixed type; Fixed type refers to fixed installation, while drawer type refers to the flexible assembly of certain electrical components into several functional units according to a certain circuit scheme, and then into a distribution panel (cabinet). Each functional unit is similar to a drawer, but it can be pulled out or UI like, so it is also called a pull-out type. Usually installed off the wall and can be maintained on both sides.

The functions of low-voltage switchgear are generally as follows:

1. Reasonably configure power supply;

2. When there is a fault in the circuit, it is beneficial to control the scope of the fault and facilitate the quick identification and elimination of the fault point;

3. Easy to arrange line maintenance in sections without the need for large-scale power outages;

4. Convenient placement of various protective devices inside the distribution cabinet (such as fuses to prevent short circuits, air switches to prevent overload, etc.)

In today's rapid development of complete power equipment, the safe and stable operation of low-voltage switchgear is crucial. With the complexity and depth of the power industry and application fields, the possibility of low-voltage switchgear malfunctions has also increased.

Typical problems that may occur in low-voltage switchgear include the inability of circuit breakers to close, the inability of the main switch in the incoming cabinet to open, the reversal or non rotation of the main metering reactive power, the inability of the drawer to turn the meter, and the inability to automatically switch between dual power sources

Working environment conditions:

*Ambient air temperature: -15°C-+40°C;

*Relative humidity: Daily average ≤ 95%,and daily average of water vapor pressure < 2.2kPa;

Monthly average ≤ 90%,and monthly average of water vapor pressure < 1.8kPa;

*Altitude: ^ 1000m;

*Seismic intensity: No more than 8 degree

*Ambient air should be free of pollution of corrosive or flammable gas or vapor;

*No obvious vibration;

Main technical parameters
Sequence number	Project Name	Unit	Electrical parameters
1	standards		GB 7251.1-2005
2	The rated voltage insulation Ui	V	690V
3	Rated voltage Ue	V	400V
4	Rated current In	A	630A~100A
5	Short-term tolerance current ability lew	kA	20KA
6	Shell IP protection grade		IP30/IP55/IP65
7	Environment temperature	°C	-20~+40
8	installation		landing
9	Case materials	mm	1.5-2.0 Cold-rolled steel sheet or stainless steel plate
10	Surface treatment		Electrostatic spraying technology
11	Open the direction		The opening Angle is equal or greater than 135 °





Jiyuan Fengyuan Electrical Equipment Co., Ltd was established in 1984 and is a designated enterprise specializing in the production of high and low voltage switch cabinets by the State Grid Corporation of China.

We have more than 30 years professional experience in high and low voltage complete switchgear cabinet,box type substation,transformer,etc, have CE,ISO, GB,CQC,certificate

Factory directly,Professional manufacturer, All can be customized according to your local requirement

Welcome to inquiry

Q5 : Is OEM/ODM available?

A: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.



Q6 : You are manufacturer or trading company?
A: We are factory, As a 100% professional manufacturer with 20 year's manufacturer experience, we could produce products according to customers' requirements and we could also control the quality of products 100%.



Q7 : Can the price be negotiated?

A: Yes, the price is negotiable. It can be changed according to your quantity or package



Q8 : How about inspection?

A: We have the whole inspection system from raw material to end products include temperature rise test,salt spraying test conductor type test,mechanical life test.



Q9 : What is payment terms?

A: T.T, Paypal,Western Union,Alibaba trade assurance and L/C is acceptable. 30% T/T in advance ,70% balance before shipment.



Q10 : What is the service offered by company?

A: We have the professional engineer team which can design and develop the mold to arrive different customer requirement.

We also have the sales team to offer good service from pre-sale to after-sale.



This product is usually customized.
We are a manufacturer and have a professional technical department that can design and provide solutions according to customer needs.
Please contact our sales personnel to obtain design drawings
