LV Electrical Distribution Compensation Panelboard 400V

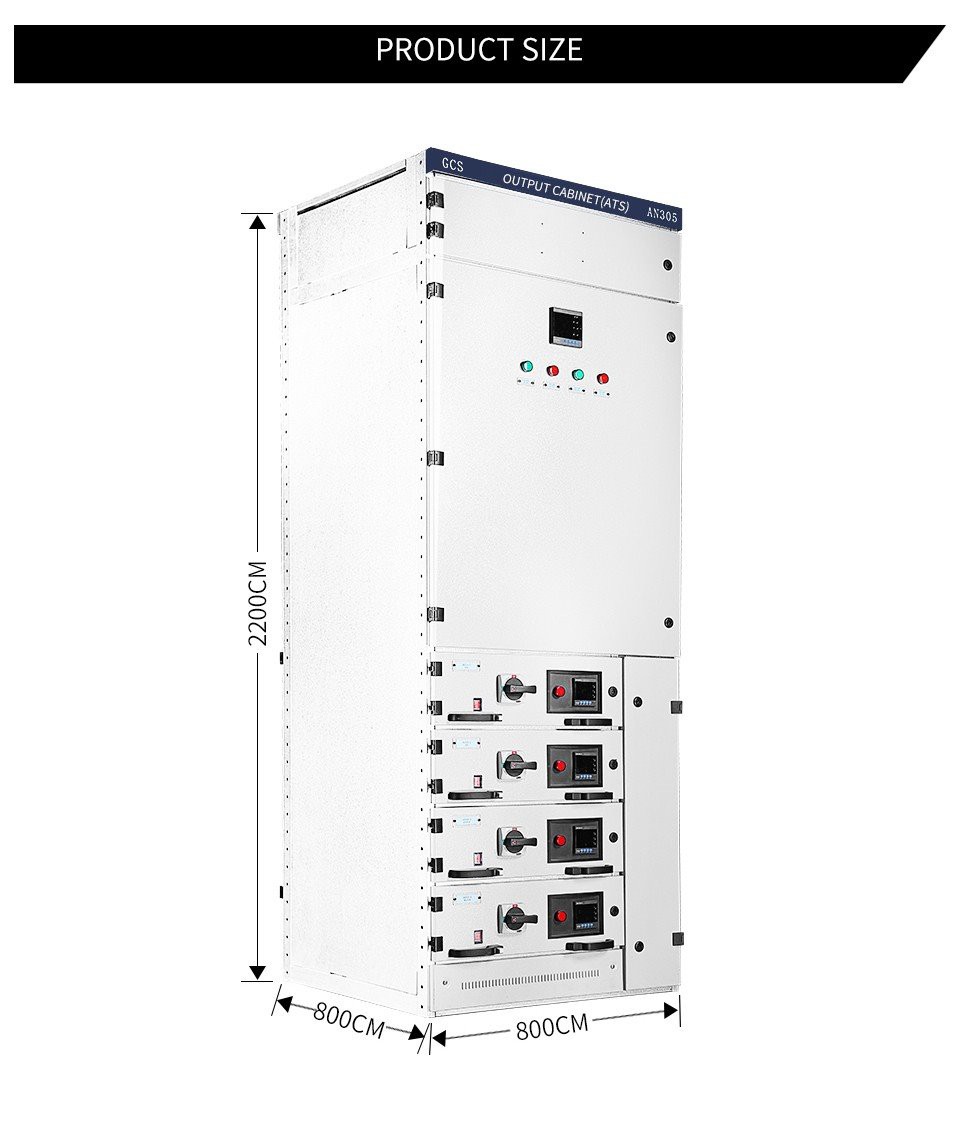

GCS low voltage withdrawable switchgear cabinet is suitable for three-phase AC frequency of 50Hz, rated working voltage of 380V, rated current of 4000A and below in power generation / power supply system as power, distribution and motor centralized control, electrofusion compensation. The product conforms to iec60439-1, gb7251.1, JB / t9661 and other standards
Description

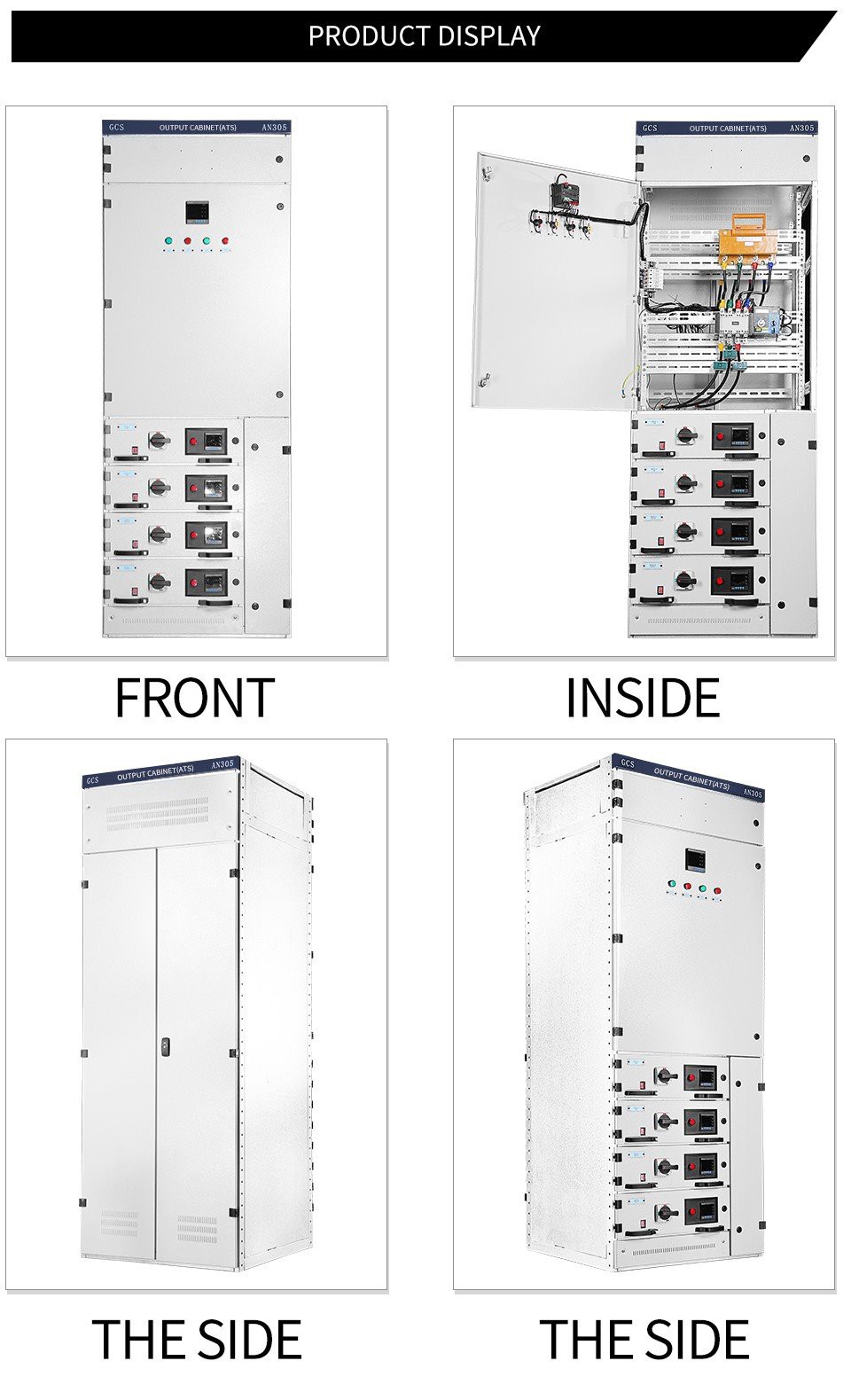

LV electrical distribution compensation panelboard 400V
1)main function:
1:power distribution control cabinet for power generation and supply system
2:centralized control of motor
3:reactive power compensation at same time
2)suitable place
1: all places where required high reliability and safe power distribution and motor control.
2 :for rated working voltage <= 660V electric system
3)cabinet characteristic
It is top world level technique ,high intelligent assemble way, easy operation and maintenance
1:all component are standard type, conveninet for project planning
2:drawer can be built up into different modes freely
3:The frame of the cabinet selects tee bend connection of 25mm modulus special C section bar, which is assembled by locking screws and high strength screws.
4:The cabinet body is made of cold rolled steel or imported A-zinc alloy plates
5:the equipment is with function :Anti electric arc ,earthquick resistance, oscillation reistance, shock reistance
6:The cabinet body is free of maintenance to most extent
4)drawer function:
1:each drawer is independent, and seperated entirely, and each one can exchange internally
2:the drawer is contained of several engine function parts, it has place with CONNECTION/ TEST/ SEPERATE/ MOVE OUT ., and can locked seperately. the display/ control/ human-machine face to face panel are centralized in front board
3:through hand shank and interlock, can accurately fix postion in CONNECTION/ TEST/ SEPERATE/ MOVE OUT . each position will show directly on front panel
5)Service
install and guide user in free of charge
whole life service
6.technical parameter
| item | date |
| rated voltage | to 660V |
| ratd voltage impacte indurance | 8KV |
| rated frequency | 50/60hz |
| grounding system | TT,IT, TN-S,TN-C-S |
| ratd voltage of auxiliary circuit | AC380,220v/ DC220v |
| maximum coil in and out broken circuit | 4000A |
| pollution degree | 3 |
| rated current | 4000A |
| horizontal busbar rated current | 4000A |
| vertical busbar rated current | 2000A,1000A |
| horizontal busbar ratd shorttime withstand current | 50/80KA |
| horizontal busbar rated peak value withstand current | 105/176KA |
| vertical busbar rated short time withstand current | 50KA |
| vertical busbar rated peak value withstand current | 105KA |

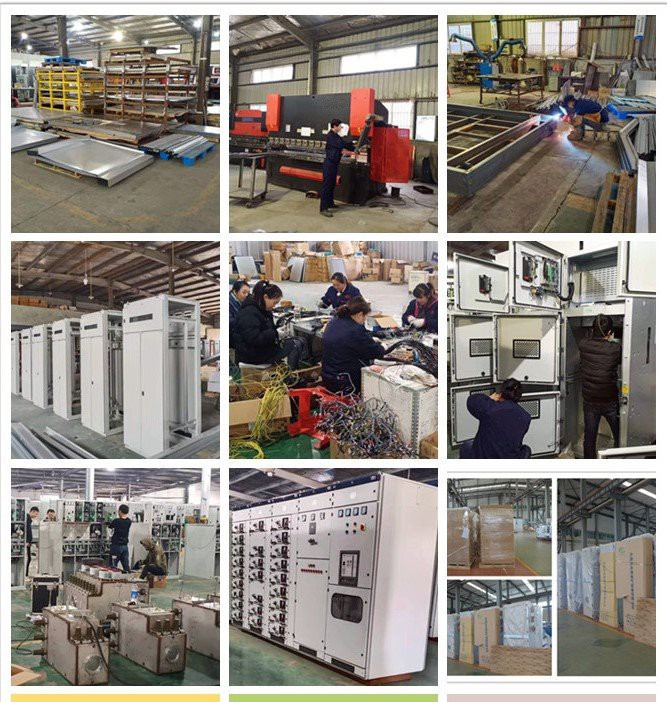

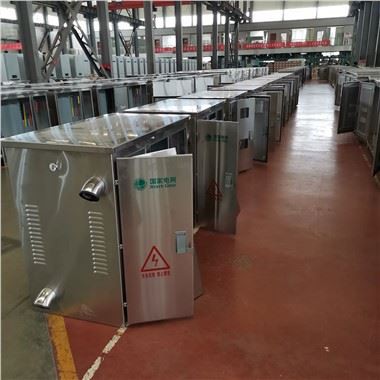

WORKSHOP
CERTIFICATE
EXHIBITION
COMPANY OVERVIEW
FAQ
Q5 : Is OEM/ODM available?
A: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.
Q6 : You are manufacturer or trading company?
A: We are factory, As a 100% professional manufacturer with 20 year's manufacturer experience, we could produce products according to customers' requirements and we could also control the quality of products 100%.
Q7 : Can the price be negotiated?
A: Yes, the price is negotiable. It can be changed according to your quantity or package
Q8 : How about inspection?
A: We have the whole inspection system from raw material to end products include temperature rise test,salt spraying test conductor type test,mechanical life test.
Q9 : What is payment terms?
A: T.T, Paypal,Western Union,Alibaba trade assurance and L/C is acceptable. 30% T/T in advance ,70% balance before shipment.
Q10 : What is the service offered by company?
A: We have the professional engineer team which can design and develop the mold to arrive different customer requirement.
We also have the sales team to offer good service from pre-sale to after-sale.
