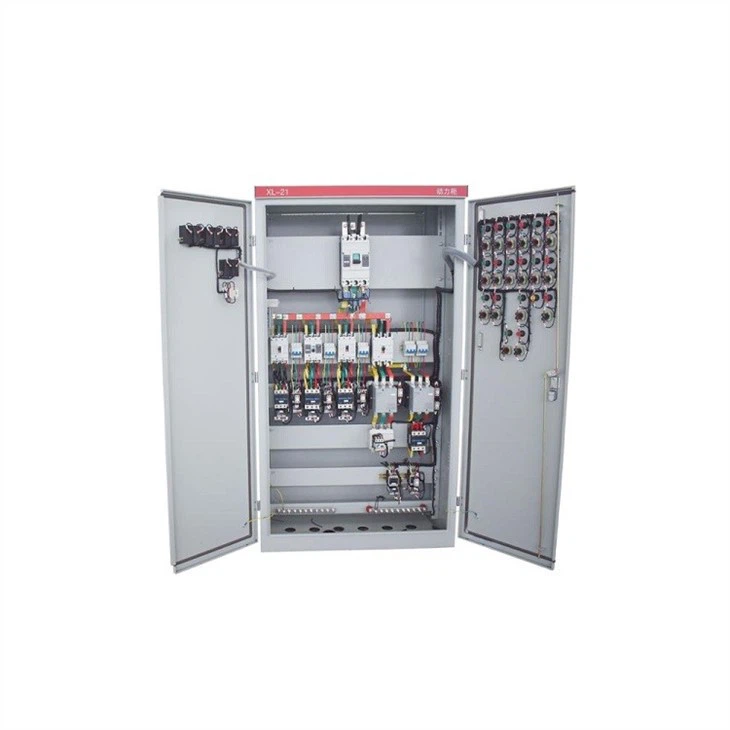

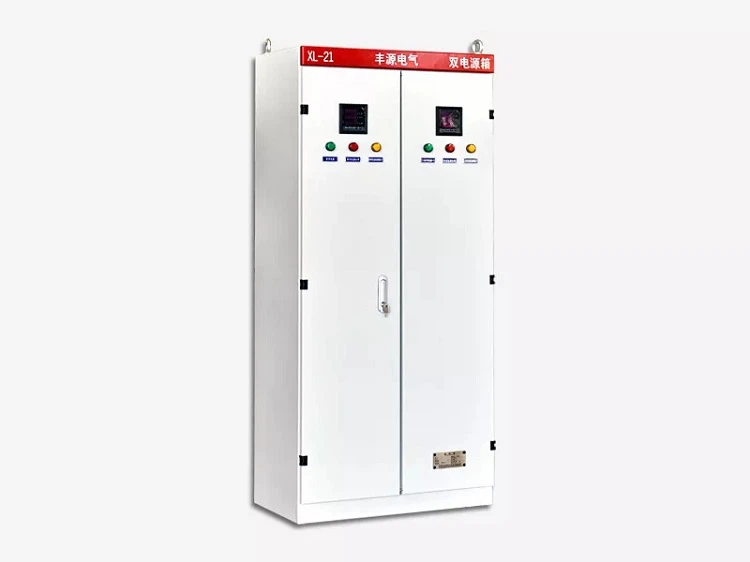

XL-21 Electrical Control Panel Board
The power distribution cabinet is suitable for power distribution in power plants and industrial and mining enterprises in three-phase four-wire or three-phase five-wire systems with AC voltage of 500 volts and below.
Main technical parameters
Sequence number | Project Name | Unit | Electrical parameters |
1 | Standards | GB 7251.1-2005 | |
2 | The rated voltage insulation Ui | V | 690V |
3 | Rated voltage Ue | V | 400V |
4 | Rated current In | A | 630A~100A |
5 | Short-term tolerance current ability lew | kA | 20KA |
6 | Shell IP protection grade | IP30/IP55/IP65 | |
7 | Environment temperature | °C | -20~+40 |
8 | Installation | landing | |
9 | Case materials | mm | 1.5-2.0 Cold-rolled steel sheet or stainless steel plate |
10 | Surface treatment | Electrostatic spraying technology | |
11 | Open the direction | The opening Angle is equal or greater than 135 |
Use, Maintenance and Repair
After the power distribution box is installed or overhauled, the following inspections and tests must be carried out before it is put into operation (the inspections and tests after the overhaul depend on the nature of the overhaul).
1. Check whether the electrical equipment and secondary wiring inside the power distribution cabinet meet the requirements of the drawing.
2. Check whether the knife switch and air switch used for operation are flexible, and there should be no jamming.
3. Check whether the contact of the installed electrical equipment is good and whether it meets the requirements for the use of the electrical equipment itself.
4. Check whether there are other foreign objects inside the power distribution cabinet and whether the solid screws of each part are loose.
