GCK/MNS Switchboard 304V Electrical Cabinet
GCS/MNS/GCK LV withdrawable switchgear (hereinafter referred to as device) is manufactured by standard module through consulting MNS series low voltage switch cabinet of Switzerland ABB Company, and synthetically improved. The device is applicable to the system with AC 50Hz, rated working voltage 660V and below, used as control device for various power generation, transmission, distribution, power transfer and power consumption device. It is widely used in low voltage distribution system of various mining enterprise, tall building and hotel, municipal construction etc. Besides the general land use, after special disposal, it also can be used for marine petrol drill taken platform and nuclear power station. The device accords with international standard IEC439-1 and national standard GB7251.1.
Description

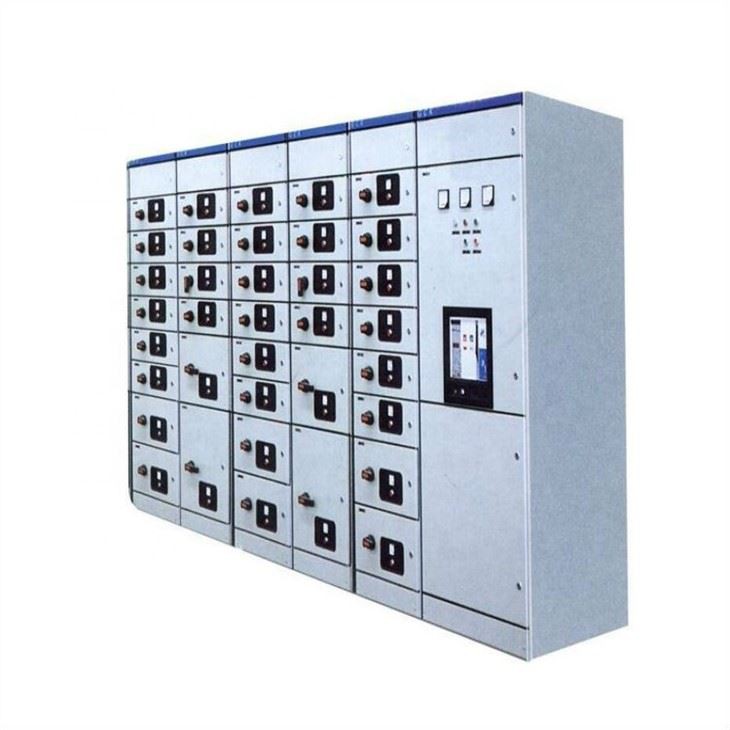

GCK/MNS switchboard 304V electrical cabinet
GCS/MNS/GCK low voltage draw-out switchgear is composed of power distribution center (PC) cabinet and motor control center (MCC), which is suitable for power plant, substation, industrial and mining As an AC 50/60hz, the maximum working voltage is 690V and the maximum working current is 3150A. the power users such as enterprises are used as power distribution and motor control the product meets iec439 standard and GB7251 low voltage cabinet, switchgear and control equipment National standard, with high breaking capacity, good dynamic and thermal stability, advanced structure reasonable structure, practical electrical scheme, series and universality. All kinds of units of rich and rich Inline, a cabinet body contains more return, saving land area, beautiful appearance, high green protection, safe curtain, convenient maintenance and other advantages
1. Compact design: Contain more function units with less space.
2. Strong versatility for structure, flexible assembly. C type bar section of 25mm modulus can meet the demands of various structure and type, protection grade and operating environment.
3. Adopt standard module design, can be combined into protection, operation, transfer, control, regulation, measurement, indication etc such standard units. User can choose assembly according to requirement at will. Cabinet structure and drawer unit can be formed with more than 200 components.
4. Fine security: Adopt high strength antiflaming type engineering plastic pack in large quantity to effectively enhance the protective safety performance.
5. High technical performance: Main parameters reach the advanced level at home.
The basic cabinet of device is combined assembly structure. Basic structural pieces of cabinet is zinc plated, connected and firmed into basic bracket through self tapping locking screw or 8.8 grade square corner screw. According to the change demand of project, additionally add corresponding gate, closing board, baffle plate, installation support and the components of bus bar, function units, to assemble a complete set of device. Perform modulus to interior component and compartment size (Modulus unit e=25mm).
Environmental Conditions
- Suitable Altitude: 1000m ~ 4000m
- Suitable Temperature: -40℃ ~ +45℃
- Relative Humidity: Daily mean ≤95%, monthly mean ≤90%
- Gradation of Earthquake Damage: ≤ Level 8
Technical Data
| No. | Item | Unit | Data |
| 1 | Rated voltage | V | 400,690 |
| 2 | Rated insulation voltage | V | 660,1000 |
| 3 | Rated current | A | 400~6300 |
4 | Rated current of drawer accessories | A | 250,400,630 |
| 5 | Rated short-circuit current | KA | 20~120 |
| 6 | Insulation: Power frequency withstand voltage | V | Main circuit:2500; Auxiliary circuit 2000 |
| 7 | Protection class | IP4X | |
| 8 | Operating mechanism | Manual mechanism; Electric mechanism | |
| 9 | Operational power supply | V | DC:110,220; AC:110,220 |
| 10 | Overall dimension(Width*Depth*Height) | mm | 600(800,1000)x800(1000)x2200 |
| 11 | Weight | KG | 300~1000 |
