Description

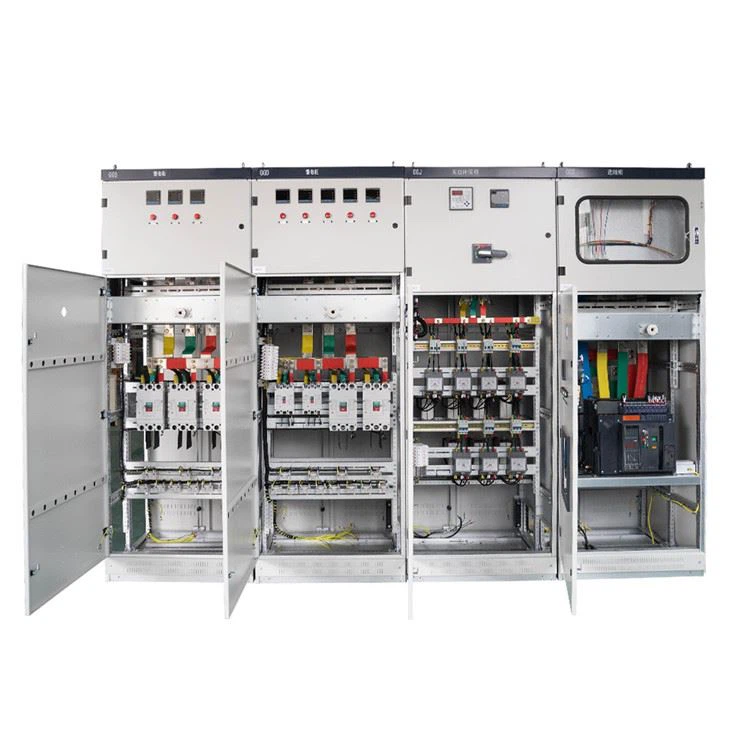

Electrical Switchgear With Metal Enclosure
IEC standard, input panel, output panel, PT cabinet, CT cabinet, power and reactive power compensation cabinet
 |  |
The electrical switchgear devices are devices connected to high-voltage or low-voltage cables. General power supply bureaus and substations use high-voltage cabinets, which are then stepped down to low-voltage cabinets through power transformers, and then to each distribution box through low-voltage cabinets. It is an electrical equipment assembled by some switchgear, circuit breakers, protection devices and circuit breakers.
Specification | Unit | Data | ||
Rated voltage | kv | 11,33,35,40.5 | ||
Rated current | rated current of bus line | A | 630,1250,1600,4000 | |
rated current of circuit breaker | A | 630,1250,1600,4000 | ||
Insulation level | 1min power frequency withstand voltage | KV | 95/110 | |
lightning impulse withstand voltage | KV | 185/215 | ||
power frequency withstand voltage of auxiliary circuit and control circuit | V | 2000 | ||
Rated frequency | HZ | 50/60 | ||
Rated short circuit breaking current | KA | 20/25/31.5 | ||
Rated short-time withstand current of short circuit duration | KA/4s | 20/25/31.5 | ||
Rated current of peak withstand | KA | 50/63/80 | ||
Rated making current of short circuit | KA | 50/63/80 | ||
Rated voltage of control loop | V | DC:110 220 AC:110 220 | ||
Protection leve | switch equipment shell | |||
compartment(cupboard door open) | ||||
Fengyuan Power Technology can also customize the production of electrical switchgears for you, according to your needs.
Factory showing room
Product qualification
Packing & Delivery
We accept OEM. Payment terms are usually T/T, other payment methods are based on communication. The delivery time is usually 10-25 days.
Thank you for choosing Fengyuan Power as your reliable partner. Please believe that we will create a better future together!
