Electric Power Distribution Control Panel

XL-21 electric power distribution control panel is used for power, lighting, and power distribution of three-phase three-wire, three-phase four-wire, and three-phase five-wire systems with AC 500V and below, for power generation and mining enterprises. The XL-21 distribution control panel has...

Description

XL-21 electric power distribution control panel is used for power, lighting, and power distribution of three-phase three-wire, three-phase four-wire, and three-phase five-wire systems with AC 500V and below, for power generation and mining enterprises. The XL-21 distribution control panel has the characteristics of flexible power distribution scheme, convenient combination, good practical performance and novel structure.



Main technical parameters

Sequence number

Project Name

Unit

Electrical parameters

1

standards


GB 7251.1-2005

2

The rated voltage insulation Ui

V

690V

3

Rated voltage Ue

V

400V

4

Rated current In

A

630A~100A

5

Short-term tolerance current ability lew

kA

20KA

6

Shell IP protection grade


IP30/IP55/IP65

7

Environment temperature

°C

-20~+40

8

installation


landing

9

Case materials

mm

1.5-2.0 Cold-rolled steel sheet or stainless steel plate

10

Surface treatment


Electrostatic spraying technology

11

Open the direction


The opening Angle is equal or greater than 135 °

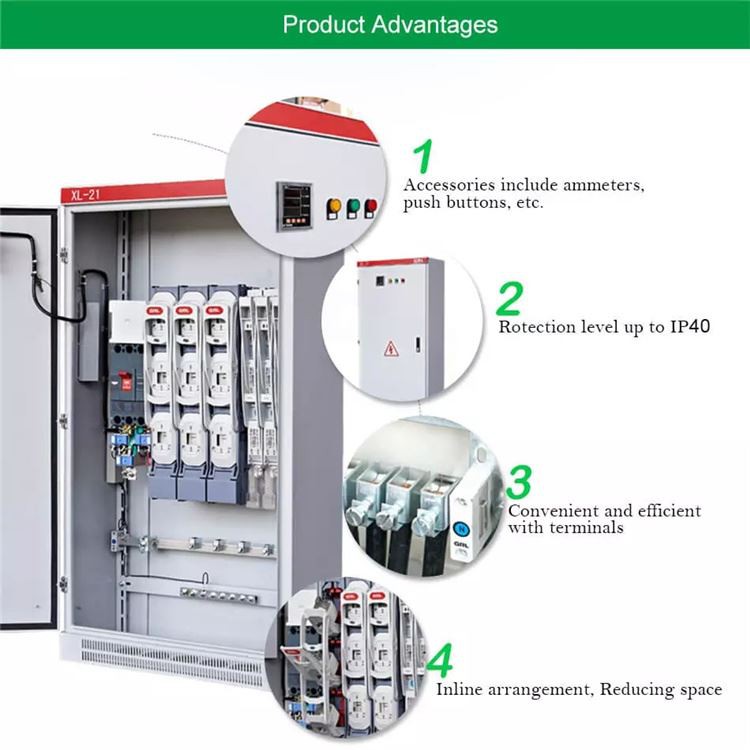

Electric Power Distribution Control Panel

Electric Power Distribution Control Panel Price

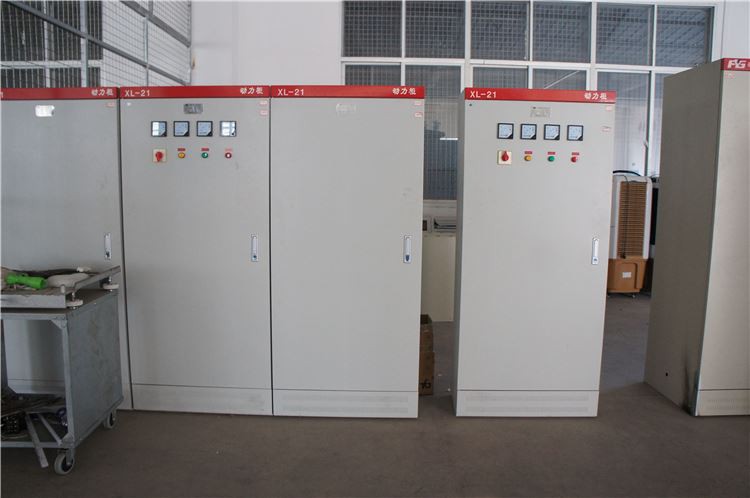

Electric Power Distribution Control Panel Factory

Distribution Board Price

Distribution Board Made in China
