JP Waterproof Electrical Comprehensive 100A Distribution Cabinet

JP waterproof electrical comprehensive 100A distribution cabinet

JP integrated power distribution cabinet, namely JP cabinet is a new type of integrated control cabinet that integrates power distribution, metering, protection, control and reactive power compensation.Circuit breaker, metering, lightning protection, overload, short circuit, phase break, leakage and other protective functions, generally installed in the outdoor transformer low-voltage side.

technical parameter

No.	The name of the	units	parameter
1	Variational pressure capacity	KVA	30-400
2	Rated working voltage	V	AC400
3	Operating voltage of the auxiliary circuit	V	AC220, AC380
4	Rated frequency	Hz	50
5	Rated current	A	630
6	Rated leakage operating current	mA	30-300adjustable
7	Protection grade		IP54

Working conditions

ambient temperature: -15ºC~+40ºC;
*Altitude: no more than 1000m;
*Relative humidity: the average value of daily relative humidity shall not exceed 95%, the average value of monthly relative
humidity shall not exceed 90%, the average value of daily water vapor pressure shall not exceed 2.2kPa, and the average value of monthly water vapor pressure shall not exceed More than 1.8 kPa;
*Ambient air: not visibly contaminated by dust, smoke, corrosive and/or flammable gases, vapors, or salt spray; The vibration or ground movement from the outside of the switchgear and control equipment can be ignored;
*The amplitude of electromagnetic interference induced in the secondary system shall not exceed 1.6kV.
*Special Service Conditions: According to the national standard GBT11022-999 "Common Technical Requirements of High Voltage Switchgear and Control Equipment Standard", the circuit breaker should be operated under normal service conditions. If the working conditions used by the user are different from the normal operating conditions, such as the installation site is over 1000m above sea level, the ambient air temperature exceeds the limit specified in the normal operating conditions or the high humidity where condensation is easy to occur, the user shall consult with the manufacturer and reach an agreement.

Structure Characteristic

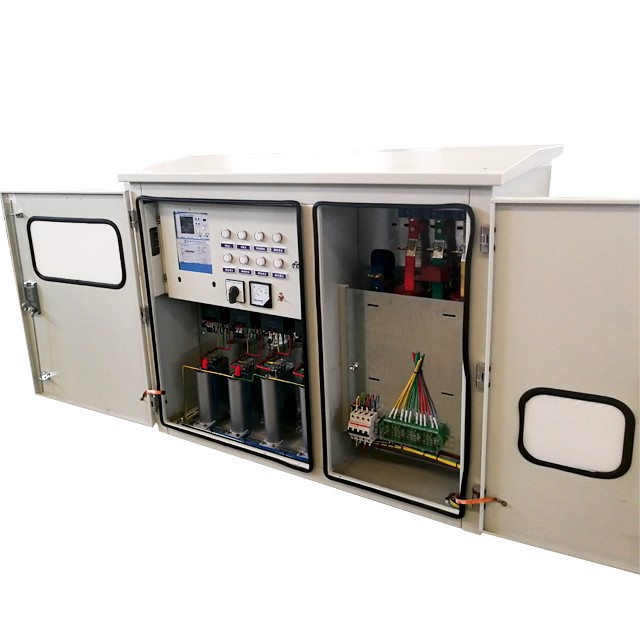

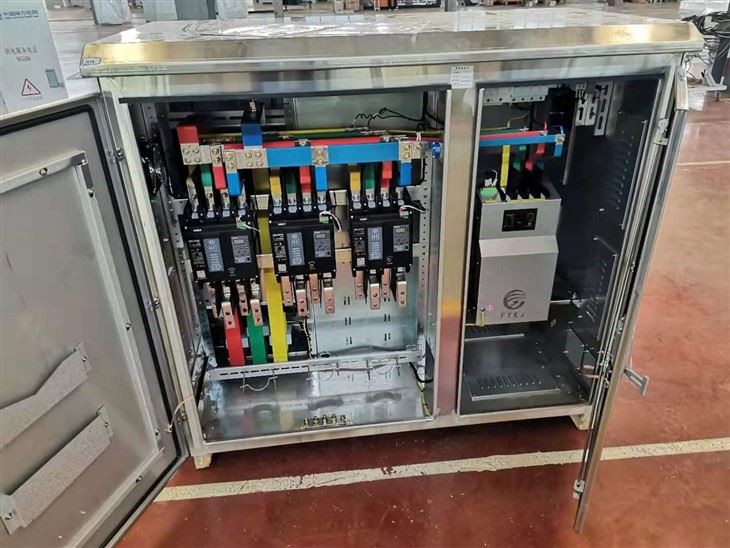

There are the horizontal type and vertical type , The shell is made of (2mm) high quality stainless steel or honeycomb structure stainless steel double-layer composite plate , It has the features of flame retardant, environmental protection, heat insulation, anti-condensation ,use the special stainless steel welding process , strength box structure , bright surface , no weld marks , The inner installation board with hot galvanizing process treatment , ensure that do not be rust within 20 years, There are the front door and back door , easy for client operate or repair , there are the high elastic and aging-resistant sealing strip around the door . Every door equipped with bright and dark door locks , The bright lock has the rain cover , measurement room is fully enclosed with lead sealing device , There is the inline cable pipe in the side of cabinet to prevent the rain, ventilation and cable outlet holes at the bottom . The top with ventilation lanes and wire nets for waterproof, rust, dust, foreign body function, protection grade IP54 .

Characteristics of low-voltage distribution boxes

1. High safety: The low-voltage distribution box adopts various technical measures in its design, such as overvoltage protection, short circuit protection, leakage protection, etc., to ensure the safety and reliability of the equipment and avoid adverse consequences caused by electrical accidents.

2. Good stability: The low-voltage distribution box adopts various control technologies and protection measures, which can effectively stabilize the power supply and avoid power quality problems caused by factors such as power fluctuations and transformer faults.

3. Easy to maintain: The low-voltage distribution box has a modular design that is easy to maintain and replace, and is equipped with an intelligent monitoring system that can achieve remote monitoring and fault diagnosis, greatly improving the reliability and stability of the equipment.

The Application of Low Voltage Distribution Box in Enterprises

1. Industrial manufacturing: Industrial manufacturing is the main application field of low-voltage distribution boxes, and various mechanical equipment, production lines, etc. require low-voltage distribution boxes to distribute and control electricity.

2. Commercial buildings: Commercial buildings such as shopping malls, office buildings, hotels, etc. also require low-voltage distribution boxes for power supply and the normal operation of various equipment.

3. Medical and Health: The medical and health field has high requirements for power quality, and low-voltage distribution boxes have played an important role in the electricity consumption of hospitals.

Future Trends of Low Voltage Distribution Boxes

With the continuous development of power technology, low-voltage distribution boxes will also be constantly updated and upgraded, tending to be more intelligent and automated. At the same time, attention will also be paid to the application of energy conservation, environmental protection, and renewable energy to better meet the electricity needs of enterprises and help them achieve sustainable development.

In short, as an important component of enterprise power, low-voltage distribution boxes are of crucial significance for the safe, stable, and reliable operation of enterprises. Therefore, in enterprise power planning, the selection and configuration of low-voltage distribution boxes also need to be highly valued.
