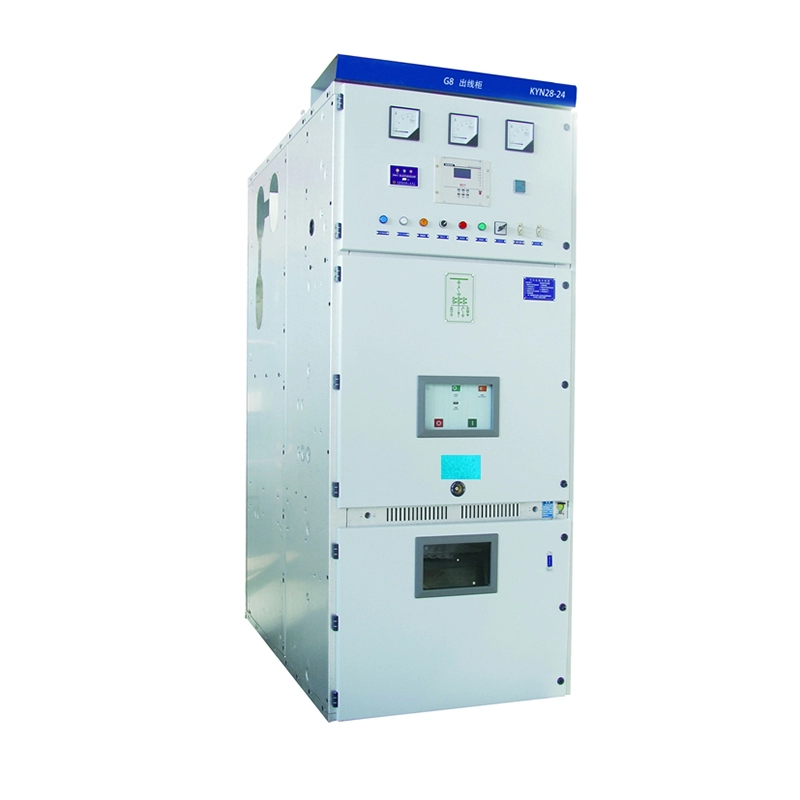

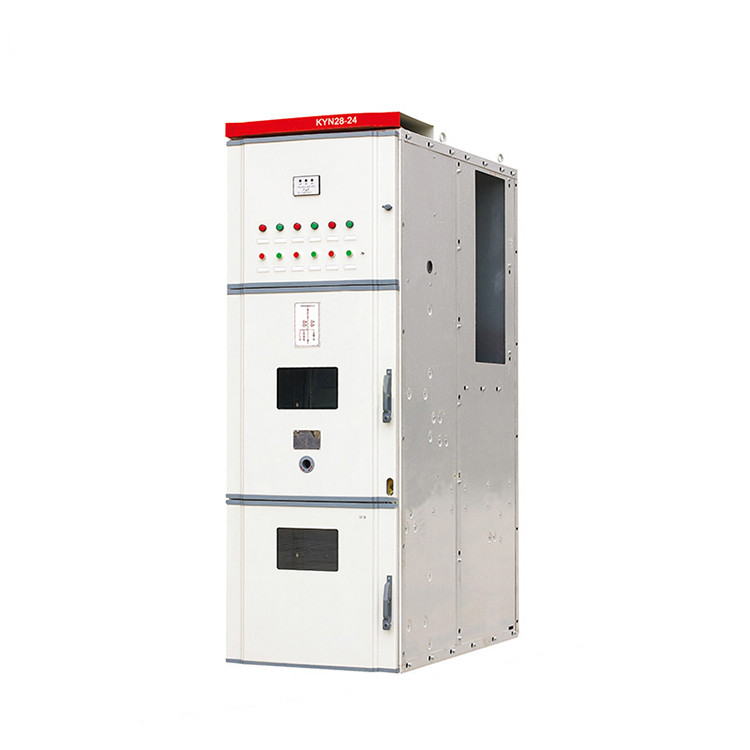

KYN28A-24 high and low voltage switchgear is a new type of switchgear designed and developed by our company, which is used in the power distribution device of three-phase 24KV bus and single bus system. It has the characteristics of small footprint and compact structure design. Suitable for high altitude, full of air temperature, humidity, creepage and discharge requirements of the three-phase AC power system 50HZ, used to receive and distribute power to control the circuit for detection and protection.

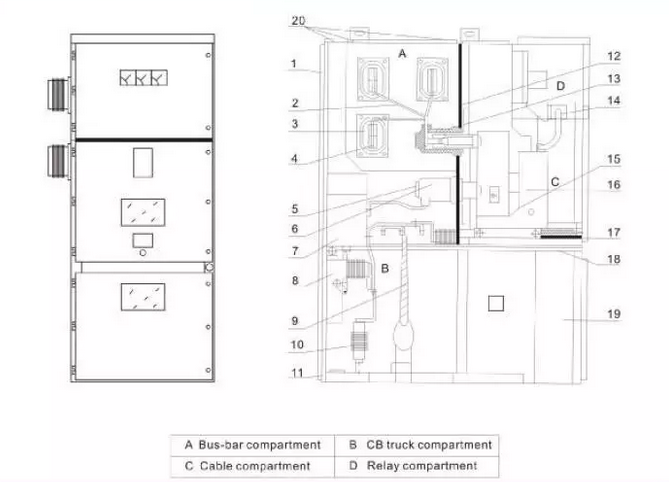

Switchgear

KYN28-24 switchgear panel technical parameter

Item		Unit	Data
Rated voltage		KV	24
Insulation level	Rated power-frequency withstand voltage(1min)	KV	65/79(phase to earth/across open contacts)
Insulation level	Rated lightening impulse withstand voltage	KV	125/145(phase to earth/across open contacts)
Rated frequency		HZ	50/60
Rated main bus bar current		A	630,1250,1600,2000,3150
Rated branching bus bar current		A	630,1250,1600,2000,3150
4s Short-time withstand current(rms.)		KA	16,20,25,31.5
Peak withstand current(peak.)		KA	40,50,63,80
Protection degree			Enclosure:IP4X, Between compartment:IP2X

Feature:

1. The metal-clad fully enclosed structure can prevent dust and small animals from entering.

2. Each compartment in the switchgear is separate and independent of each other.

3. The fast closing grounding switch is used for grounding and provides short-circuit current closing capability.

4. When the door panel is closed, all operations can be performed, including turning on and off the circuit breaker, inserting or pulling out the circuit breaker trolley, and turning on and off the grounding switch.

5. Reliable latch device can effectively prevent misoperation.

6. The VCB trolley is maintenance-free, and the equipped operating mechanism requires very little maintenance. The trolley has good interchangeability and it is very easy to replace the circuit breaker.

7. Through the front and back observation windows on the door panel, you can clearly see the switch status of the circuit breaker, the position of the trolley, the status of mechanical energy storage, the switch position of the grounding switch and the connection status of the cable end.

8. The secondary line is placed in a sufficient line shell, neat and easy to check.

9. The reliable five-prevention interlock can effectively prevent misoperation and entry into the energized carriage.
