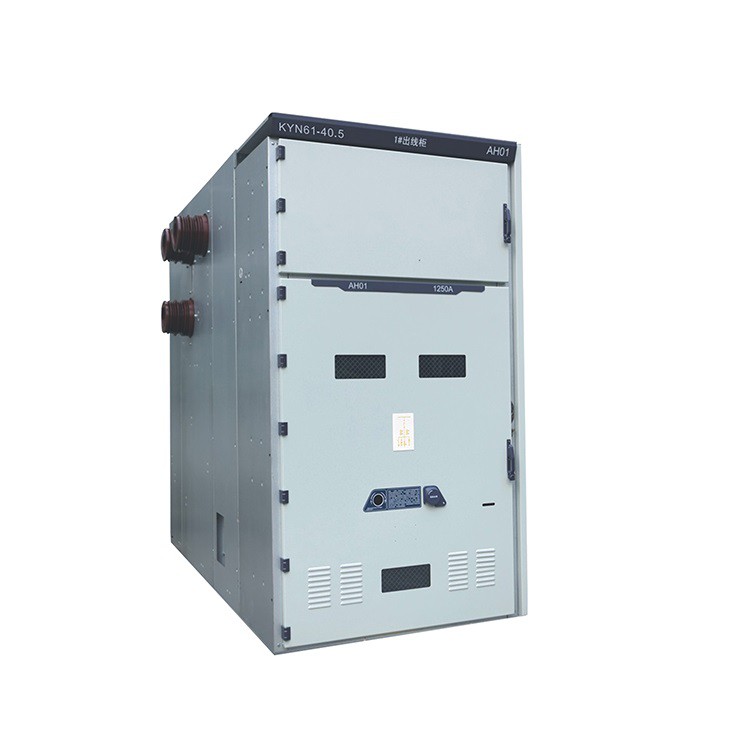

35kv Switchgear
35kv Switchgear KYN61-40.5 AC metal-enclosed switchgear, its main feature is that the cabinet is equipped with a fully insulated vacuum circuit breaker and a spring operating mechanism, and the cabinet body is assembled with steel plate spraying, which improves the accuracy. The design of the...
Description
35kv Switchgear
KYN61-40.5 AC metal-enclosed switchgear, its main feature is that the cabinet is equipped with a fully insulated vacuum circuit breaker and a spring operating mechanism, and the cabinet body is assembled with steel plate spraying, which improves the accuracy. The design of the handcart and the cabinet makes the pushing and pulling of the handcart very light and highly interchangeable. Beautiful appearance, complete procedures, safe and reliable use.
Brand:Fengyuan Power
Item NO.:KYN61
MOQ:1
Payment: FOB, C&F, CIF, etc.
Product Origin:Henan,China
Color:Any, accept customization
Shipping Port: Qingdao Port, Shanghai Port, etc.
Lead Time: 30 days
| NAME | UNIT | DATA | |
| Rated voltage | kV | 40.5 | |
| Rated current | Rated current of main busbar | A | 630/1250/1600 |
| Rated current of the mating circuit breaker | A | 630/1250/1600 | |
| Rated insulation level | 1min frequency withstand voltage, inter-pole, inter-pole/inter-break | kV | 95/110 |
| Lightning surge withstand voltage (peak), inter-pole, inter-pole/inter-break | kV | 185/215 | |
| Frequency withstand voltage of auxiliary circuit and control circuit | V/min | 2000 | |
| Rated frequency | Hz | 50/60 | |
| Rated short-circuit breaking current | kA | 20/25/31.5 | |
| Rated short-time withstand current/rated short-circuit duration | kA/4s | 20/25/31.5 | |
| Rated peak withstand current | kA | 50/63/80 | |
| Rated short-circuit closing current | kA | 50/63/80 | |
| Control circuit rated voltage | V | DC 110/220, AC 110/220 | |
| Protection level(IP) | Switchgear enclosures | IP4X | |
| Compartment (when cabinet door is open) | IP2X | ||
Factory showing room
Certificates
The best choice for the electrical industry! ! !
Please leave an inquiry for more detailed information about prices, packaging, shipping and discounts.
