KYN28A-12 armored metal sealed high voltage switchgear cabinet device is a indoor complete set 3 phase AC power distribution device with rated voltage 3.6~12KV. The switch cabinet is made consists of two parts: fixed cabinet and withdrawable part(handcart). The enclosure and partition plates of all functions are bolted aluminum and zinc coated steel plates. The protection grade of cabinet enclosure is IP4X, the compartment is IP2X.

Range of application:

The electrical switchgear is suitable for power distributions of power plants, power systems, power grid and industrial and mining companies' substations. Also applicable for frequently started high voltage motors.

Technical features:

The switch cabinet meets the requirements of GB3906、DL404、IEC-298 standards. It has"five-preventing" functions: faulty operation preventing circuit breaker, on-load withdraw preventing handcart, live close preventing grounding switch, power distribution preventing when the grounding switch is in earthing position, faulty entering live compartment preventing.

Main technical parameters:

Working conditions:

Installation method: Indoor.

Ambient temperature: highest +40℃ lowest -15℃.

Relative humidity: daily average value does not exceed 95%, monthly average value does not exceed 90%.

Altitude: no more than 1000M.

Saturated vapor pressure: the daily average value is not more than 2.2×10-3 MPa, and the monthly average value is not more than 1.8×10-3 MPa.

Earthquake intensity: no more than 8.

No fire, explosion hazard; no serious pollution, chemical corrosion and vibration.

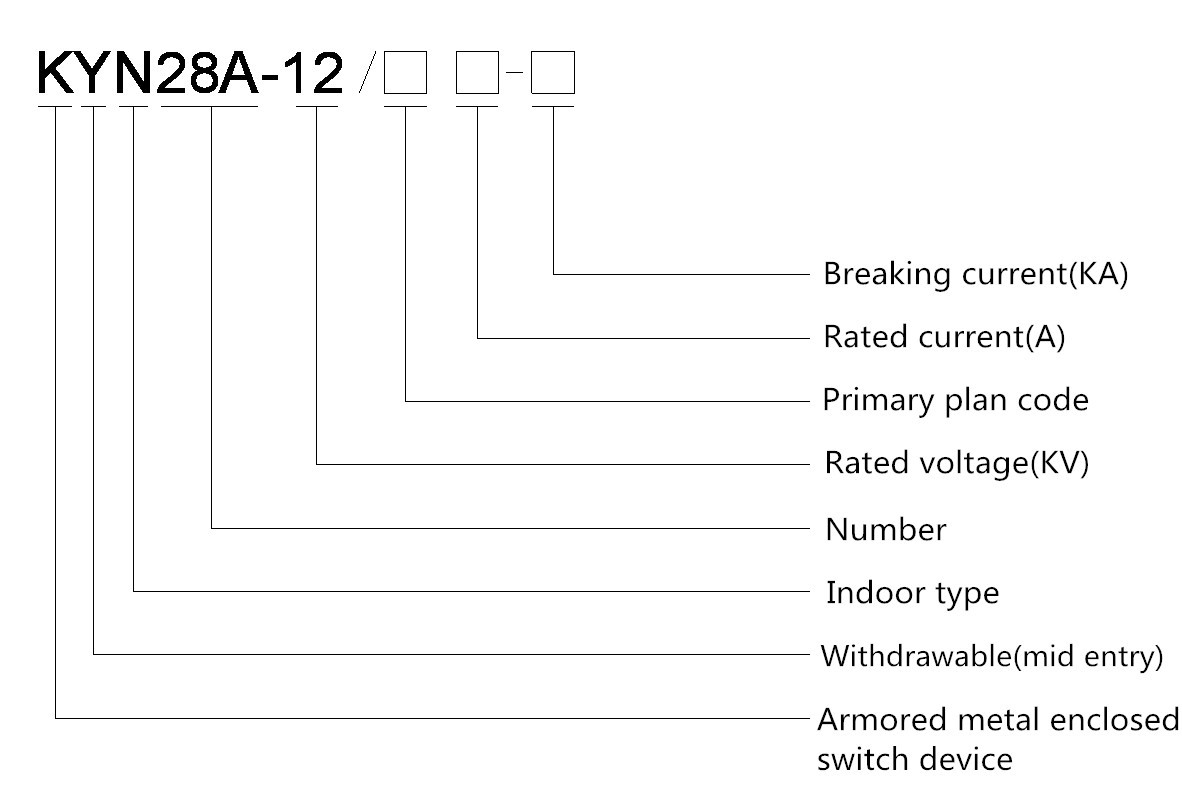

Model meaning:

Ordering instructions:

User shall provide following documents before ordering:

Main wiring schemes and single line systematic diagram,

Switch cabinets layout diagram,

Secondary wiring schematic diagram, terminal diagram,

Main components type, specifications and quantity,

Bus bar type, material, cabinet color,

If bus bar bridge is required, please provide brand and corresponding documents,

Spare parts list and quantity,

For special service condition please notify before ordering.
