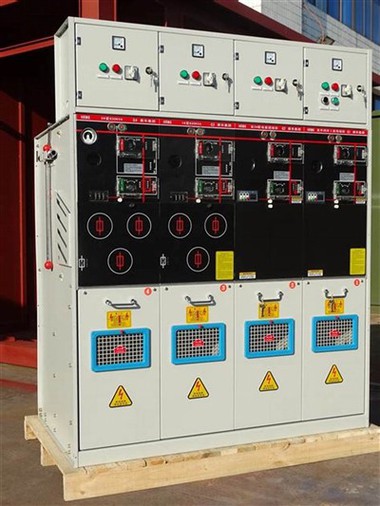

RMU Electrical Switchgear 33KV GIS SF6 Gas Insulated Switchgear

RMU electrical switchgear 33KV GIS SF6 gas insulated switchgear









Ring main unit (RMU) is generally divided into two types: air insulation and SF6 insulation. It is used for breaking load current, breaking short-circuit current, and transformer no-load current, as well as charging current for overhead lines and cable lines at a certain distance. It plays a control and protection role and is an important switchgear for RMU power supply and terminal power supply. In the cabinet, load switches equipped with air insulation mainly include gas production type, compressed air type, and vacuum type. Load switches equipped with SF6 insulation are SF6 type. Due to the SF6 gas being enclosed in the shell, the partition fracture formed by it is not visible. The load switch in the ring main cabinet generally requires three positions, namely cutting off the load, isolating the circuit, and possibly relying on grounding. The gas generation, compressed air, and SF6 load switches are easy to achieve three positions, while the vacuum arc extinguishing chamber can only be disconnected and cannot be isolated. Therefore, a separate switch is usually added to the vacuum load ring network switchgear before the load switch to form an isolation break.



The "Five Prevention" of High Voltage Switchgear

1. After the vacuum circuit breaker car inside the high-voltage switchgear is closed in the test position, the car circuit breaker cannot enter the working position. (Prevent load closing) switchgear

2. When the grounding knife in the high-voltage switchgear is in the closed position, the car circuit breaker cannot be closed. (Prevent closing with grounding wire)

3. When the vacuum circuit breaker inside the high-voltage switchgear is closed, the back door of the cabinet is locked with the mechanical device on the grounding knife. (To prevent accidental entry into charged intervals)

4. The vacuum circuit breaker inside the high-voltage switchgear is closed during operation, and the grounding knife cannot be put into operation. (Prevent live hanging of grounding wires)

5. The vacuum circuit breaker inside the high-voltage switchgear cannot exit the working position of the car circuit breaker when it is in operation and closed. (Prevent loaded knife switch)

Ring main unit (RMU) is an electrical equipment consisting of a group of high-voltage switchgear installed in a steel plate metal cabinet or made into a modular interval type RMU power supply unit. Its core part uses load switches and fuses, which have the advantages of simple structure, small size, low price, improved power supply parameters and performance, and power supply safety. It is used in distribution stations and box type substations in urban residential communities, high-rise buildings, large public buildings, factories and enterprises, and other load centers.



Environmental Conditions

(1) Suitable Altitude: ≤2000mSuitable

(2) Temperature: -40℃ ~ +55℃Relative

(#) Humidity: Daily mean ≤95%, monthly mean ≤90%

(4) Gradation of Earthquake Damage: ≤ Level 8



























Q5 : Is OEM/ODM available?

A: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.

Q6 : You are manufacturer or trading company?
A: We are factory, As a 100% professional manufacturer with 20 year's manufacturer experience, we could produce products according to customers' requirements and we could also control the quality of products 100%.

Q7 : Can the price be negotiated?

A: Yes, the price is negotiable. It can be changed according to your quantity or package

Q8 : How about inspection?

A: We have the whole inspection system from raw material to end products include temperature rise test,salt spraying test conductor type test,mechanical life test.

Q9 : What is payment terms?

A: T.T, Paypal,Western Union,Alibaba trade assurance and L/C is acceptable. 30% T/T in advance ,70% balance before shipment.

Q10 : What is the service offered by company?

A: We have the professional engineer team which can design and develop the mold to arrive different customer requirement.

We also have the sales team to offer good service from pre-sale to after-sale.



This product is usually customized.
We are a manufacturer and have a professional technical department that can design and provide solutions according to customer needs.
Please click on the button below to send us the information, and our sales personnel will contact you to provide you with the design drawings



Here are our customer examples for your reference

Uzbekistan client

Datasheet

1.1	710-512-01-MVS1 Main Substation
	Incoming Switchgear	A01 B01	2
No	Components	Specification	Unit	Qty	Maker
1	VCB	HVX12-50-31-F 275mm Altitude ≤2000m Opening voltage DC220V Closing voltage DC220V Energy storage voltage DC220V	Set	1	China
2	VT	JDZ-10 10KV/√3/0.1KV/√3	Set	3	China
3	CT	LZZBJ9-12 3000/1A 5P20 10VA 5P20 5VA 5Fs5 5VA	Set	3	China
4	High voltage fuse	XRNP1-12 0.5A	Pc	3	China
5	Lightning arrester	HY5WZ-17/50	Set	3	China
6	Intelligent control panel	WY-9008A	Pc	1	China
7	Short circuit and ground fault indicator	EKL-4-1	Pc	1	China
8	Multifunctional electric instrument	PD666-3S3 380V 5A	Pc	1	China
9	Primary harmonic eliminator	LXQ-12KV	Pc	1	Fengyuan
10	Charged display	DXN-12Q	Pc	1	China
11	Temperature and humidity controller	WY-CS-III	Pc	1	China
12	Connecting piece	JY-2	Pc	3	China
13	Junction box	PJ1	Pc	1	China
14	Metering bracket	Universal type	Pc	1	China
15	Signal lamp	ND16-22D/4 AC380V red	Pc	1	CHNT
16	Signal lamp	ND16-22D/4 AC380V green	Pc	1	CHNT
17	Signal lamp	ND16-22D/4 AC380V white	Pc	1	CHNT
18	AC miniature circuit breaker	NB1-63/2P C6A 6kA(R)	Pc	2	Fengyuan



IF NEED MORE DETAILES,PLEASE FEEL FREE YO CONTACT US
