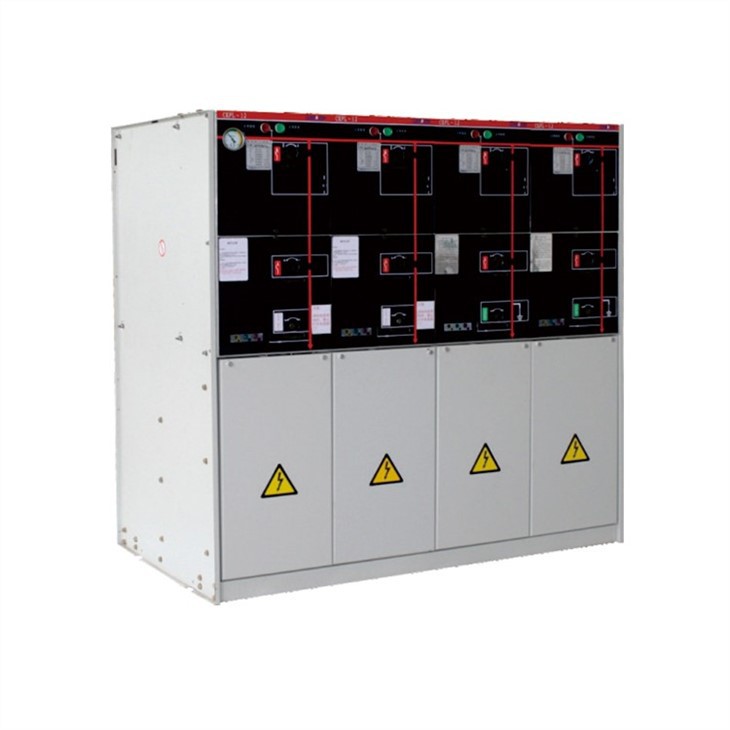

Compact Gas Insulated Switchgear

Compact Gas Insulated Switchgear adopts modular design. Its design and manufacture have fixed and flexible scalability, which can meet the needs of users or network nodes, and meet the needs of various power distribution exchange stations, box-type substations and cable branch boxes. It has the characteristics of compact structure, safety and reliability, long life and maintenance-free.

Specifications

SF6 inflation pressure: 0.4bars inflation pressure (at 20℃)

Annual leakage rate: 0.5‰ per year

Water immersion test: 0.3bars / 24h

Arc test: 20kA/1s (arc extinguisher), 16kA/hour (without arc extinguisher)

Protection level: SF6 inflatable tank IP67

Fuse holder IP67

Busbar: 400mm²Cu;

Grounding bar (external): 160mm²Cu;

Ground rod bolt size: M10;

Material used in the tank structure: 3.0mm stainless steel sheet.

Certificate:

Our Service:

We supply what customers need and provide the best service for them.In addition,honesty is also our basic company value as well.

We are always at your service,any question please feel free to contact us.

FAQ:

(1). How to order?

A: Send the inquiry with your technical data or tell me your application. We can make recommendation.

(2). What is lead time and shipment?

A: Shipment term can be FOB, CIF, CIP. Lead time of products is 3-10 days, if special need, L/T is discussed case by case.

(3).How to pay?

A: By T/T, L/C, western union.
