33kV Gas Insulated Ring Main Unit

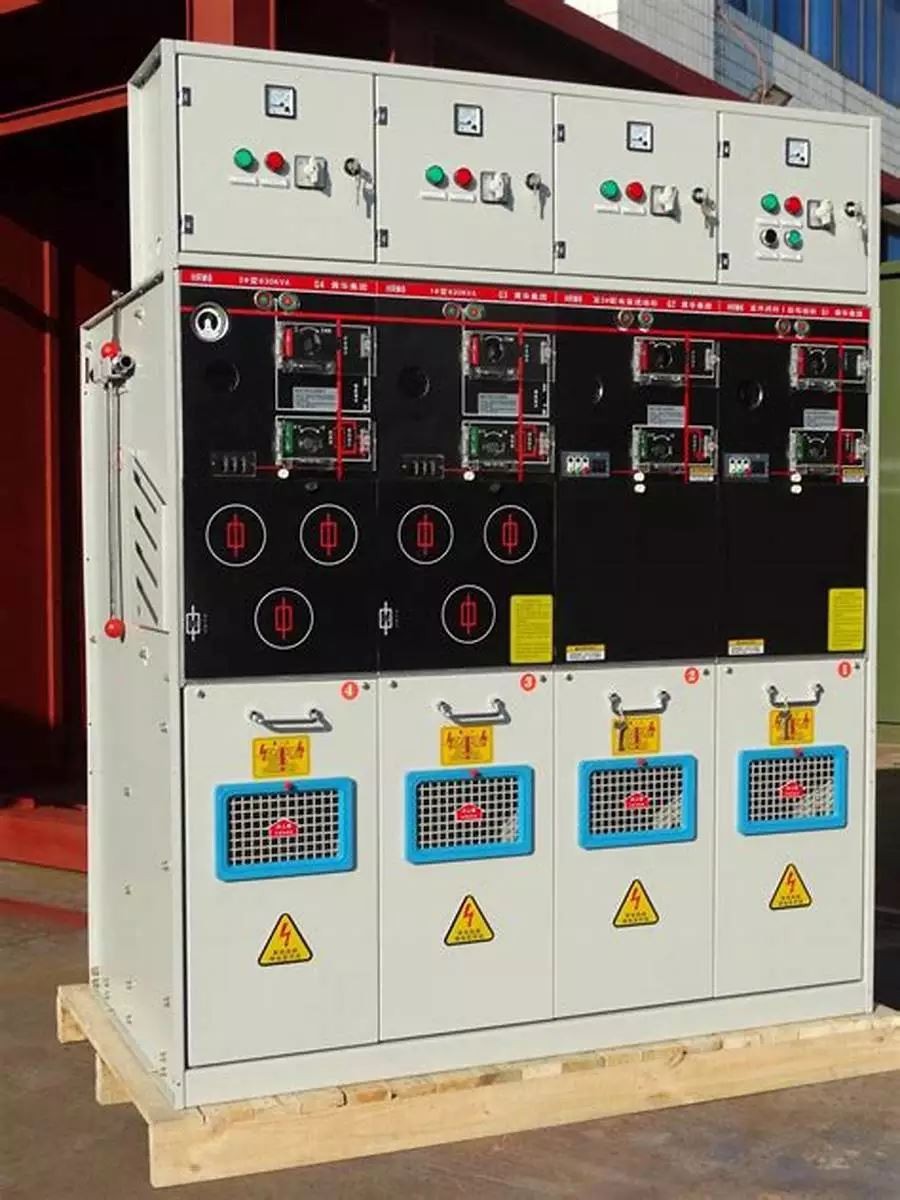

33kv Gas Insulated Ring Main Unit The gas-insulated ring-ring network cabinet is composed of standard functional units, which are processed by the factory, using the technologically advanced FLN36-12/24 load disconnect switch, and the excellent performance of SF6 gas as the arc suppression...
Description
33kv Gas Insulated Ring Main Unit
The gas-insulated ring-ring network cabinet is composed of standard functional units, which are processed by the factory, using the technologically advanced FLN36-12/24 load disconnect switch, and the excellent performance of SF6 gas as the arc suppression insulating medium. The cabinet is small in size, reasonable and compact, easy to install, simple to operate, safe and stable, and has been widely recognized in power supply systems such as 10KV or 24KV.
Technical parameters
Serial No. | Item | Unit | parameters | |
1 | Rated voltage | KV | 12, 24, 33,40.5KV | |
2 | Rated current | A | 630 | |
3 | Rated frequency | Hz | 50 | |
4 | Rated short time withstand current | KA | 20 | |
5 | Rated short circuit duration | S | 4 | |
6 | Rated withstand current (peak) | KA | 50 | |
7 | Rated short circuit duration of grounding switch | S | 4 | |
8 | Rated short withstand current (peak) of grounding switch | KA | 50 | |
9 | Rated insulation level | 1min power frequency withstand voltage (effective value) | KV | (phase-phase, phase-earth)42; (fracture) 48 |
Lightning impulse withstand voltage (peak) | KV | phase-phase, phase-earth)75; (fracture) 85 | ||
10 | Rated SF6 pressure (20°C gage pressure0 | Mpa | 0.04 | |
11 | SF6 leakage rate per year | 1% | ||
