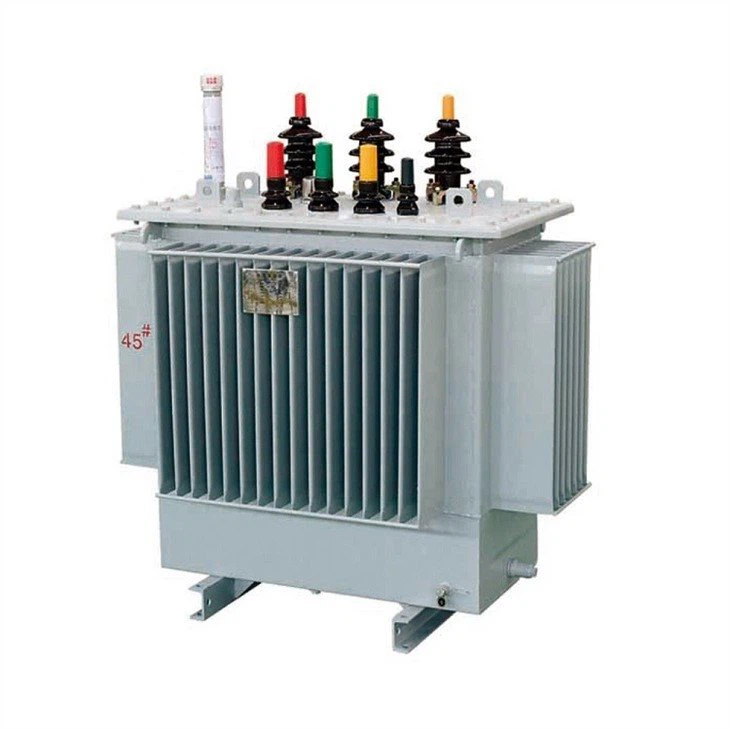

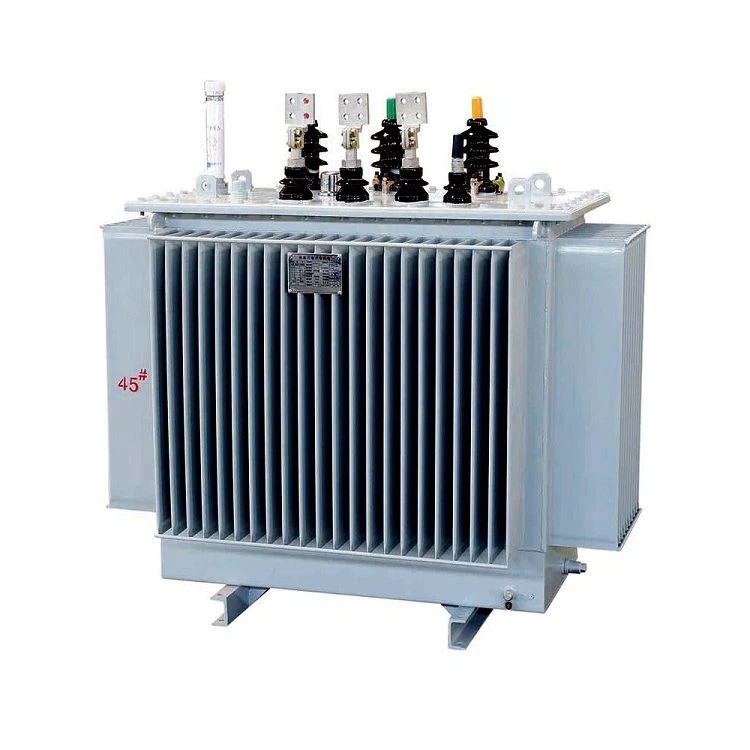

Three-phase Oil-filled Transformer
Oil-immersed transformer is a new high-performance transformer with a more reasonable structure and better performance. Stable performance, low loss and low noise. Oil-immersed transformers are mostly suitable for power grid transformation of urban and rural, industrial and mining enterprises. Suitable for combined transformers and pre-installed substations.
Description
The three-phase oil-filled transformer adopts a new type of insulation structure with strong short-circuit resistance. The iron core is made of high-quality cold-rolled silicon steel plate. The high-voltage winding group is composed of high-quality oxygen-free copper wire and adopts a multi-layer drum structure. All fasteners are specially treated to prevent loosening.
Technical parameters:
Rated Capacity | Voltage Combination | Winding Connection Grade | No-load Loss (W) | Load Loss (W) | Short Circuit Impedance (%) | No-load Current (A) | ||
High Voltage (kV) | Tapping Range Of High Voltage (%) | Low Voltage (kV) | ||||||
30 | 6 6.3 6.6 10 10.5 11 | ±5 ±2×2.5 | 0.4 | Dyn11 | 100 | 630 | 4.0 | 1.8 |
50 | 130 | 910 | 1.6 | |||||
63 | 150 | 1090 | 1.5 | |||||
80 | 180 | 1310 | 1.5 | |||||
100 | 200 | 1580 | 1.4 | |||||
125 | 240 | 1890 | 1.4 | |||||
160 | 280 | 2310 | 1.3 | |||||
200 | 340 | 2730 | 1.2 | |||||
250 | 400 | 3200 | 1.1 | |||||
315 | 480 | 3830 | 1.1 | |||||
400 | 570 | 4520 | 1.0 | |||||
500 | 680 | 5430 | 1.0 | |||||
630 | 810 | 6200 | 4.5 | 0.9 | ||||
800 | 980 | 7500 | 0.8 | |||||
1000 | 1150 | 10300 | 0.8 | |||||
1250 | 1360 | 12000 | 0.7 | |||||
1600 | 1640 | 14500 | 0.6 | |||||
2000 | 1940 | 18300 | 0.6 | |||||
2500 | 2290 | 21200 | 0.5 | |||||
Normal working conditions of oil-immersed transformers:
1. Indoor or outdoor altitude does not exceed 1000m
2. The highest ambient temperature +40℃ The highest daily average temperature +30℃
3. The highest annual average temperature is +20℃, the lowest temperature is -25℃
4. According to user requirements, transformers operating under special conditions can be provided.
Products Detail
Our Factory
Certificates
Customer visit
Order notice
1. Rated capacity
2. High and low voltage rated voltage
3. Connection group label
4. Short circuit impedance
5. Tap range
6. Frequency
7. Other special requirements.
