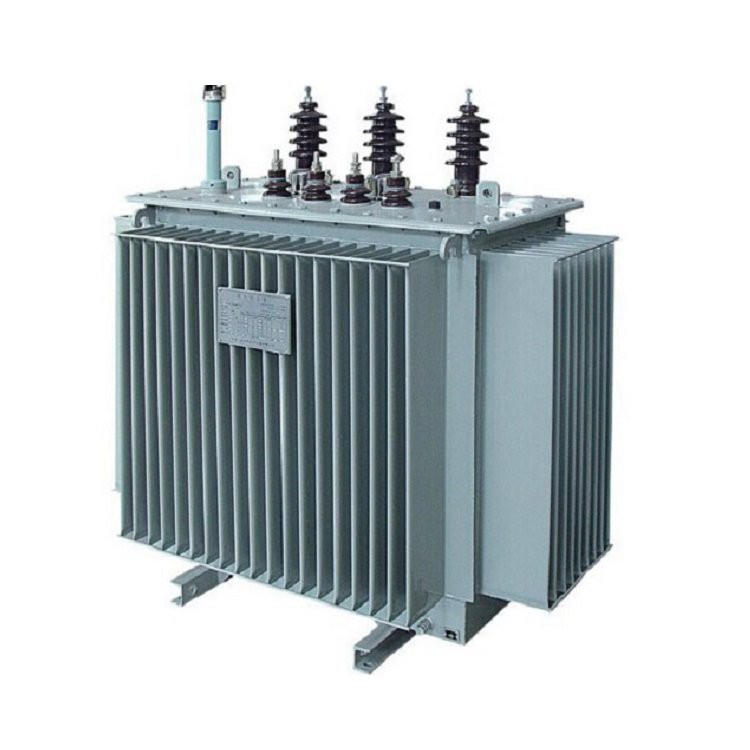

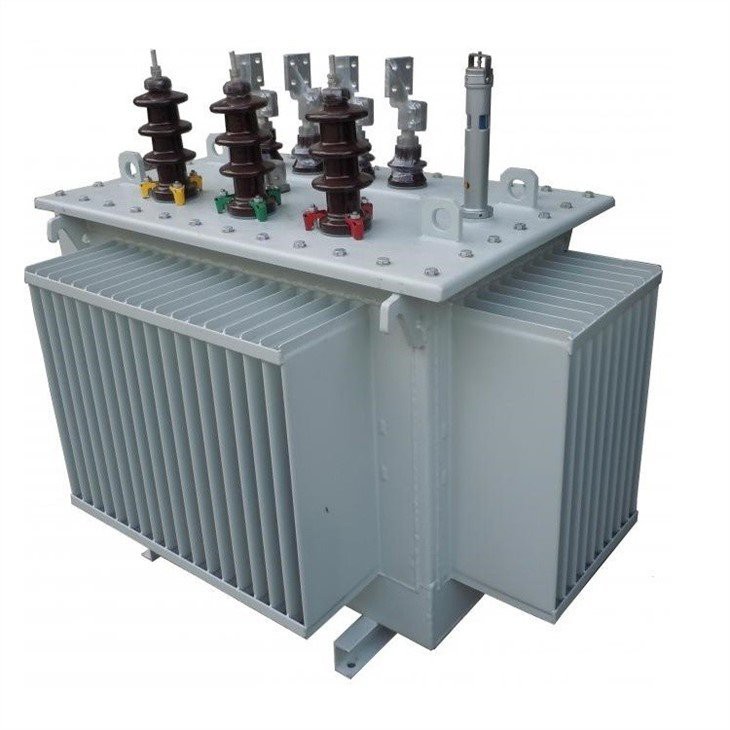

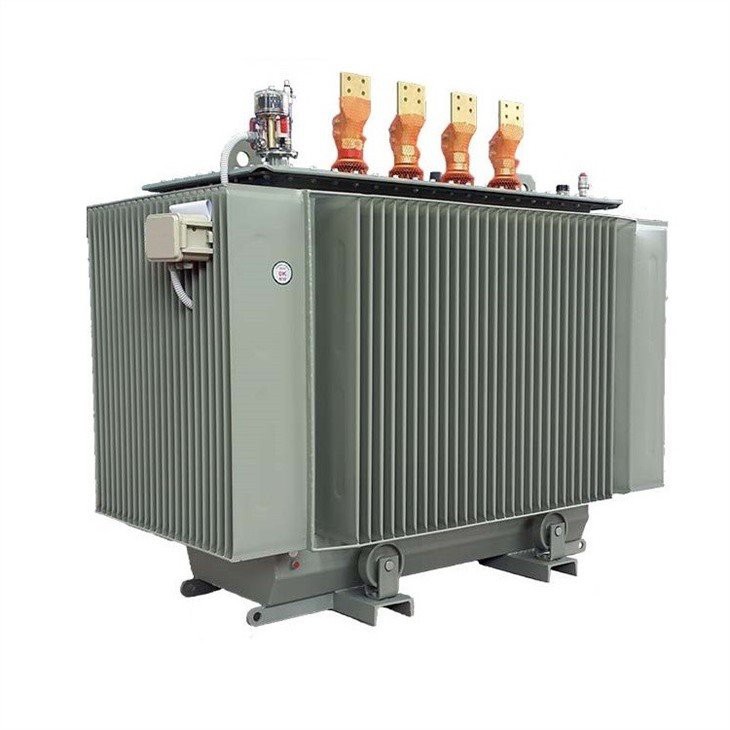

Outdoor Oil Immersed Transformer

Outdoor Oil Immersed Transformer

Capacity: 0.5KVA-1000KVA

Input voltage: 380V

Output voltage: 415V 400V 380V 220V 200V 127V 110V 100V 48V 36V

Voltage variation rate: ±1%

Output waveform distortion: no distortion (compared with input waveform)

Insulation class: Class B, Class F, Class H (normally Class H), temperature resistance 180°

Applicable frequency: 50/60Hz

Noise: ≤35dB (within one meter)

Temperature rise: ≤80K

Insulation resistance: ≥50MΩ

Dielectric strength: 3000VAC/1min

Working environment: Temperature: -20～+50℃ Humidity: ≤95%RH non-condensing

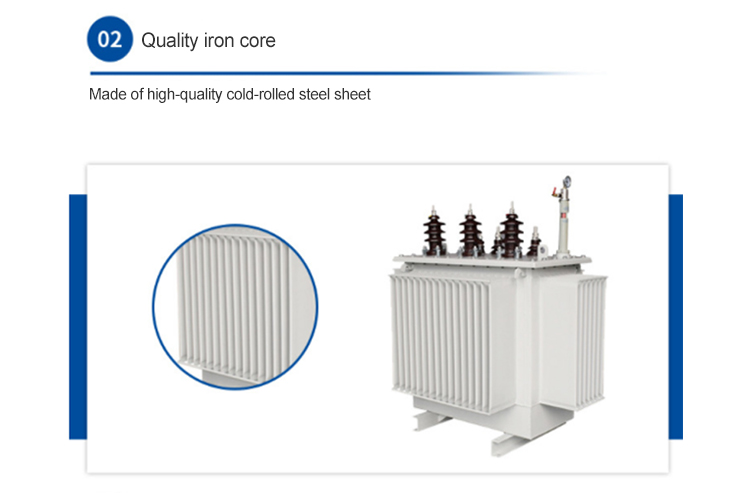

The outdoor oil immersed transformer is a new type of fully sealed energy-saving product. The iron core is made of high-performance grain-oriented silicon steel sheet, multi-stage stepped section, core structure, reducing iron core materials, and reducing no-load loss by 20-30% compared with S9 transformers of the same capacity, achieving energy saving and consumption reduction. The coil is made of high-quality oxygen-free copper magnet wire, layered cylindrical structure, high and low voltage coils are wound, and the layers are made of prismatic glue paper. After the body is dried, the coil is compacted into a whole, which improves the mechanical strength and short-circuit resistance of the coil. The fuel tank adopts a fully sealed corrugated fuel tank with reasonable structure, beautiful appearance, small size and maintenance-free.

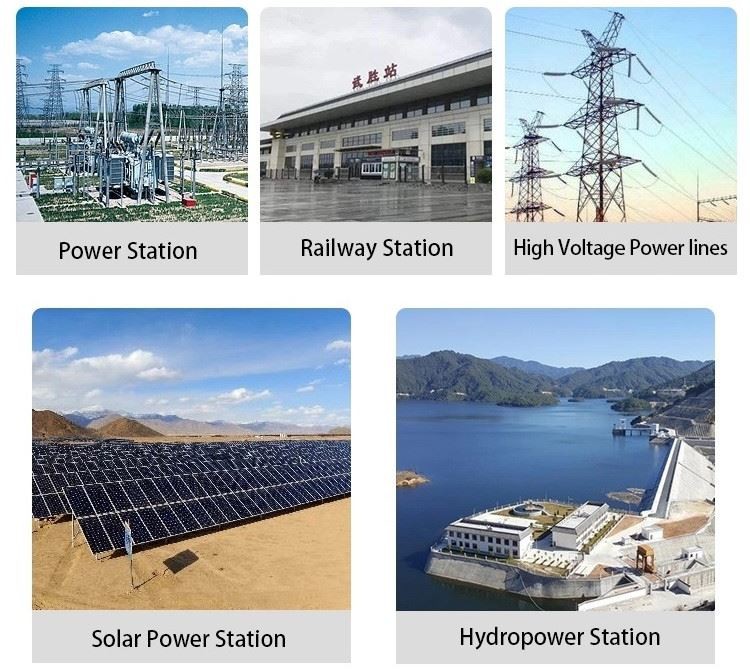

Scope of application
