11KV 3 PHASE OIL IMMERSED DISTRIBUTION TRANSFORMER
Oct 26, 2022
11KV 3 PHASE OIL IMMERSED DISTRIBUTION TRANSFORMER

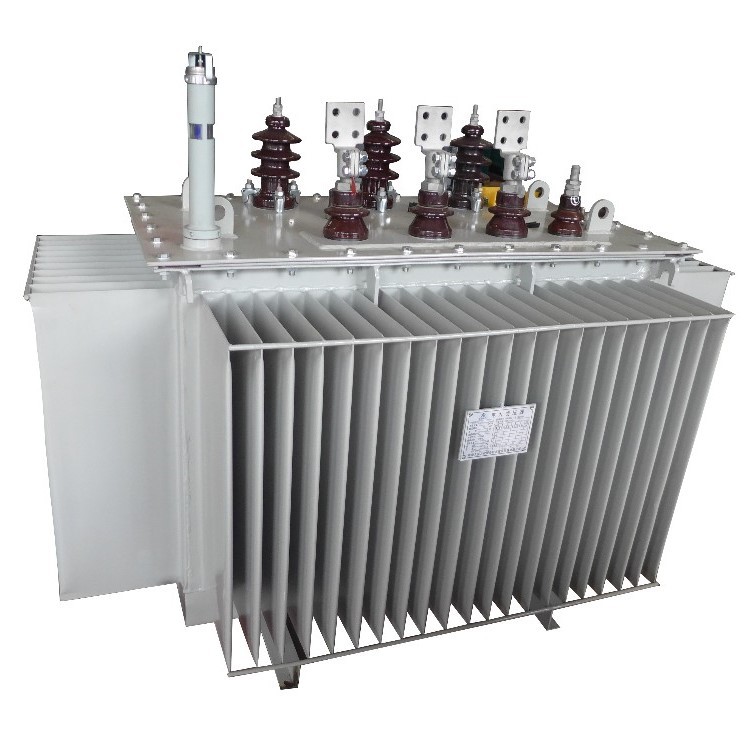

The performances of model H59 22kv series full-sealed oil-immersed distribution transformes conform to Standards IEC. Its core is made of quality cold-rolled silicon sheet and is of a full-miter non-puncture structure and its coil is made of quality oxygen-free copper.
Main Functions And Features

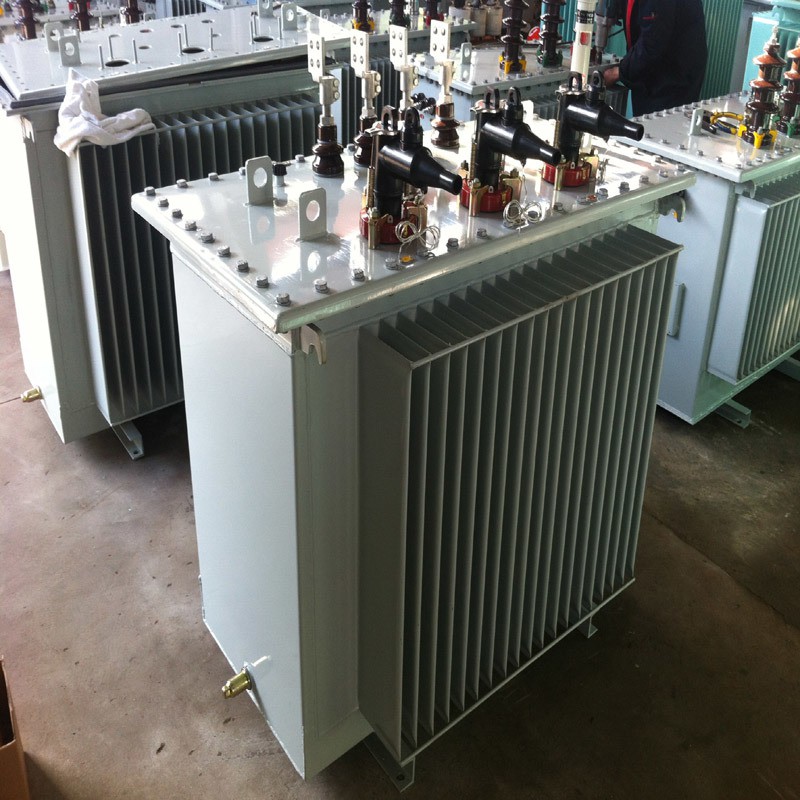

It adopts radiator oil tank of corrugated shteet type or expansion type. As it doesn't need oil conservator, the height of transformer is reduced, and as the transformer oil doesn't contract with air, the oil ageing is retarded, thus prolonging the service life of transformer.
Main Technical Parameters for H59 Series three-phase full-sealed non-excitaiton-tap-changing distribbution transformer | ||||||||||||
Rated | High | H.V.Tap | Low | Connection | Short | No-load loss(W) | On-load loss(W) | No load | ||||
H59 | H60 | H61 | H59 | H60 | H61 | |||||||
30 | 22 | ±5% | 0.4 | Dyn11 | 4 | 130 | 110 | 100 | 600 | 600 | 600 | 2.1 |
50 | 170 | 150 | 130 | 870 | 870 | 870 | 2 | |||||
63 | 200 | 180 | 150 | 1040 | 1040 | 1040 | 1.9 | |||||
80 | 250 | 200 | 180 | 1250 | 1250 | 1250 | 1.8 | |||||
100 | 290 | 230 | 200 | 1500 | 1500 | 1500 | 1.6 | |||||
125 | 340 | 270 | 240 | 1800 | 1800 | 1800 | 1.5 | |||||
160 | 400 | 310 | 280 | 2200 | 2200 | 2200 | 1.4 | |||||
200 | 480 | 380 | 340 | 2600 | 2600 | 2600 | 1.2 | |||||
250 | 560 | 460 | 400 | 3050 | 3050 | 3050 | 1.2 | |||||
315 | 670 | 540 | 480 | 3650 | 3650 | 3650 | 1.1 | |||||
400 | 800 | 650 | 570 | 4300 | 4300 | 4300 | 1 | |||||
500 | 960 | 780 | 680 | 5150 | 5150 | 5150 | 1 | |||||
630 | 4.5 | 1200 | 920 | 810 | 6200 | 6200 | 6200 | 0.9 | ||||
800 | 1400 | 1120 | 980 | 7500 | 7500 | 7500 | 0.8 | |||||
1000 | 1700 | 1320 | 1150 | 10300 | 10300 | 10300 | 0.7 | |||||
1250 | 1950 | 1560 | 1360 | 12000 | 12000 | 12000 | 0.6 | |||||
1600 | 2400 | 1880 | 1640 | 14500 | 14500 | 14500 | 0.6 | |||||
2000 | 5 | 2830 | 2270 | 1940 | 17140 | 17140 | 17140 | 0.6 | ||||
2500 | 3350 | 2690 | 2300 | 20260 | 20260 | 20260 | 0.5 | |||||
FAQ
Q5 : Is OEM/ODM available?
A: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.
Q6 : You are manufacturer or trading company?
A: We are factory, As a 100% professional manufacturer with 20 year's manufacturer experience, we could produce products according to customers' requirements and we could also control the quality of products 100%.
Q7 : Can the price be negotiated?
A: Yes, the price is negotiable. It can be changed according to your quantity or package
Q8 : How about inspection?
A: We have the whole inspection system from raw material to end products include temperature rise test,salt spraying test conductor type test,mechanical life test.
Q9 : What is payment terms?
A: T.T, Paypal,Western Union,Alibaba trade assurance and L/C is acceptable. 30% T/T in advance ,70% balance before shipment.
