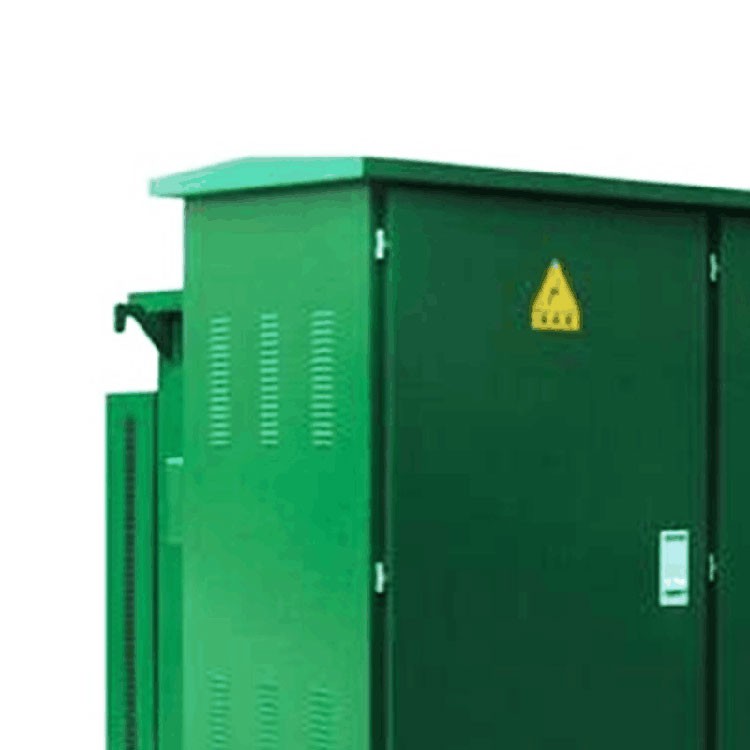

ZGS11 Box Type Transformer

Combined transformer is a kind of transformer body, switch equipment, fuse, tap switch and related auxiliary equipment combined transformer, high voltage wiring scheme has terminal type, ring network type, can adapt to the requirements of various power supply systems. Moreover, it has the advantages of compact structure, small volume, saving occupation, less investment and fast installation. It can be used both indoors and outdoors. It is widely used in residential areas, airports, high-rise buildings, commercial centers, factories and mines, enterprises, hospitals, schools and other places. It can penetrate into the load center to the greatest extent and improve the quality of power supply. And can meet the user's electric energy measurement, reactive power compensation, low voltage shunt and other requirements, easy to use and flexible.

Product parameters

Rated capacity: 30-2500kVA,

Rated frequency: 50/60Hz

Voltage level: 10/20/35KV

Product features

1. Fully insulated structure and interlocking device to ensure personal safety;

2. Fully sealed structure, eliminate oil deterioration, prolong service life;

3. The load switch has the characteristics of three-phase linkage, which effectively reduces the ferromagnetic resonance;

4. Double fuse protection, to ensure the system is simple, convenient, economic, reliable and safe operation;

5. Silicon steel sheet iron core, amorphous alloy iron core, coil iron core, low loss, low noise, no heat box;

6. The high voltage incoming line adopts elbow-type cable plug, which can operate 200A load current. In case of emergency, it can be used as load switch and has the characteristics of isolation switch.

7. Small size, only about 1/3 of the same capacity of European boxes. Product features

1. Fully insulated structure and interlocking device to ensure personal safety;

2. Fully sealed structure, eliminate oil deterioration, prolong service life;

3. The load switch has the characteristics of three-phase linkage, which effectively reduces the ferromagnetic resonance;

4. Double fuse protection, to ensure the system is simple, convenient, economic, reliable and safe operation;

5. Silicon steel sheet iron core, amorphous alloy iron core, coil iron core, low loss, low noise, no heat box;

6. The high voltage incoming line adopts elbow-type cable plug, which can operate 200A load current. In case of emergency, it can be used as load switch and has the characteristics of isolation switch.

7. Small size, only about 1/3 of the same capacity of European boxes.
