22/0.4KV 3000KVA Transformer Mini Substation

Name: China Customized 22/0.4KV 3000KVA Transformer Mini Substation Manufacturers, Suppliers - FENGYUAN
Brand: FENGYUAN
SKU: 191902803

Box-type substation, also known as pre-installed substation. It is a kind of high-voltage switch gear, distribution transformer and low-voltage power distribution device.It is a kind of factory prefabricated indoor and outdoor compact power distribution equipment that is integrated according to a certain wiring scheme. It combines the functions of transformer step-down and low-voltage power distribution organically. Which is installed in a steel structure box that is moisture-proof, rust-proof, dust-proof, rodent-proof, fire-proof, anti-theft, heat-insulated, fully enclosed and movable.It is especially suitable for urban network construction and renovation.It is a new type substation after the civil construction substation. The box-type substation is suitable for mines, factories, oil and gas fields and wind power stations. It replaces the original civil power distribution room and substation and becomes a new type of transformer distribution equipment.Box-type substation is also suitable for residential quarters, urban public, bustling downtown, construction power supply, etc.Users can choose box-type substation according to different usage conditions and load levels.

Send Inquiry

Description

22/0.4KV 3000KVA transformer mini substation

Outdoor Electrical Transformer Substation ,also named as package substation or Kiosk Substation, It mainly has 3 compartments as following:
1.High voltage compartment
2.Transformer compartment
3.Low voltage compartment

we can make this substion as user and customers requirement under their drawing (Single Line Diagram ,SLD ) and need.

HV & LV compartments are with completed function.
H.V.compartment has various of power supply methods when testing power supply in 1 time, it also can be installed with H.V.testing appliances to reach the demand of H.V.testing.

The transformer compartment can be choosed S7 ,S9 or other low loss oil immersed transformer and dry type transformer. The transformer compartment has automatic start wind cooling systems and lighting systems.

Low voltage compartment can be made according to users' need , it adopts fixed or assembled structure to be electrical power supply system,it has many function like light distribution ,power distribution, reactive power ,electrical power testing..etc to improve the power distribution quality and satisfy the user.

This substation body /Enclosure mainly is made in metal material, stainless steel material , non -metal material ...which can be choosed by user and customers

This substation is a very important power distribution and supply unit in the electrical cable power net.it is a kind of completed set of power supply with H.V.controlling,protection and converting ,distribution.. it used in 3 phase AC 50Hz and rated current max 1600KVA transformer.It is widely used in industrial and mining enterprises, residential quarters, hospital, mall, high-rise buildings and other distribution systems.

For this substation, we mainly produce & export 11KV, 15KV,20KV,24KV,33KV .....type.
For customized special type, once we get clear technical data or SLD ,we also can make it .

Working Environment

1 Ambient temperature: -25°C~+40°C
2 Altitude: less than1000m
3 Relative humidity
Daily average less than 95% Average value of water vapor pressure less than 2.2kpa
Monthly average less than 90% Average value of water vapor pressure less than 1.8kpa
4 Seismic intensity:less than magnitude 8

5 Outside wind speed less than 35m/s
6 Apply to the places have no fire,no explosion danger and no chemical corrosion

Technical data

High voltage compartment	item	unit	Parameter
	Rated frequency	Hz	50 /60 Hz
	Rated Voltage	KV	3.3KV , 6.0KV, 6.6KV	10KV 11KV 13.8KV 15KV 20KV 22kv	30KV 33KV 35KV 36KV
	Max service voltage	KV	7.2 KV	12KV , 24KV	40.5KV
	Rated current	A	400, 630, 1000, 1250 ,1600, 2000, 2150,...etc
	Transfer current	A	1200 -3150 A
	1MIN Power frequency withstand voltage , earth -phase	KV	42/48, 85/95
	1MIN Power frequency withstand voltage , phase/fracture
	BIL	KV	75/85, 170/185
	Rated short circuit breaking current	KA	20, 31.5
Transformer compartment	Rated voltage	KV	3.3KV , 6.0KV, 6.6KV	10KV 11KV 13.8KV 15KV 20KV 22kv	30KV 33KV 35KV 36KV
	Rated power capacity	KVA	200 KVA Upto 2.5 MVA
	Tapping range	%	±2 X 2.5% , ±5%
	Vector group		Yyn0, Dyn11
	Short-circuit Impedance	%	4.0 , 4.2, 4.5, 6, 8
Low voltage compartment	rated voltage	V	220, 380, 400, 415, 433, 440, 660, 690,800
	main circuit rated current	A	50 -4000
	branch current	A	5-800
Enclosure	protection level
	HV compartment		IP33, IP65..
	LV compartment		IP33
	Transformer compartment		IP23
	Noise level	dB	≤ 50

Box-type_Substation_10KV

full_seal_box_type_substation_three_phase_type_low_loss_for_residential_area

inside of box substation

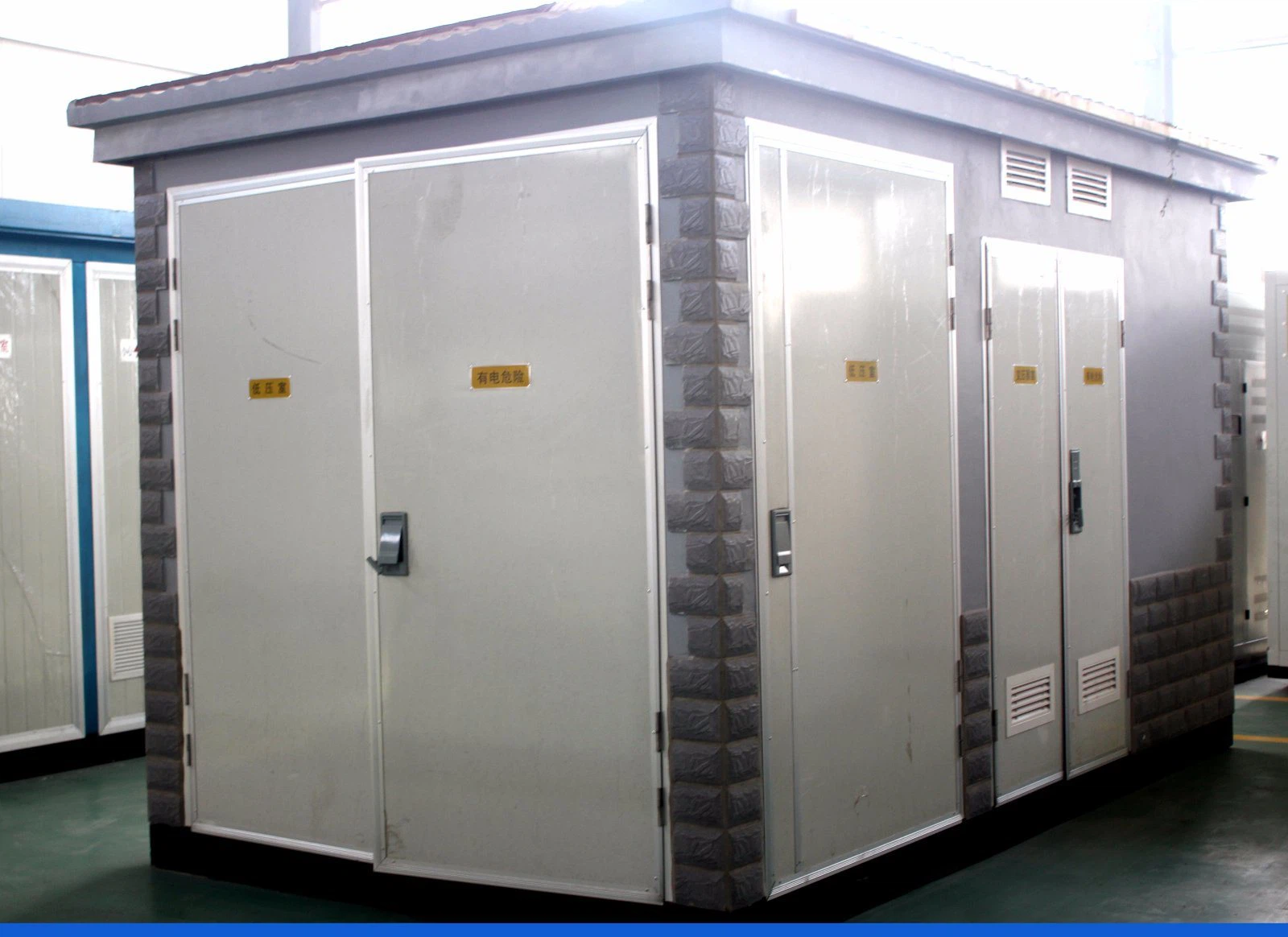

Outdoor-Protection-Box-Type-Compact-Electrical-Substation-Transformer-Substation

pre_fabricated_box_type_substation

substation

FACTORY

production line1

workshop

CERTIFICATE

CQC

EXHIBITION

COMPANY OVERVIEW

FAQ

Q5 : Is OEM/ODM available?

A: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.

Q6 : You are manufacturer or trading company?
A: We are factory, As a 100% professional manufacturer with 20 year's manufacturer experience, we could produce products according to customers' requirements and we could also control the quality of products 100%.

Q7 : Can the price be negotiated?

A: Yes, the price is negotiable. It can be changed according to your quantity or package

Q8 : How about inspection?

A: We have the whole inspection system from raw material to end products include temperature rise test,salt spraying test conductor type test,mechanical life test.

Q9 : What is payment terms?

A: T.T, Paypal,Western Union,Alibaba trade assurance and L/C is acceptable. 30% T/T in advance ,70% balance before shipment.
