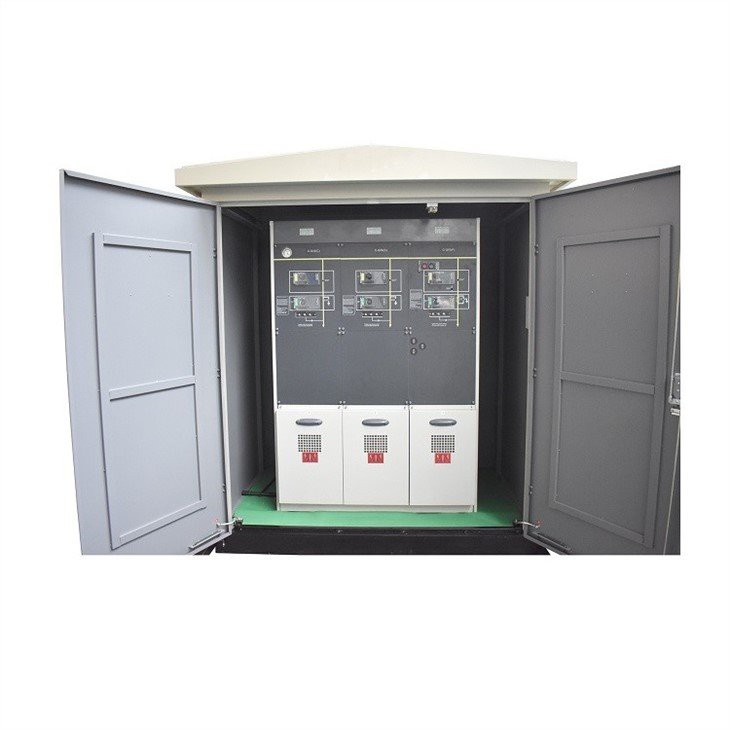

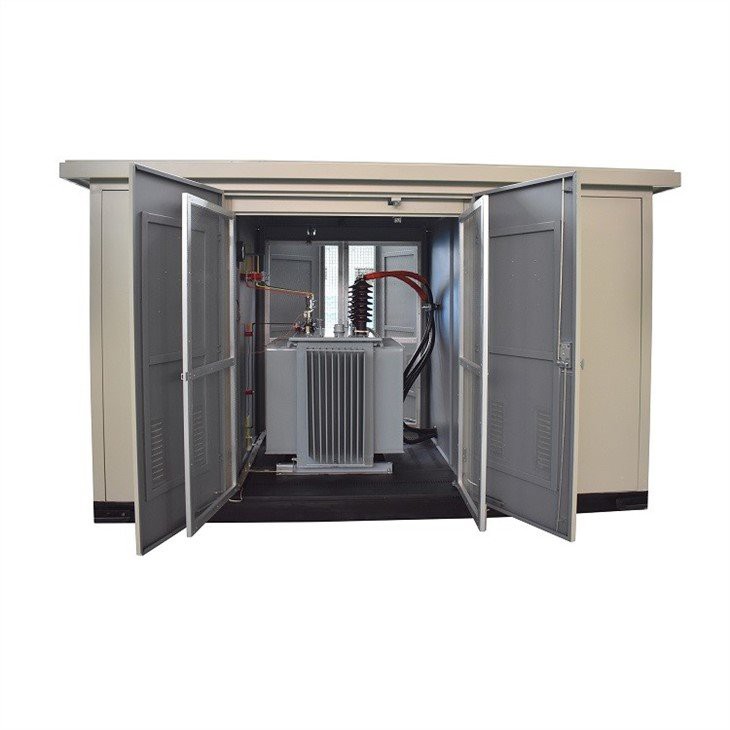

11kv Prefabricated Substation

Box-type substations are suitable for residential areas, urban public transformations, prosperous urban areas, and building electricity. Users can choose box type changes according to usage conditions and load levels. Since the advent of the box-type substation, it has developed very rapidly. In developed countries, 70% of distribution transformers have been developed, while the United States has accounted for 90%. The rapid development of China's urban modernization and the transformation of urban distribution networks will be widely used.

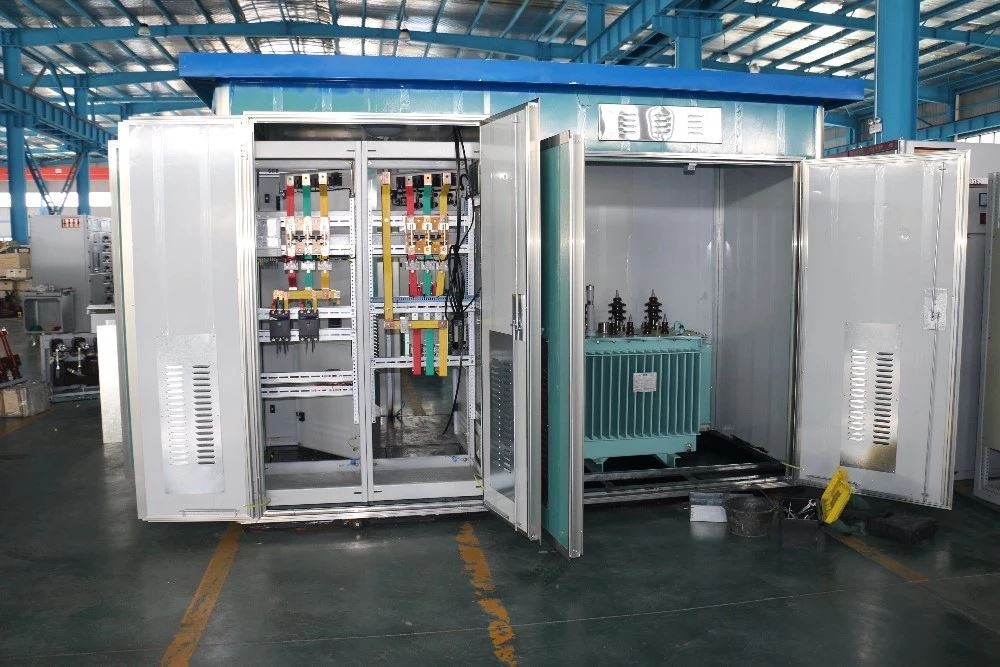

This substation is a very important power distribution and power supply unit in the cable network. It is a complete power supply with HV control, protection, conversion, and power distribution. It is used for three-phase AC 50Hz and maximum rated current. 1600KVA transformer.

For this substation, we mainly produce and export 11KV, 15KV, 20KV, 24KV, 33KV types.

For customized special types, once we get the clear technical data or drawings from you, we can also manufacture.

Working environment

1.Ambient temperature: -25℃~+40℃

2.Altitude: less than 1000m

3.Relative humidity

The average daily water vapor pressure is lower than 95%, lower than 2.2kpa

The monthly average value is lower than 90%, and the average value of water vapor pressure is lower than 1.8kpa

4.Earthquake intensity: less than 8

5.The external wind speed is less than 35m/s

6.Suitable for places where there is no fire, no explosion hazard, and no chemical corrosion
