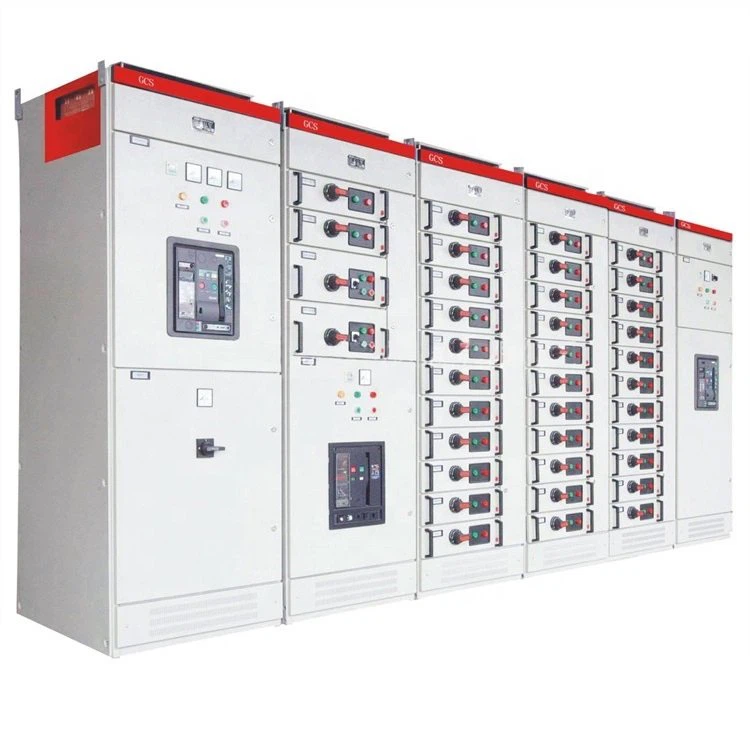

Low Voltage Removable Switchboard

Low Voltage Removable Switchboard GCS low voltage switchboards are suitable for power distribution systems in power plants, petroleum, chemical, metallurgy, textile, high-rise buildings and other industries. It can be applied to three-phase AC, rated voltage not exceeding 380V, and rated current...

Description

Low Voltage Removable Switchboard

GCS low voltage switchboards are suitable for power distribution systems in power plants, petroleum, chemical, metallurgy, textile, high-rise buildings and other industries. It can be applied to three-phase AC, rated voltage not exceeding 380V, and rated current not exceeding 380V distribution network, motor center, control, reactive power compensation and other fields.


Technical Data

Rated voltage: 400, 690V

Rated current: 1000 (Vertical Busbar)/4000 (Horizontal Busbar)

Rated short time withstand current: 50, 80kA, 1S

Rated peak withstand current: 105, 176kA

Degree of protection: IP3X, IP4X


Normal use conditions

1. The ambient air temperature should not be higher than +40℃, not lower than -5℃, and the average temperature within 24 hours should not be higher than +35℃. When exceeding, the capacity should be reduced and run according to the actual situation;

2. For indoor use, the altitude of the place of use shall not exceed 2000m;

3. The relative humidity of the surrounding air does not exceed 50% when the maximum temperature is +40℃, and a larger relative humidity is allowed at a lower temperature, such as 90% when it is +20℃. It should be considered that the temperature may change The effect of accidental condensation;

4. When the device is installed, the inclination of the vertical plane should not exceed 5°, and the whole group of cabinets should be relatively flat (in accordance with GBJ232-82 standard);

5.The device should be installed in a place where there is no violent vibration and impact, and where the electrical components are not corroded;

6. When users have special requirements, you can negotiate with us to solve them.

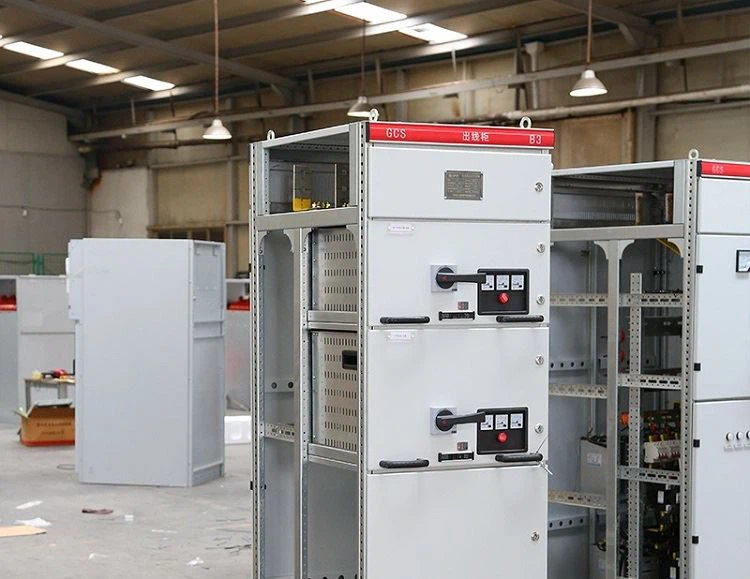

Low Voltage Removable Switchboard

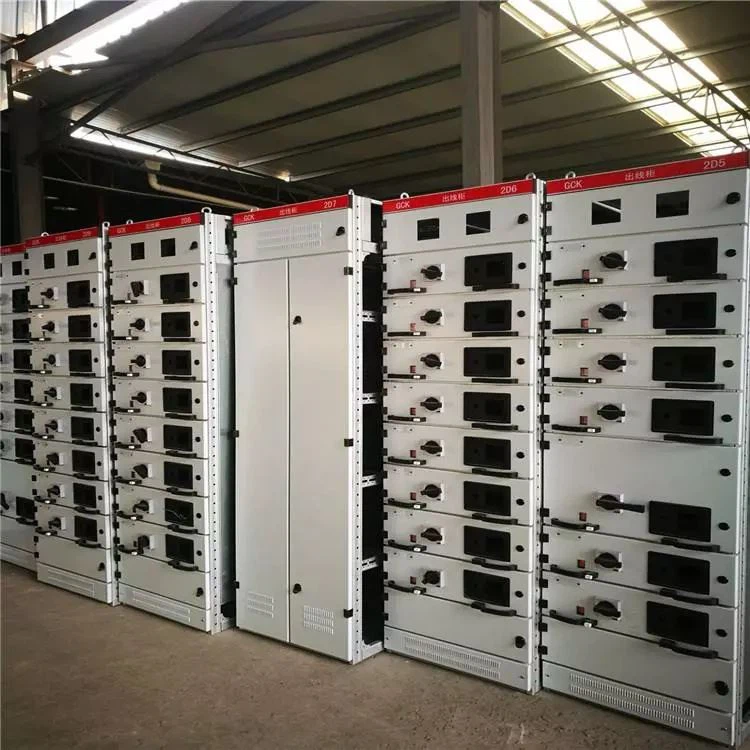

Low Voltage Removable Switchgear
