Low Voltage Distribution Panel

MNS low voltage distribution panel is suitable for AC 50-60Hz power distribution system with rated working voltage of 690V; for all low-voltage power distribution systems. It is widely used in various industries such as power system, petrochemical engineering, industrial and mining enterprises,...

Send Inquiry

Description

MNS application: oil and gas, onshore and offshore, chemical/petrochemical, pharmaceutical, power station, paper, water treatment, mining, steel, food, ship and infrastructure requirements: data center, airport, office building, shopping center, hospital ,railway

Standard: GB7251.12-2013, IEC61439-1 / -2

Working and environmental conditions:

MNS low voltage distribution panel is specially designed for indoor installation. Under other working conditions, the protection level of MNS can reach IP54.

Environment temperature:

Maximum short-time temperature: + 40°C

The highest 24h average temperature: + 35℃

Minimum temperature: -5℃

The climatic conditions should be the relative humidity of the surrounding environment: 50% at 40°C.

The switchgear installed indoors should meet the requirements of relevant standards. For switchgear that may have condensation, ventilation or heating should be used to prevent condensation.

Altitude: no more than 2000m. When the switch cabinet is installed at an altitude of more than 2000m, the equipment should be operated with a reduced capacity.

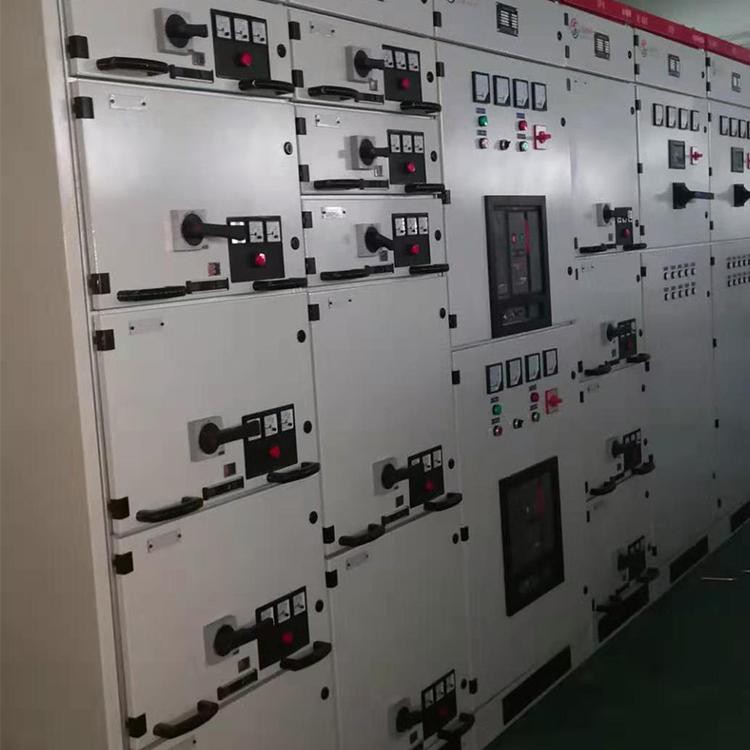

Electric Distribution Switch Power Cabinet
