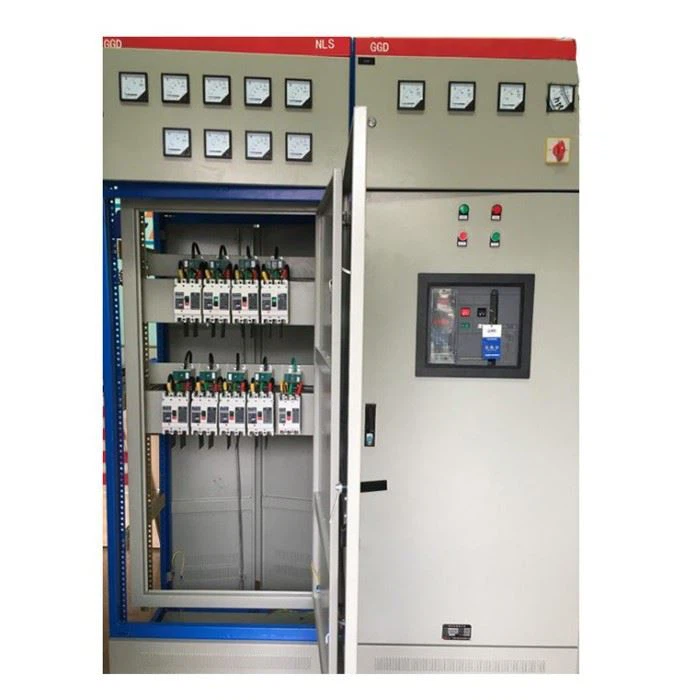

GGD 280V Outdoor Distribution Box

Name: China Customized GGD 280V Outdoor Distribution Box Manufacturers, Suppliers - FENGYUAN
Brand: FENGYUAN
SKU: 190757321

GGD type LV low voltage distribution cabinet is suitable for three-phase AC 50HZ, max voltage 380V, rated current to 3150Apower distribution system , it is widely used in power plants, substations, industrial and mining enterprises etc energy consumer and using for power, lighting and distribution equipment for electrical energy conversion, distribution and control purposes

Send Inquiry

Description

GGD 280V outdoor distribution box

Product Description

1. Metal seal, separate layout, high protection level;

2. The shell is protected by front cabinet and back cabinet, and the plate can be arranged and fixed along the wall to save space;

3. Electrical circuit cabinet, there is enough space to install and arrange inlet and outlet lines, easy to fix, protect and maintain

Application

Switch cabinet is mainly used in power plants, small and medium-sized generators, industrial and mining enterprises, secondary power substation of power system, and is used for receiving, transmitting and starting large high-voltage motors to achieve control, protection and monitoring.

Regular Service Condition

1, the ambient air temperature does not exceed 40℃, and the average measured within 24 hours does not exceed 35℃, the lowest ambient air temperature -5℃;
2. The altitude of the installation site shall not exceed 2000m;
3, the surrounding air is not obviously affected by dust, smoke, corrosion and/or flammable gas, steam or salt mist pollution;
4, atmospheric conditions: clean air, at the highest temperature of +40℃, the relative humidity shall not exceed 50%. At lower temperatures, greater relative humidity is allowed;
5. For example, the relative humidity at +20℃ is 90%. However, consideration should be given to the possibility of occasional moderate condensation due to temperature changes.
6. The inclination of the vertical plane shall not exceed 5° when the equipment is installed;
7, the equipment should be installed in the place without violent vibration and impact.

Note: customers with special requirements can negotiate with our company to solve

Main technical parameters
Rated working voltage (Ue)	380V
Rated insulation voltage (Ui)	660V
Frequency (fn) : 50 hz	50 hz
Rated current of main bus (InA)	2500A~1000A
Rated current of distribution bus (InA):1000A~400A	1000A~400A
Rated short-time withstand current (Icw) of main bus	50kA
Rated short-time withstand current (Icw) of distribution bus	30kA
Indoor type
Protection level	IP30

GGD (2)

GGD (3)

GGD (4)

GGD (9)

GGD (10)

GGD (11)

PRODUCTION LINE

CERTIFICATE

CQC

EXHIBITION

COMPANY OVERVIEW

FAQ

Q5 : Is OEM/ODM available?

A: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.

Q6 : You are manufacturer or trading company?
A: We are factory, As a 100% professional manufacturer with 20 year's manufacturer experience, we could produce products according to customers' requirements and we could also control the quality of products 100%.

Q7 : Can the price be negotiated?

A: Yes, the price is negotiable. It can be changed according to your quantity or package

Q8 : How about inspection?

A: We have the whole inspection system from raw material to end products include temperature rise test,salt spraying test conductor type test,mechanical life test.

Q9 : What is payment terms?

A: T.T, Paypal,Western Union,Alibaba trade assurance and L/C is acceptable. 30% T/T in advance ,70% balance before shipment.
