Electrical LV Switchgear
XL-21 Electrical LV Switchgear It is suitable for power distribution and lighting distribution in industrial and civil buildings with AC frequency of 50HZ, voltage of 500V and below, three-phase four-wire power system. XL-21 power cabinet refers to the combination of electrical control cabinets...
Description

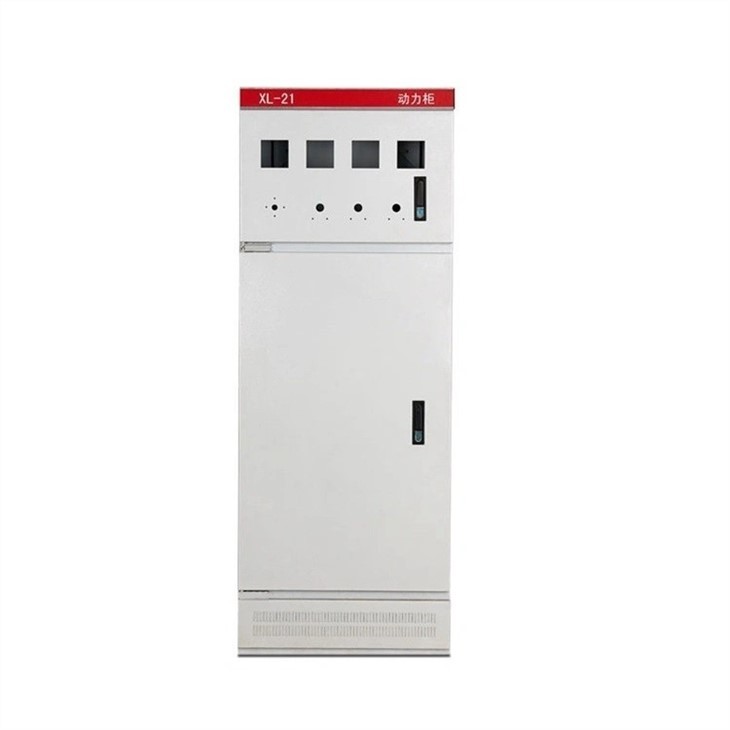

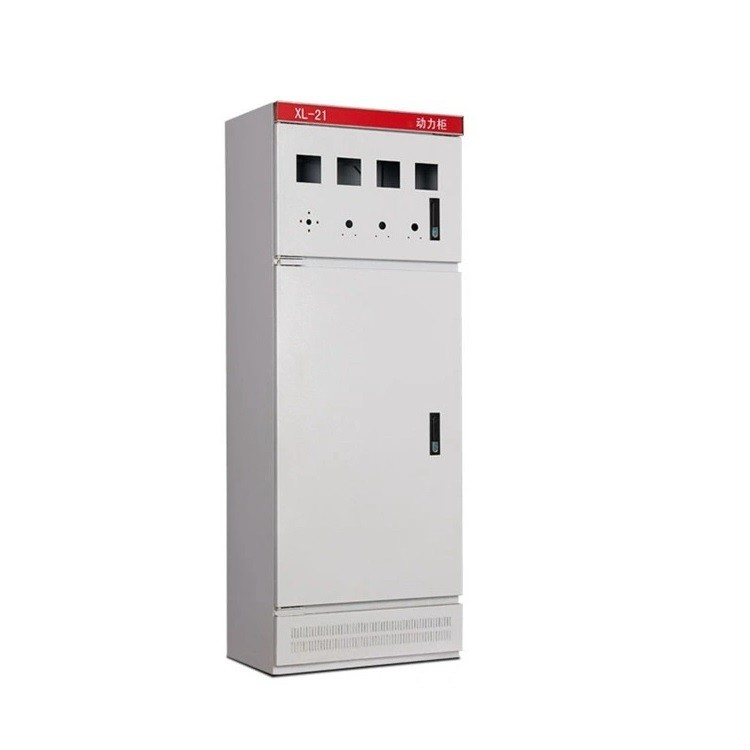

XL-21 Electrical LV Switchgear
It is suitable for power distribution and lighting distribution in industrial and civil buildings with AC frequency of 50HZ, voltage of 500V and below, three-phase four-wire power system.
XL-21 power cabinet refers to the combination of electrical control cabinets that provide power for the normal operation of the entire machine. There are contactors, frequency converters, transformers, etc. Its role is:
1. Supply power to the electrical equipment (provide power to the equipment).
2. Start and stop operating electrical equipment (with start and stop buttons).
3. Detect the operation of the equipment (set the signal indicator light, have an ammeter and a voltmeter).
4. Protect electrical equipment (circuit breaker). The power cabinet is a power distribution cabinet, which is a power distribution cabinet that provides power and control for power equipment (generally referred to as motors).
Main technical parameters of XL-21 electrical lv switchgear:
Rated voltage: 380/220VAC
Maximum rated working current: 600A
Rated insulation voltage: 660V
Frequency: 50Hz
Protection class: IP30
Short-time withstand current: 18KA
Short-time withstand current: 36KA
