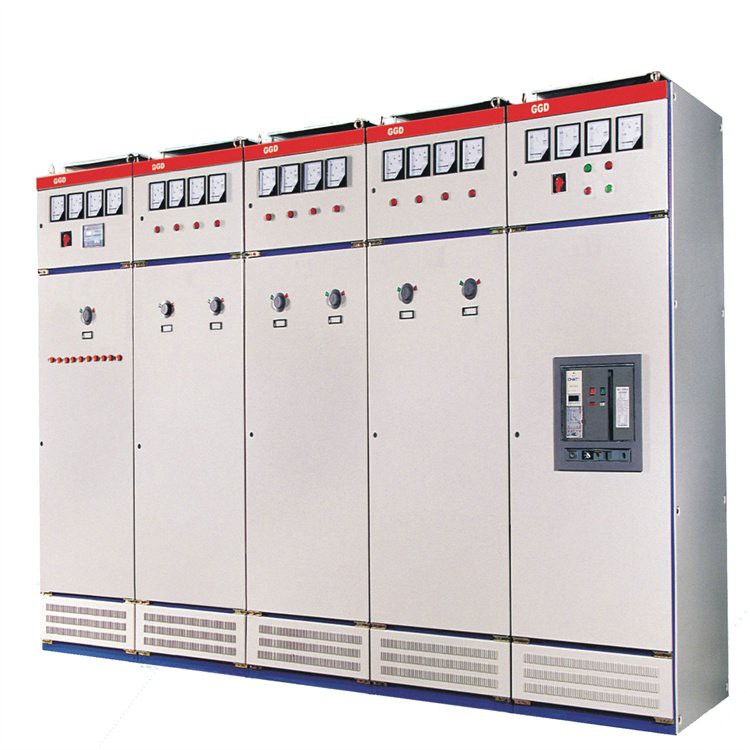

AC Low-voltage Fixed Switchgear

Description

GGD type ac low-voltage fixed switchgear is a low-voltage power distribution cabinet designed based on the principles of safety, economy, rationality and reliability. It is widely used in power plants, substations, factories and mines, high-rise buildings and other power users. In the power distribution system with AC 50Hz, rated working voltage 380V, rated current up to 3150A, it is used as power lighting, capacitance compensation and power conversion, distribution and control of power distribution equipment.

	Item	Unit	Parameter
	Item	Unit	GGD1	GGD2	GGD3
1	Rated voltage	V	400	400	400
2	Main busbar rated current	A	400-1000	630-1500	1600-4000
3	Rated short-circuit breaking current (1s)	kA	15	30	50
4	Rated short-time withstand current	kA	15	30	50
5	Rated peak withstand current	kA	30	63	105

Technical features and advantages

1. The upper and lower ends of the cabinet have different numbers of heat dissipation slots, which have good heat dissipation performance.

2. The cabinet body is designed according to the requirements of modern industrial product modeling design, using the golden ratio method to design the cabinet body shape and the division size of each part, so that the whole cabinet is beautiful and refreshing.

3. The whole cabinet has high breaking capacity and good dynamic and thermal stability.

4. The electrical scheme is flexible, easy to combine, series and practical.

5. Novel structure and high protection level.

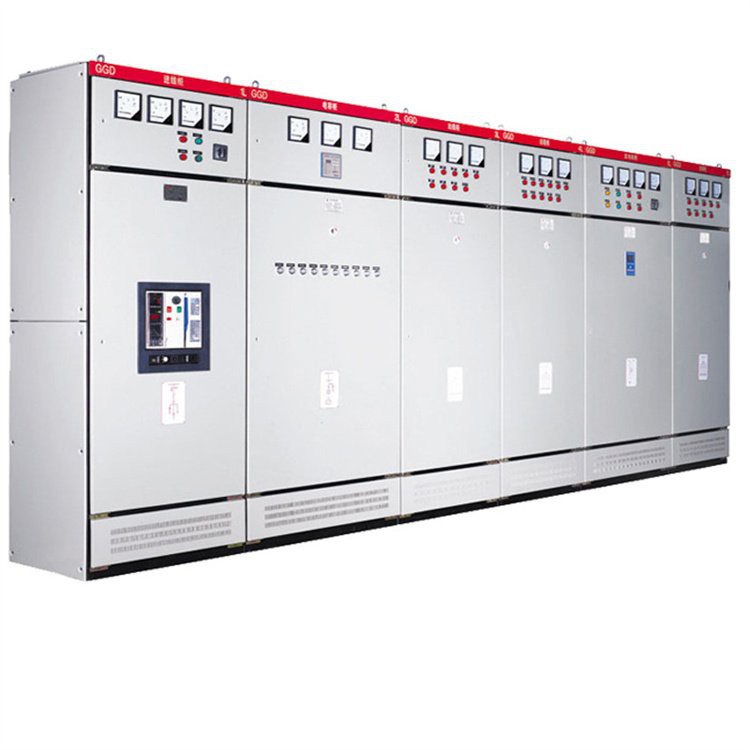

AC Low-voltage Fixed Switchgear Price

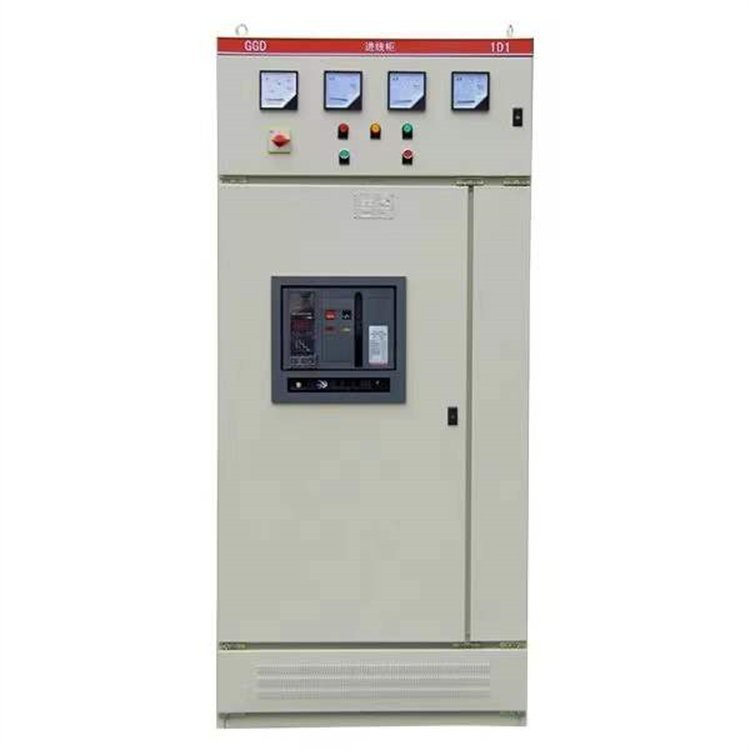

AC Low-voltage Fixed Switchgear

Certificates

High Voltage Electrical Distribution Board

Packing & Delivery

Generally, we will use wooden packaging suitable for long-distance transportation such as sea transportation. We can also customize special packaging according to customer requirements.
