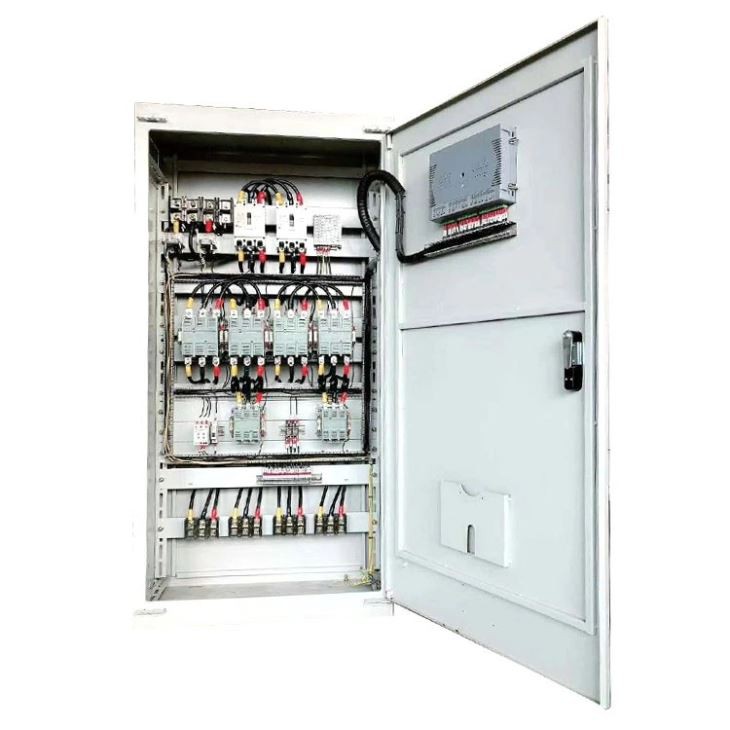

AC Low Voltage Distribution Cabinet
GGD AC low-voltage distribution cabinet is suitable for power distribution system of AC 50 Hz, rated working voltage 380 V andrated working current 3150 A in power plants, substations, and industrial enterprises, etc.
Description
GGD AC low-voltage distribution cabinet is suitable for power distribution system of AC 50 Hz, rated working voltage 380 V andrated working current 3150 A in power plants, substations, and industrial enterprises, etc.
This device is a innovative type of low-voltage distribution cabinet that is in line with the safety, economic, reasonable and reliable principles which has high capability of breaking, high thermal stability, flexible electrical scheme and convenient combination.
The AC low voltage distribution cabinet is suitable for power users such as power plants, The AC low voltage distribution cabinet is suitable for power plants, substations, factories and mining enterprises and other power users of 50 Hz AC, rated voltage 380V,rated current to 3150A distribution system, as power, lighting and distribution equipment for power conversion, distribution, control.
The product has the characteristics of high breaking capacity, good dynamic and thermal stability,flexible electrical scheme, convenient combination, series, strong practicability, novel structure,high protection level, etc. It can be used as a replacement product for low-voltage switchgear assembly.
Product: | AC Low Voltage Distribution Cabinet |
Brand Name: | Fengyuan Power Technology |
Rated Voltage: | AC380V |
Rated Frequency: | 50hHZ |
Dielectric Strength: | 2500V/1min |
Quality: | Top |
Application: | Electric Power Transmission |
Origin | Henan,China |
Electrical current standard: | InA=1600A~400A,Icw=30kA;Ue=380V,Ui=660V;500Hz;IP30 |
Custom: | Customized according to electric current ! |
Type | Rated Voltage | Rated current (A) | Rated short circuit break current(KA) | Rated short time withstand current (1s) KA | Rated peak withstand current (1s)KA |
GGD | 380 V | A.1000 | 15 | 15 | 15 |
B.600(630) | |||||
C.400 | |||||
GGD | 380V | A.1500 (1600) | 30 | 30 | 63 |
B.1000 | |||||
C.600 | |||||
GGD | 380V | A.3150 | 50 | 50 | 105 |
B.2500 | |||||
C.2000 |
