11kV Dry Type Amorphous Core Transformer
Dry type amorphous core transformer is a transformer with high mechanical strength, electrical strength and heat resistance, which is made of F-grade epoxy resin and filler.
Description
Product description：
Dry type amorphous core transformer is a transformer with high mechanical strength, electrical strength and heat resistance, which is made of F-grade epoxy resin and filler. After filling the empty film and degassing, under vacuum and pressure, the inner and outer surfaces of the thin layer casting are placed on the high and low voltage coils reinforced by the glass fiber forming mesh.
Technical parameters:
Rated | Voltage Combination | Winding | No-load | Load | Short | No-load | ||
High | Tapping Range | Low | ||||||
50 | 35 | ±5 | 0.4 | 270 | 1000 | 1.6 | ||
100 | 400 | 1570 | 1.4 | |||||
160 | 540 | 2130 | 1.3 | |||||
200 | 620 | 2530 | 1.2 | |||||
250 | 720 | 2760 | 1.1 | |||||
315 | 880 | 3470 | 1.1 | |||||
400 | 980 | 3990 | 1.0 | |||||
500 | 1160 | 3890 | 1.0 | |||||
630 | 1340 | 5880 | 6 | 0.9 | ||||
800 | 1520 | 6990 | 0.8 | |||||
1000 | 1770 | 8130 | 0.8 | |||||
1250 | 2090 | 9690 | 0.7 | |||||
1600 | 2450 | 11730 | 0.6 | |||||
2000 | 3050 | 14450 | 0.6 | |||||
2500 | 3600 | 17170 | 0.5 | |||||

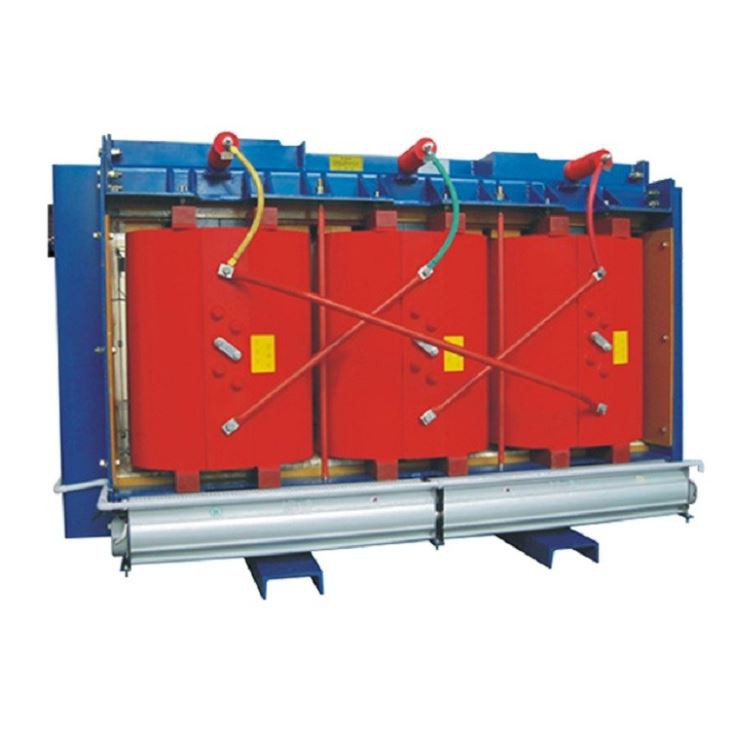

Photo:
OUR SERVICE:
●According to customer's technical parameters, design reasonable products to meet customer's requirements；
●Our strict production, quality control and on-time delivery；
●According to the requirements of customers, installation can be guided by telephone or installed on site；
Tests
Below are the tests conducted by Fengyuan before delivery. Other tests required by clients can also be done accordingly.
Insulation resistance
Resistance of all windings
Check voltage ratio and vector group
No-load test at rated frequency and rated voltage
Impedance test
Withstand voltage test
Induced over-voltage withstand test
Partial discharge measurement
OUR ADVANTAGE:
1. 11.20kv 25kv 2000kva cast resin dry type power transformer has Strong short-circuit resistance, low loss, low no-load current, strong impact resistance, low partial discharge, low noise, strong heat dissipation capacity.
2. The performance parameters of our products are better than GB and IEC standards.
3. INDOOR MEDIUM VOLTAGE DRY TYPE TRANSFORMER is safe, non-flammable, fire-proof and pollution-free, and can be installed directly in the conformity center.
4. Power dry transformer has Maintenance-free, easy to install and low cost of comprehensive operation.
5. amorphous core dry type transformer has High reliability and mechanical strength.
6. three phase electric equipment dry type transformer Strong seismic resistance.
7. Moisture-proof and corrosion-resistant.
8. It has strong overload capacity and can run for a long time at 120% load without air cooling.
FAQ:
Q1:I know you Quality is perfect ,but in our market, normal quality are more popular. What can I do?
A：Please don’t worry,we can provide a series of quality of products, you can choose the best one to meet your market,we will try our best to support you.I believe we can provide products to meet all your requirements.
Q2: Can I get a sample before the order? Becuase I really don’t how is your products quality.
A: Of cause ! we also think sample order is the best way to build trust. We offer sample service.Do not hesitate to send inquiry to get the sample!
