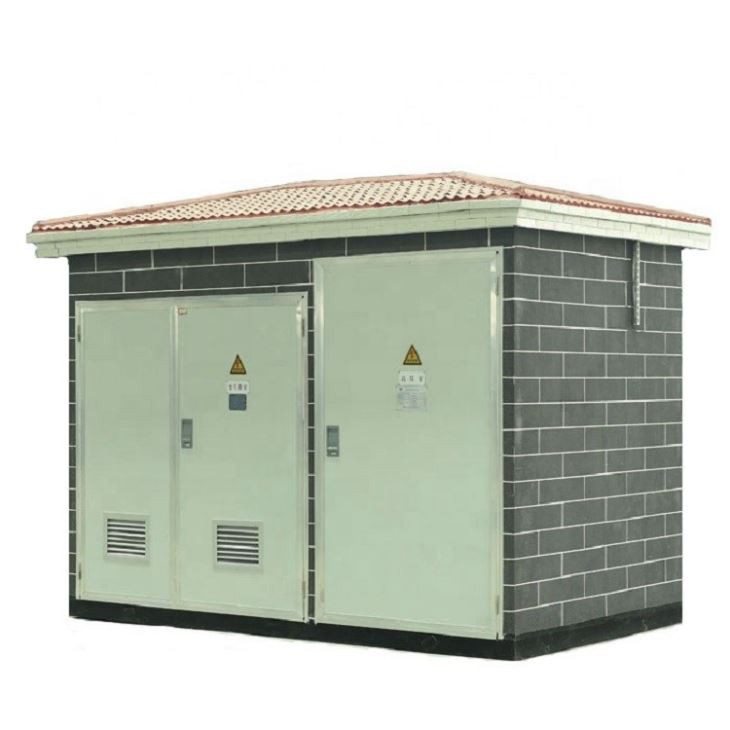

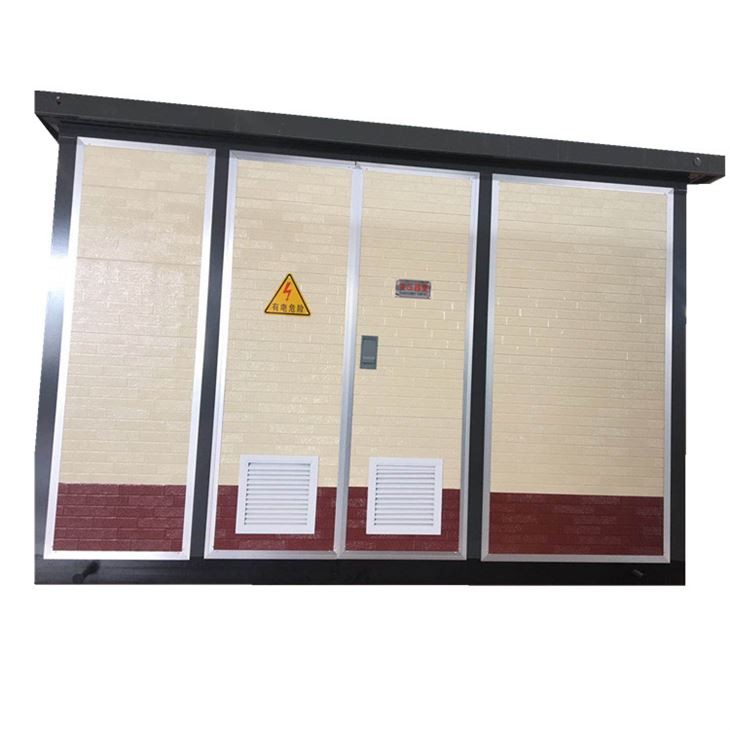

24kV Box Type Prefabricated Substation

Box type Prefabricated substation are used in high-rise residential, luxurious villas, square parks, residential areas, small and medium factories, mines, oil fields, and temporary construction electricity and other places to accept and distribute electricity in the distribution system.

1.Rated voltage:20kV

2.Maximum operating voltage:24kV

3.Rated current:400A

4.Rated short time current:16kA

5.Rated power frequency withstand voltage:50kV

6.Rated impulse withstand voltage (peak value):125K

7.Insulating medium:SF6/air

8.Protection class:lP4x

1.Land saving,power saving,compact,miniaturized,unattended,applied in urban and rural power grid;

2.The utility model has the advantages of flexible combination,convenient transportation, migration and installation,short construction period, low operation cost, pollution-free and maintenance free,etc.

Henan Fengyuan Power Technology Co.,ltd.is engaged in manufacturing,development,service ,sales & marketing of H.V./L.V. power distribution equipments,switchgears,pad-mounted transformers,compact substations..etc .for all over the world. As a leading & professional manufacturer in China,we mainly manufacture below items and supply their electrical accessories:

H.V.& L.V.switchgears

M.V solid insulated switchgears (SIS)

SF6 Insulated Switchgear

Compact substations

Ring main units (RMU)

Oil-immersed transformers and dry type transformers

Cable Branch Box (CBB)

Vacuum circuit breakers (VCB),Air circuit breakers(ACB).etc

We offer free after-sale service for one year

Tips for quote &Placing Order:

The customer shall specify the following items:

Primary circuit scheme and single line system diagram

Secondary circuit schematic diagram, the wires shall be connected according to factory standard if customer has no requirement;

Switchgear arrangement diagram, plan view of electric power substation.

Detailed specification and parameter of electric element of each circuit;

Surface colour of switchgear;

Other requirements.

Trade terms:

1.Payment: 1) 30% in advance, 70% balance be paid before shipment

2.Port of loading: Qingdao port or Lianyungang port

3.Discounts: offered based on order quantities

4.Delivery time: 10-30 days according to order quantities

5.Package: wooden box and wooden pallet and can be customized
