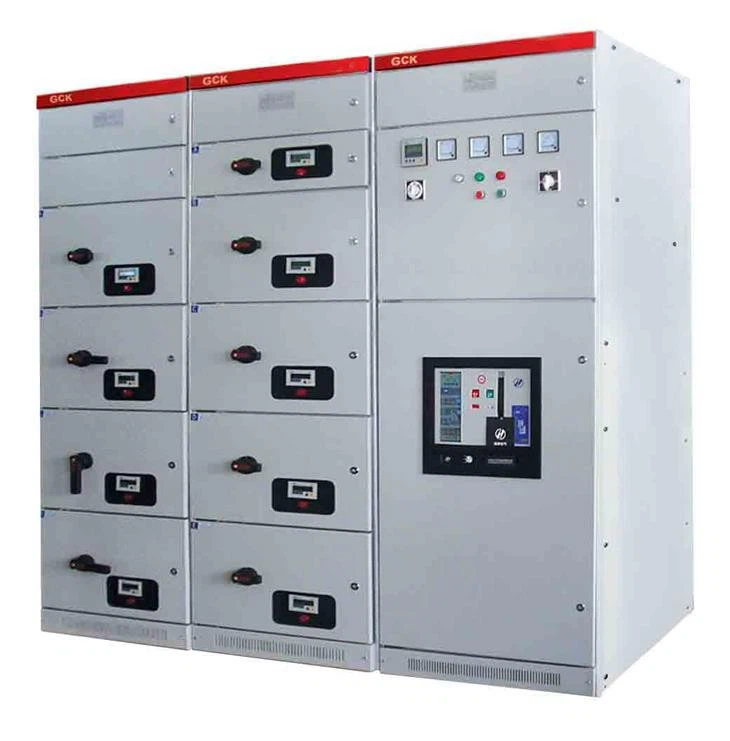

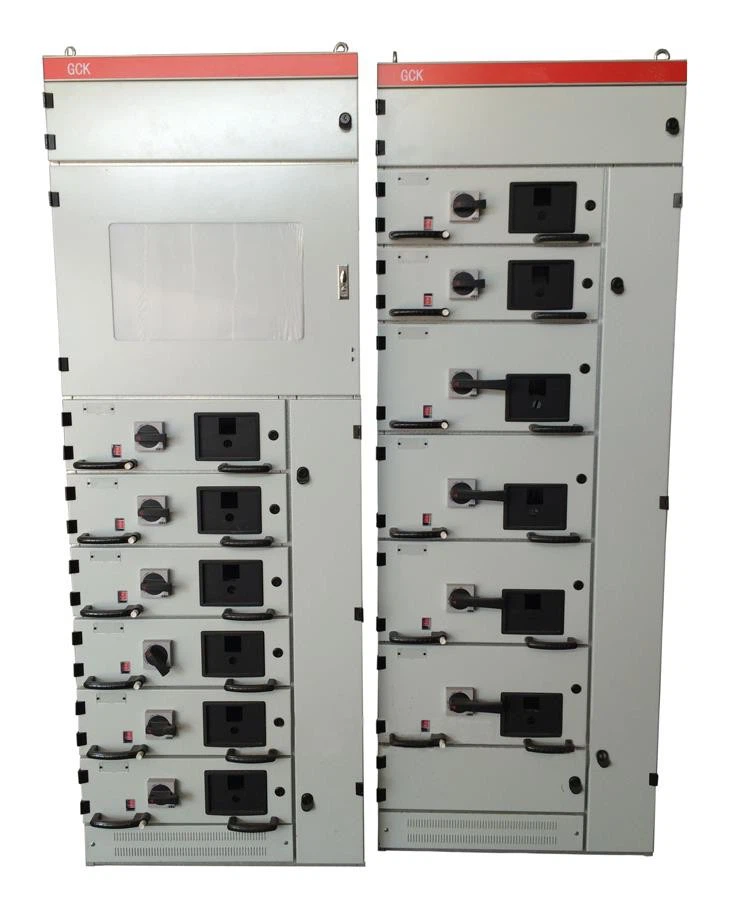

110V Drawer LV Switchboard
Service environment a) Air temperature: Maximum temperature: +40°C; Minimum temperature:-15°C b) Humidity: Monthly average humidity 95%; Daily average humidity 90% . c) Altitude above sea level: Maximum installation altitude: 1000M. d) Ambient air not apparently polluted by corrosive and flammable gas, vapor etc. e) No frequent violent shake
Description






Protection grade | 1P40 |
Rated working voltage | AC, 380(V) |
Frequency | 50Hz |
Rated insulation voltage | 660V |
Working conditions | |
Environment | Indoors |
Altitude | ≤2000m |
Ambient temperature | -5℃~+ 40℃ |
The min temperature under store and transportation | -30℃ |
Relative hunidity | ≤90% |
Capacity of control motor(kW) | 0.4~155 |
GCK series Low voltage switchgear(hereinafter short as switchgear)is a complete power distribution device for 3.6~24kV,3-phase AC 50Hz,single-bus and single-bus sectionalized system. It is mainly used for power transmission of middle/small generators in power plants; power receiving, transmission for substations in power distribution and power system of factories, mines and enterprises, and starting of large high-voltage motor, etc.,so as to control, protect and monitor the system. The switchgear meets IEC298,GB3906-91.In addition to be used with domestic VS1 vacuum circuit breaker, it can also be used with3AH5 from Siemens domestic ZN65A,and VB2 from GE, etc.,it is truly a power distribution device with good performance. In order to meet the requirement for wall mounting and front-end maintenance, the switchgear is equipped with a special current transformer, so that the operator can maintain and inspect it in front of the cut
Welcome to inquiry
Contact information:
Jiyuan Fengyuan Electrical Equipment Co., Ltd
Sales Department
Contact person:Mr Charles Du
E-mail:fengyuan800@outlook.com
Mobile:+8618639199897(Available for whatsapp,wechat,skype)
Add:Huling industrial zone,jiyuancity,henan province,China
TEL:+86-0391-2180800
FAX:+86-0391-2180818
