Metal Armoured High Voltage Switchgear KYN28A-12 indoor AC metal armoured high voltage switchgear is suitable for three-phase AC 50/60Hz power system, used for receiving and distributing power, as well as control, protection and test circuits. The inside of the product adopts APG epoxy resin...
Description
Metal Armoured High Voltage Switchgear

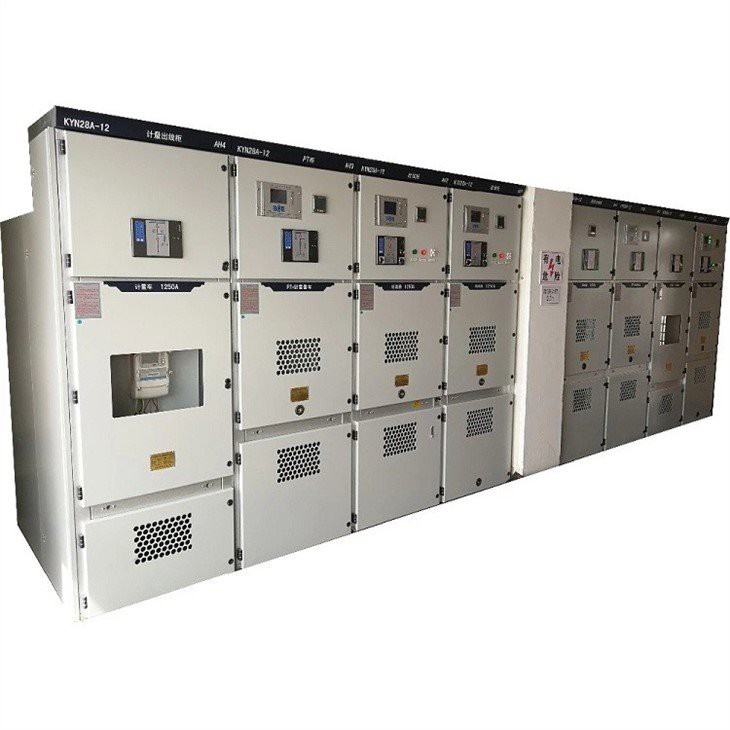

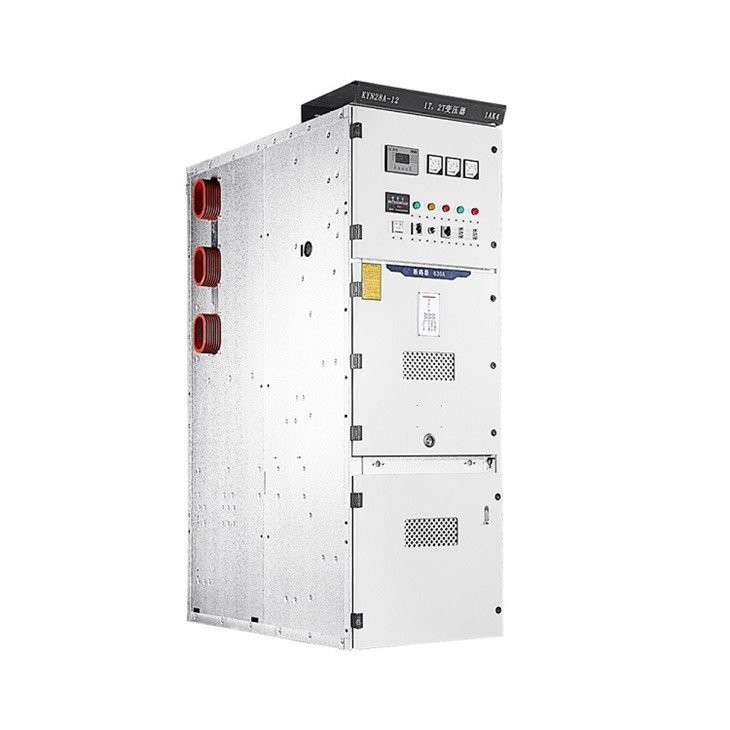

KYN28A-12 indoor AC metal armoured high voltage switchgear is suitable for three-phase AC 50/60Hz power system, used for receiving and distributing power, as well as control, protection and test circuits.
The inside of the product adopts APG epoxy resin casting and reliable solid insulation bus technology, and carries out a fully insulated design. It has good electric field distribution measures. It is a miniaturized switchgear with advanced technology, stable performance, reasonable structure, convenient use, safe and reliable.
| Main technical parameters | |||
| Rated voltage | ..................................... | kV | 3.6,7.2,12 |
| Rated frequency | ..................................... | Hz | 50 |
| Rated current of circuit breaker | ..................................... | A | 630/4000 |
| Rated current of switchgear | ..................................... | A | 630/4000 |
| Rated short-time withstand current (4S) | ..................................... | kA | 20,25,31.5,40 |
| Rated peak withstand current (peak) | ..................................... | kA | 50,63,80,100 |
| Rated short-circuit breaking current | ..................................... | kA | 20,25,31.5,40 |
| Rated insulation level 1min power frequency withstand voltage | Pole-to-pole, pole-to- ground | kV | 24,32,42 |
| Between open contacts | kV | 24,32,48 | |
| Lightning impulse withstand voltage (peak) | Pole-to-pole, pole-to- ground | kV | 40,60,75 |
| Between open contacts | kV | 46,70,85 | |
| The shell is IP4X, and it is IP2X when the compartment door and circuit breaker chamber door are opened | |||
Feature
1. The busbar adopts heat-shrinkable insulation material or epoxy coating insulation method, optimizes the shape of the electrode, makes the cabinet structure compact, and reduces the area occupied.
2. The cabinet body is made of high-quality cold-bonded steel plate and imported aluminized zinc sheet metal, processed by CNC sheet metal, and connected by high-strength bolts, nuts, and rivet nuts.
3. There are other primary solutions for switchgear equipment, such as cable entry and exit, overhead entry and exit, bus connection, isolation, voltage transformer, lightning arrester, etc.
4. The busbar cabinet, handcart cabinet and cable cabinet are all installed with insulation boards, which greatly improves the insulation level.
5. The interlock between the main switch, trolley, floor knife switch and the cabinet door adopts a mandatory mechanical door lock method to achieve the "five prevention" function.
6. The friendly man-machine interface makes the switchgear operation programmable and stylized, and the operator is clear at a glance.
7. There are more than 160 kinds of main wiring schemes, with strong structural adaptability, which can meet the needs of different users.
