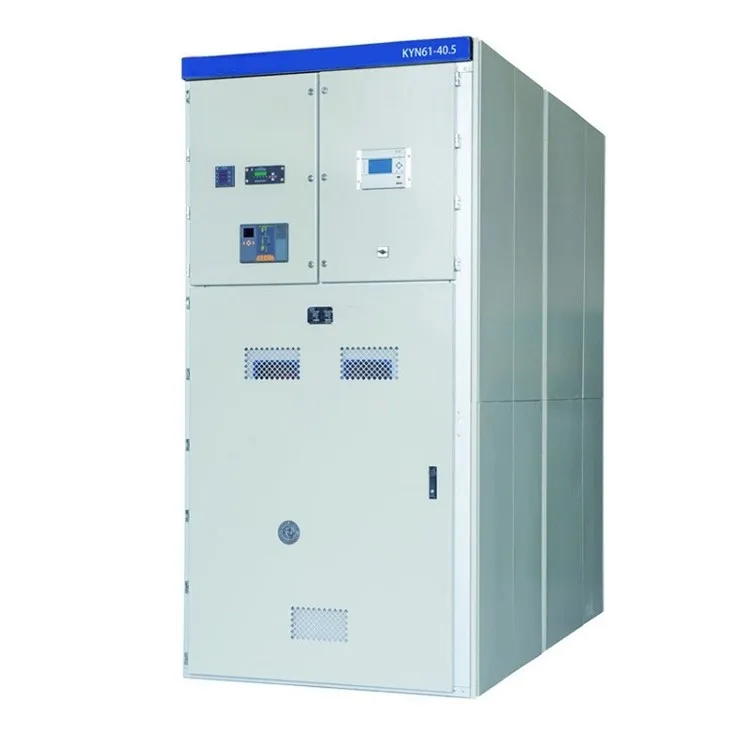

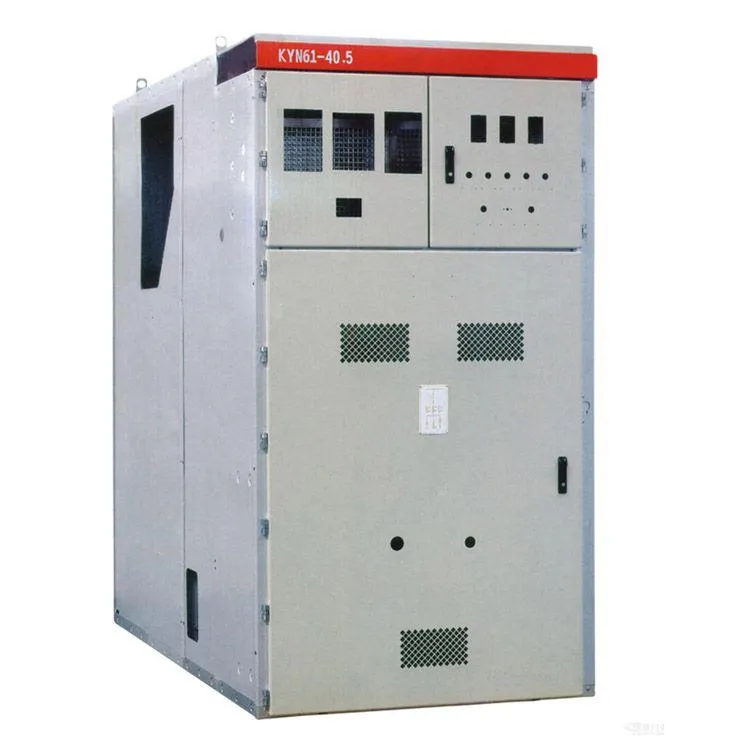

KYN61-40.5 High Voltage Switchgear
KYN61-40.5 Armored metal closed switchgear adapted to three-phase AC 50Hz power system for accepting and dispeling electricity and controlling, protecting and monitoring circuitry.
Description
KYN61-40.5 High Voltage Switchgear
KYN61-40.5 high voltage switchgear is suitable for 40.5kV, three-phase, AC, 50/60Hz power grid, used for receiving and distributing electric energy, and also used for control, monitoring and protection. It is suitable for general power systems and occasions with frequent operations.
This high voltage switchgear can meet the requirements of GB3906, IEC298 and other standards. It also has "five precautions" functions such as preventing misoperation of the circuit breaker, preventing the load-carrying trolley, preventing the grounding switch from being switched on when the grounding switch is in the grounding position, preventing the grounding switch from being transmitted by the grounding position, and preventing the erroneous entry of the electric isolation.
KYN61-40.5 high voltage switchgear technical parameter:
No. | Items | Unit | Parameters | ||
1 | Rated voltage | KV | 40.5 | ||
2 | Rated frequency | Hz | 50 | ||
3 | The main busbar rated current | A | 1250,1600,1200 | ||
4 | Branch busbar rated current | A | 630/1250/ 1600 | ||
5 | Rated insulation level | Power frequency withstand voltage in 1min (Effective value) | Phase-phase, Phase-ground | KV | 95 |
Primary isolation fracture | KV | 115 | |||
Lightning Impulse Withstand Voltage (peak value) | Phase-phase, Phase-ground | KV | 185 | ||
Primary isolation fracture | KV | 215 | |||
Power frequency withstand voltage of auxiliary control circuit | V | 2000 | |||
6 | Rated short circuit breaking current | KA | 25/31.5 | ||
7 | Rated short circuit closing current (peak value) | KA | 63/80 | ||
8 | Rated short-time withstand current (4S) | KA | 25/31.5 | ||
9 | Rated peak withstand current | KA | 63/80 | ||
10 | Rated voltage of auxiliary control circuit | V | -110,-220,~220 | ||
11 | Protection grade | Enclosure IP4X, IP2X When the door of the circuit breaker opens | |||
12 | Outline size (width * depth * height) | mm | 1400(1200)*2800(2600)*2600(*includes an internal digital SF6 handcart scheme) | ||
13 | weight | kg | ~2300 | ||
