Air Insulated Switchgear Cabinet
KYN28A-12 type armored removable metal-enclosed switchgear is a complete set of power distribution equipment for 3～10kV three-phase AC 50Hz single bus and single bus section system.
Description

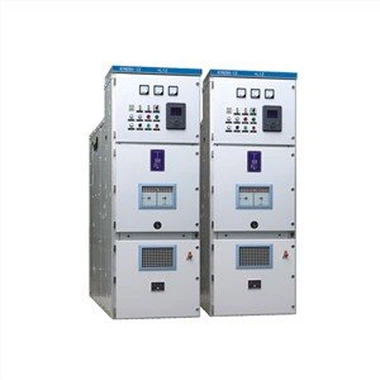

KYN28 12kv Metal Clad Air Insulated Switchgear Cabinet
This switchgear is suitable for the power distribution system of power plants, substations, industrial and mining enterprises, etc., to realize the reception, distribution of electric energy and the control, monitoring and protection of power distribution equipment.
The one-time wiring scheme of this switchgear is complete and comprehensive, which can meet various installation requirements of users. It can be equipped with the company's self-produced VS1 vacuum circuit breaker, ABB company's VD4 vacuum circuit breaker, or Schneider Electric EV12 vacuum circuit breaker, etc., to meet the needs of different users.
Model meaning
Product parameter
| Rated voltage | 12kV |
| Rated current | 630～4000A |
| Rated short-time withstand current | 20～40kA，4S |
| Rated peak withstand current | 50～100kA |
| 1min power frequency withstand voltage | 42kV |
| Lightning impulse withstand voltage | 75kV |
| Rated short-circuit current breaking times | 50 |
| Protection level | IP4X |
Service condition of KYN28 air insulated switchgear cabinet:
1. Ambient temperature: highest temperature: +40°C, lowest temperature: -15°C.
2. Environmental humidity: daily average RH does not exceed 95%; monthly average RH does not exceed 90%.
3. The altitude is not higher than 2500m.
4. The surrounding air is free of smoke or flammable air, steam or salt spray pollution.
Details:
