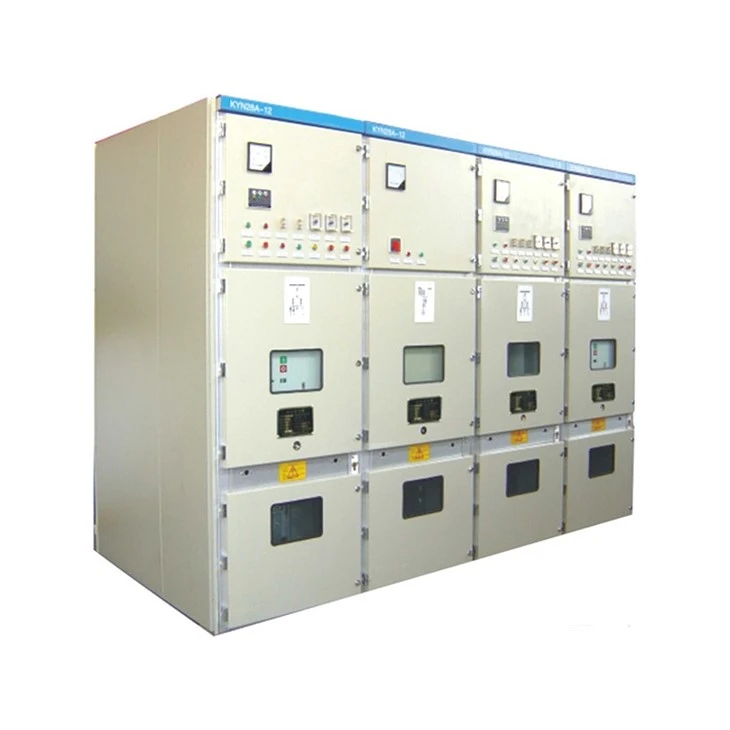

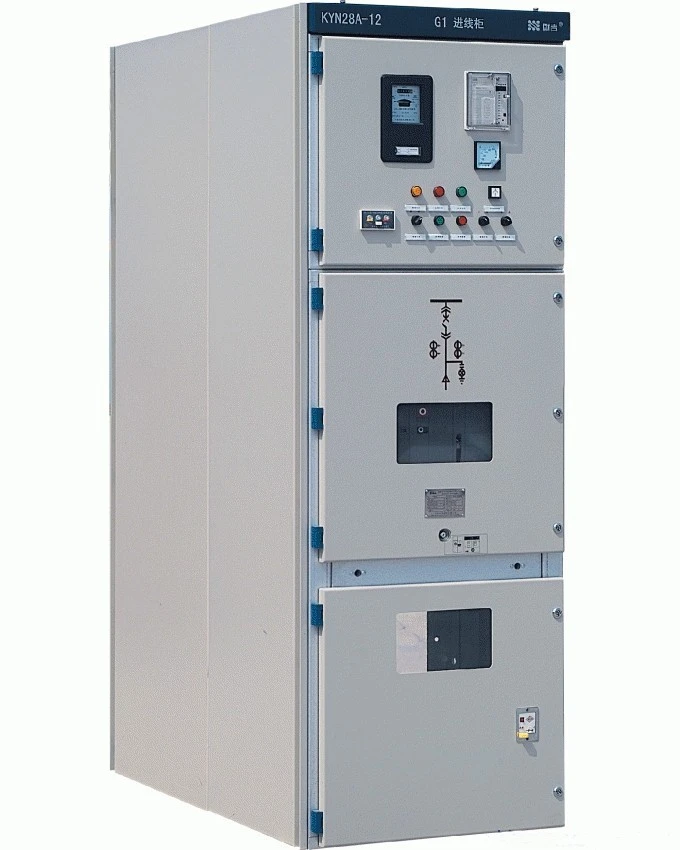

Electric Control Panel KYN28-12 Series High/medium/low Voltage Switchgear

Electric control panel KYN28-12 series high/medium/low voltage switchgear







1. Switch cabinet (also known as complete switch or complete distribution device): It is an electrical equipment mainly composed of circuit breakers; It refers to that the manufacturer assembles relevant high and low voltage electrical appliances (including control appliances, protection appliances, measuring appliances), buses, current carrying conductors, insulators, etc. in closed or open metal cabinets according to the requirements of the electrical primary main wiring diagram, as devices for receiving and distributing electric energy in the power system.

2. High voltage switchgear: A general term for high-voltage switches mainly used for power generation, transmission, distribution, and energy conversion, as well as control, measurement, protection devices, electrical connections (busbars), enclosures, support components, etc.

3. The "five preventions" in the protection requirements of switchgear: preventing accidental opening and closing of circuit breakers, preventing live opening and closing of isolation switches, preventing live closing of grounding switches, preventing grounding of circuit breakers, and preventing accidental entry into live compartments.

4. Corresponding relationship between the position and phase sequence of the busbar:

5. Protection level: The degree of protection provided by the shell, partition, and other parts to prevent the human body from approaching live parts and touching moving parts, as well as to prevent external objects from invading internal equipment.



Definition of protection level abbreviation

IP1X prevents objects with a diameter greater than 50mm from following

1. Prevent solids with a diameter greater than 50mm from entering the shell;

2. Prevent a large area of the human body (such as hands) from accidentally touching live parts or moving parts inside the shell

IP2X prevents objects with a diameter greater than 12.5mm

1. Prevent solids with a diameter greater than 12.5mm from entering the shell;

2. Prevent hands from touching live parts or moving parts inside the shell

IP3X prevents objects with a diameter greater than 2.5mm

1. Prevent solids with a diameter greater than 2.5mm from entering the shell;

2. Prevent tools or metal wires with a thickness (diameter) greater than 2.5mm from touching live or moving parts inside the cabinet

IP4X prevents objects with a diameter greater than 1mm

1. Prevent solids with a diameter greater than 1mm from entering the shell;

2. Prevent tools or metal wires with a thickness (diameter) greater than 1mm from touching live or moving parts inside the cabinet

IP5X dustproof

1. It can prevent dust from entering to the extent that it affects the product;

2. Completely prevent contact with live parts or moving parts inside the cabinet

IP6X dust density

1. Completely prevent dust from entering the shell;

2. Completely prevent contact with live parts or moving parts inside the cabinet



Service Conditions



◎ Ambient airtemperature: -15°C~+40°C;



◎ Relative humidity: Daily average 95%，and daily average of water vapor pressure < 2.2kPa;

◎ Monthly average «90%, and monthly verage of water vapor pressure < 1.8kPa;

© Altitude: ^1000m;

◎ Seismic intensity: not beyond Ms8.

◎ Ambient air should be free of pollution of corrosive or flammable gas or vapor;

◎ No obvious vibration;

Main technical parameters
Rated voltage	.....................................	kV	3.6、7.2、12
Rated frequency	.....................................	Hz	50
Rated current of circuit breaker	.....................................	A	630/4000
Rated current of switchgear	.....................................	A	630/4000
Rated short-time withstand current (4S)	.....................................	kA	20、25、31.5、40
Rated peak withstand current (peak)	.....................................	kA	50、63、80、100
Rated short-circuit breaking current	.....................................	kA	20、25、31.5、40
Rated insulation level 1min power frequency withstand voltage	Pole-to-pole, pole-to- ground	kV	24、32、42
	Between open contacts	kV	24、32、48
Lightning impulse withstand voltage (peak)	Pole-to-pole, pole-to- ground	kV	40、60、75
	Between open contacts	kV	46、70、85
The shell is IP4X, and it is IP2X when the compartment door and circuit breaker chamber door are opened



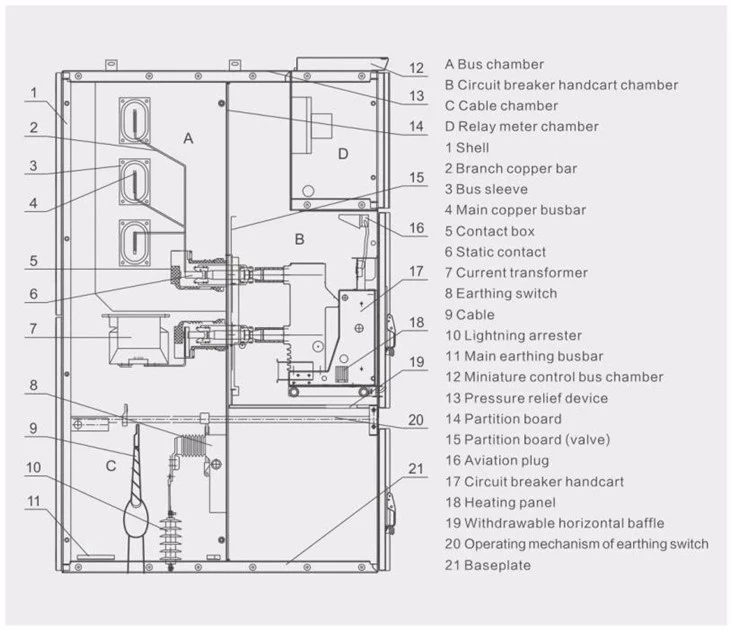

Features



1: STRICT protection step to ensure personal safety



2: The cable room can be installed as many as 9 single-core cables



3: Operation and testing positions will be established for the handcart, and both positions are equipped with safe and reliable positioning device and display device



4: The enclosure is completely assembled from aluminized and galvanized steel plate, which are machined and bent by machine tool and then bolted.



5: It has high mechanical strength and its neatness and beauty is ensured.



6: The switchboard door is sprayed with plastic, also has strong capacity of impact resistance and corrosion protection.



7: The primary switch may be provided with VD4 vacuum circuit breaker and C3 series of fixed type load switch from ABB, various domestic vacuum circuit breakers (such as VS1, VH1, VK, ZN28) may also be provided in lieu of the same foreign products.



8: Front door is installed with a observation window to check the operating state of the components inside the room

















Q5 : Is OEM/ODM available?

A: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.



Q6 : You are manufacturer or trading company?
A: We are factory, As a 100% professional manufacturer with 20 year's manufacturer experience, we could produce products according to customers' requirements and we could also control the quality of products 100%.



Q7 : Can the price be negotiated?

A: Yes, the price is negotiable. It can be changed according to your quantity or package



Q8 : How about inspection?

A: We have the whole inspection system from raw material to end products include temperature rise test,salt spraying test conductor type test,mechanical life test.



Q9 : What is payment terms?

A: T.T, Paypal,Western Union,Alibaba trade assurance and L/C is acceptable. 30% T/T in advance ,70% balance before shipment.



Q10 : What is the service offered by company?

A: We have the professional engineer team which can design and develop the mold to arrive different customer requirement.

We also have the sales team to offer good service from pre-sale to after-sale.



This product is usually customized.
We are a manufacturer and have a professional technical department that can design and provide solutions according to customer needs.
Please contact our sales personnel to obtain design drawings

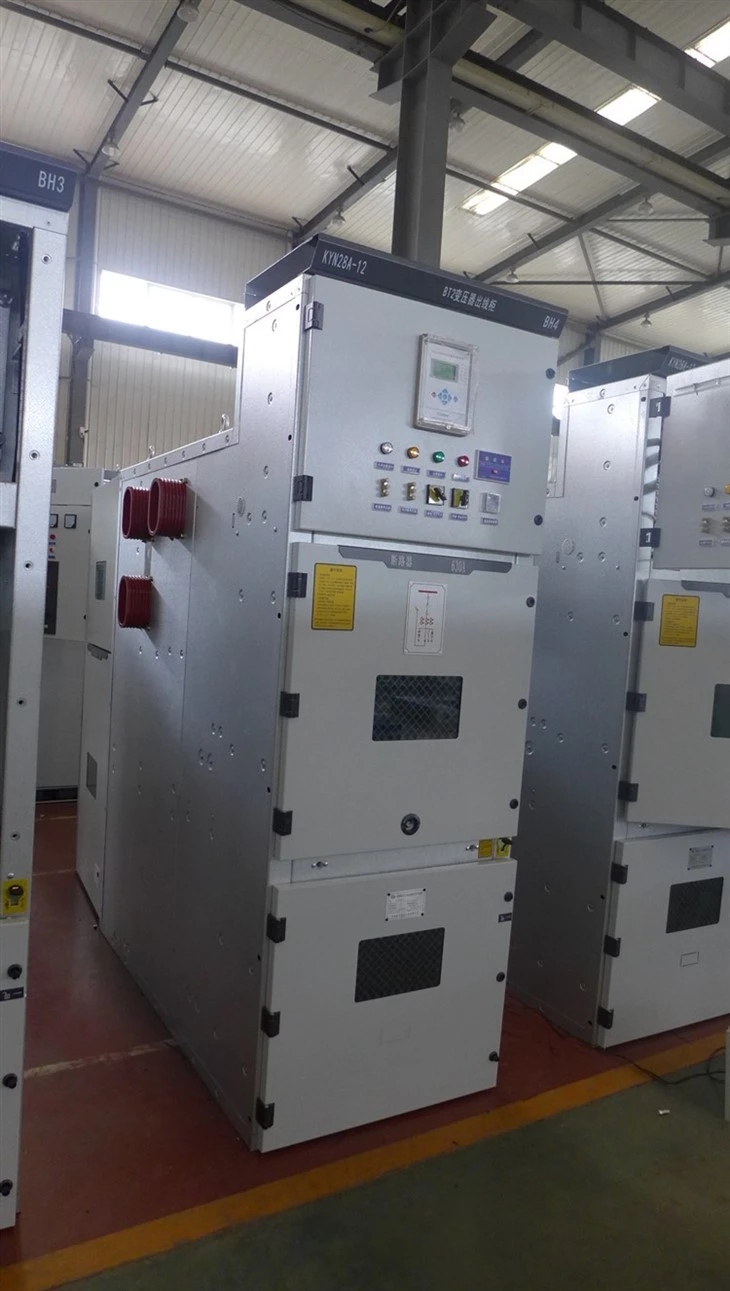

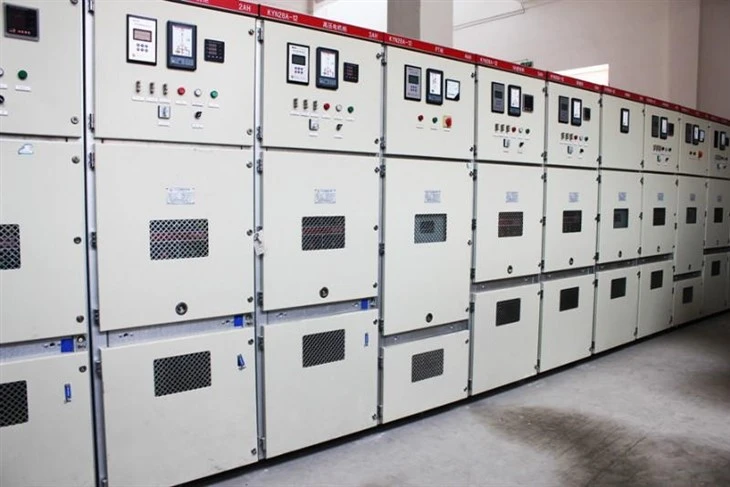

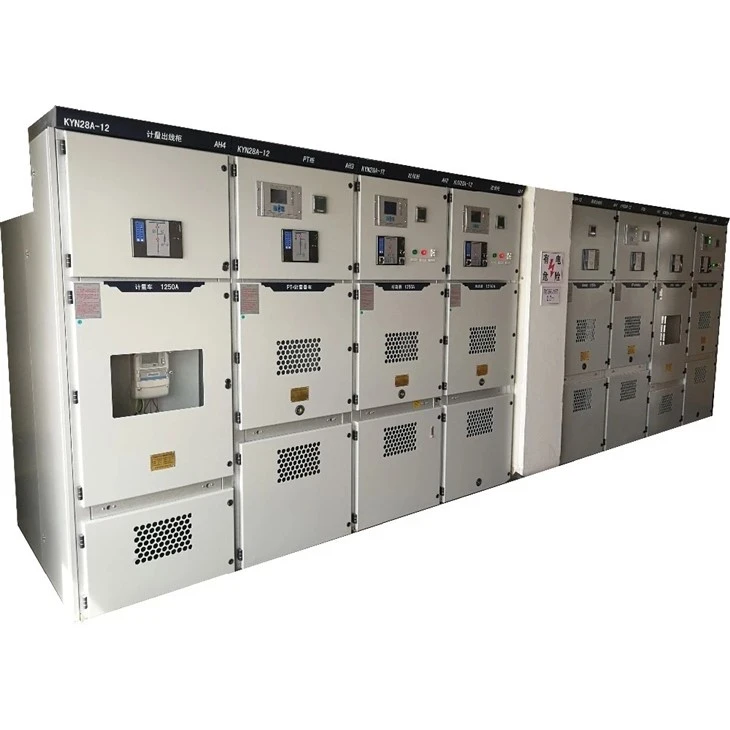

Here are our customer examples for your reference

Vietnamese customers

Datasheet
1.1 710-512-01-MVS1 Main Substation
Incoming Switchgear A01 B01 2
No Components Specification Unit Qty Maker
1 VCB
HVX12-50-31-F 275mm
Altitude ≤2000m
Opening voltage DC220V
Closing voltage DC220V
Energy storage voltage DC220V
Set 1 China
2 VT JDZ-10 10KV/√3/0.1KV/√3 Set 3 China
3 CT
LZZBJ9-12 3000/1A 5P20 10VA
5P20 5VA 5Fs5 5VA
Set 3 China
4 High voltage fuse XRNP1-12 0.5A Pc 3 China
5 Lightning arrester HY5WZ-17/50 Set 3 China
6 Intelligent control panel WY-9008A Pc 1 China
7 Short circuit and ground fault indicator EKL-4-1 Pc 1 China
8 Multifunctional electric instrument PD666-3S3 380V 5A Pc 1 China
9 Primary harmonic eliminator LXQ-12KV Pc 1 Fengyuan
10 Charged display DXN-12Q Pc 1 China
11 Temperature and humidity controller WY-CS-III Pc 1 China
12 Connecting piece JY-2 Pc 3 China
13 Junction box PJ1 Pc 1 China
14 Metering bracket Universal type Pc 1 China
15 Signal lamp ND16-22D/4 AC380V red Pc 1 CHNT
16 Signal lamp ND16-22D/4 AC380V green Pc 1 CHNT


IF NEED MORE DETAILES,PLEASE FEEL FREE YO CONTACT US
