Single Phase Overhead Distribution Transformer

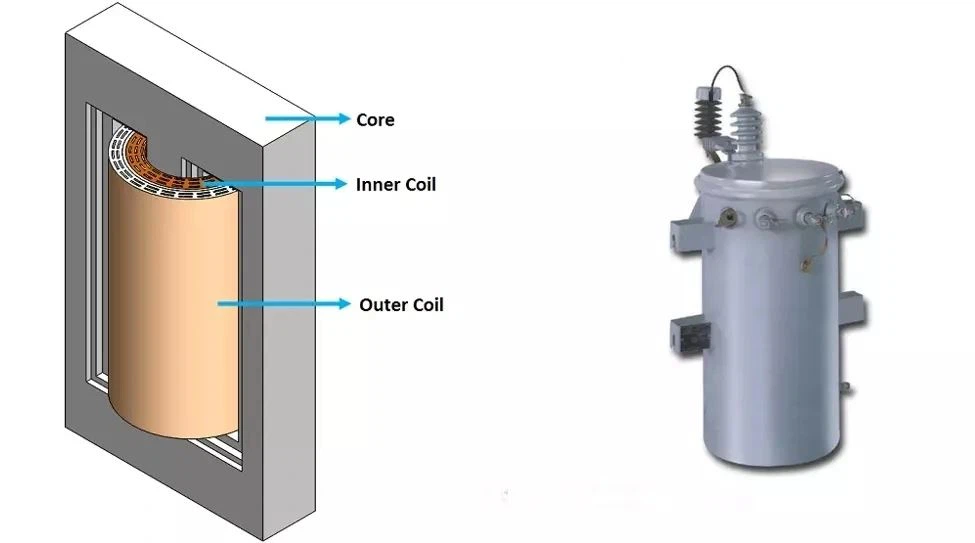

Single-phase pole-type distribution transformers are specially designed for distributed distribution networks and used to serve overhead distribution loads for urban and rural residents. They are also suitable for light and diverse power applications. These single phase overhead transformers are designed for the application conditions commonly encountered in public distribution systems.

Provides 2 basic transformer types and 2 metal core types of conventional type and fully self-protected type. For transformer cores, 2 types of materials are available: C.R.G.O. core and amorphous metal core.

It is designed from corrugated cardboard instead of oil storage tanks, so the oil is placed separately from the outside world. In addition, the coil and iron core are processed by vacuum drying. All these functions are designed to obtain better insulation performance. In return, the transformer does not need to change oil during long-term operation. Low maintenance cost and long service life.

Advantages

a. High reliability, advanced performance, and reasonable economic indicators.

b. The magnetic core connector is a three-step ladder, and the surface of the magnetic core is coated with a curing coating to reduce loss and noise.

c. The winding structure is novel and the oil circuit design is reasonable. Its newly designed insulation structure helps to enhance its mechanical strength and short-circuit resistance.

d. There are various types of fuel tanks and they all look good.

Note: 1. All products will be tested before delivery.

2. All products can be customized.

Conditions of Use

1. The maximum ambient air temperature shall not exceed 40°C, and the minimum temperature shall not be lower than -25°C;

2. The altitude shall not exceed 1000m. If special customized transformers and low-voltage components are used, the height can reach 4,000m;

3. The vertical inclination angle is not more than 5°, without severe vibration and impact;

4. The air humidity does not exceed 90% (25°C);

5. No gas and conductive dust that will seriously affect the insulation of the transformer, no explosion hazard and corrosion of electrical components;

6. Outdoor wind speed does not exceed 35m/s;

7. If the service conditions exceed the above range, special customized products can be provided.

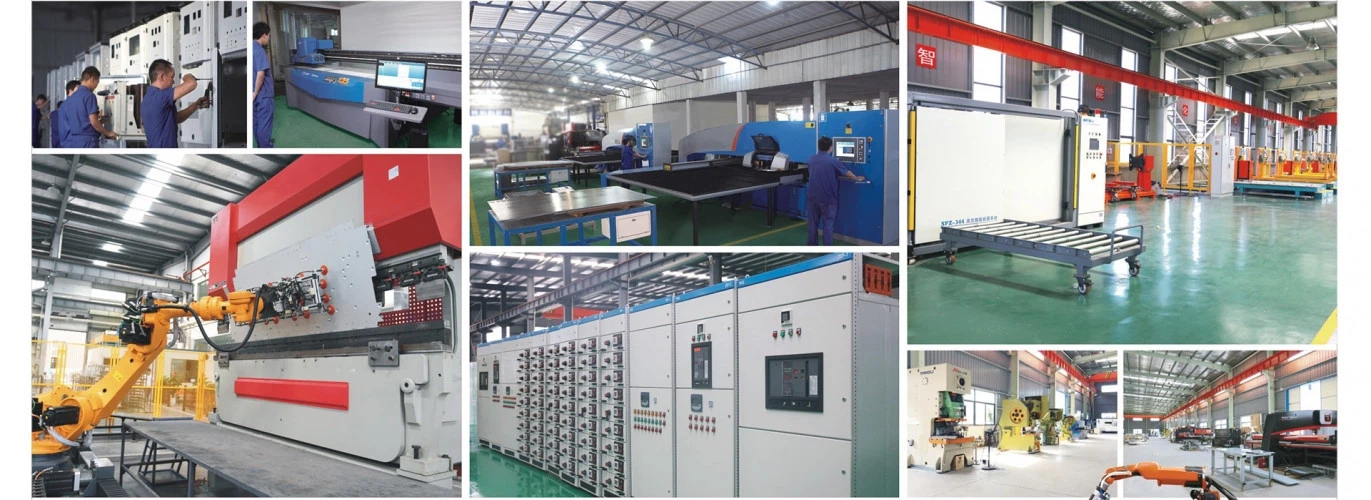

FACTORY

CERTIFICATE

EXHIBITION

COMPANY OVERVIEW

FAQ

Q5 : Is OEM/ODM available?

A: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.

Q6 : You are manufacturer or trading company?
A: We are factory, As a 100% professional manufacturer with 20 year's manufacturer experience, we could produce products according to customers' requirements and we could also control the quality of products 100%.

Q7 : Can the price be negotiated?

A: Yes, the price is negotiable. It can be changed according to your quantity or package

Q8 : How about inspection?

A: We have the whole inspection system from raw material to end products include temperature rise test,salt spraying test conductor type test,mechanical life test.

Q9 : What is payment terms?

A: T.T, Paypal,Western Union,Alibaba trade assurance and L/C is acceptable. 30% T/T in advance ,70% balance before shipment.
