Fixed Type High Voltage Switchgear Switch Cabinet

KYN28-12 armoured medium mounted metal enclosed switchgear is suitable for 3.6-12kv three-phase AC power grids, used for receiving and distributing electric energy and controlling, monitoring and protecting circuits. It can be used in the bus section system of single bus, single bus or double bus system.

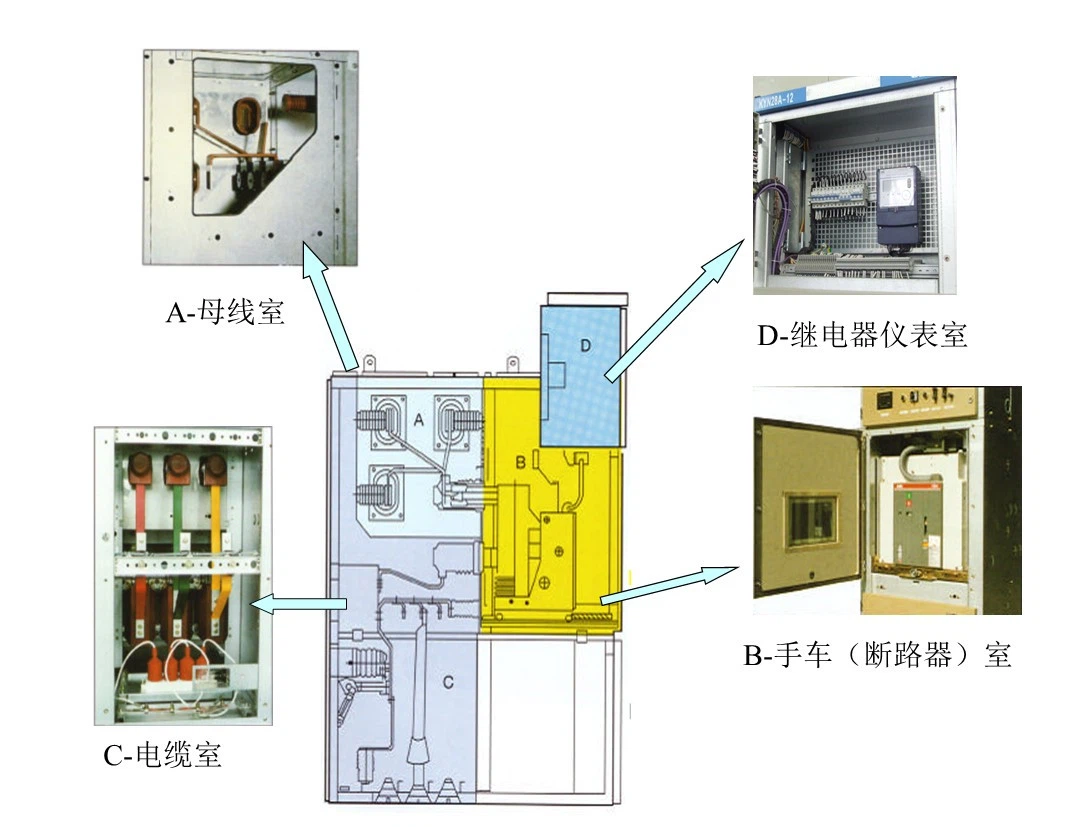

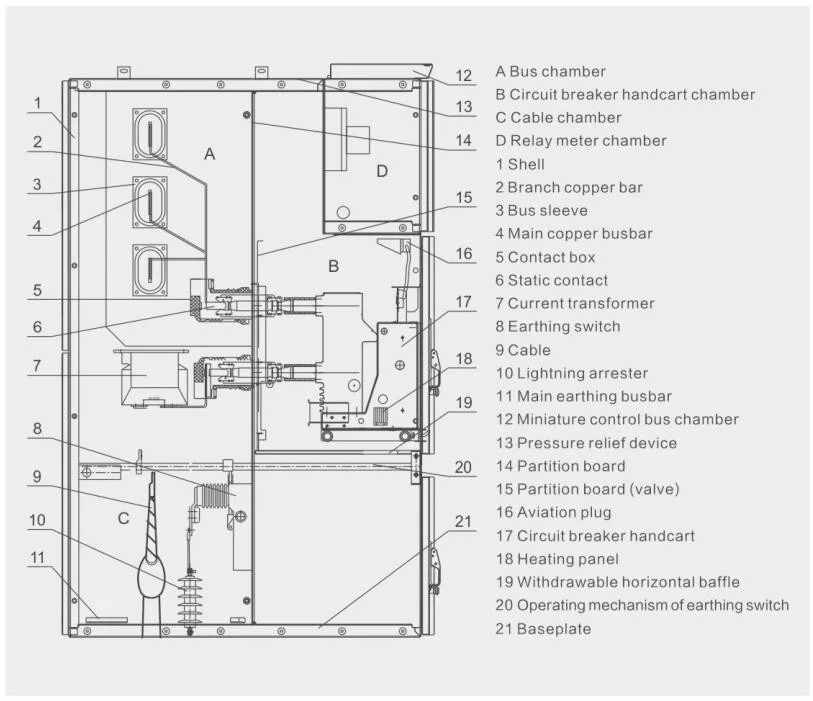

Functional units of high-voltage switchgear:

1. Main busbar room (generally arranged in two structures: "pin" or "1")

2. Circuit breaker room

3. Cable room

4. Relay and instrument room

5. Cabinet top small busbar room

6. Secondary terminal compartment

3、 Functions of the switchgear

The switchgear has functions such as overhead incoming and outgoing lines, cable incoming and outgoing lines, and busbar connection.

4、 Composition of switchgear

The switchgear should meet the relevant requirements of GB3906-1991 "3-35 kV AC Metal Enclosed Switchgear" standard, consisting of two parts: the cabinet body and circuit breaker. The cabinet body is composed of a shell, electrical components (including insulation parts), various mechanisms, secondary terminals, and wiring.

Five prevention measures for high-voltage switchgear

1. After the vacuum circuit breaker car inside the high-voltage switchgear is closed in the test position, the car circuit breaker cannot enter the working position. (Prevent load closing)

2. When the grounding switch inside the high-voltage switchgear is in the closed position, the car circuit breaker cannot be closed. (Prevent closing with grounding wire)

3. When the vacuum circuit breaker inside the high-voltage switchgear is closed, the back door of the panel and cabinet is locked with a mechanical device on the grounding knife. (To prevent accidental entry into live compartments)

4. The vacuum circuit breaker inside the high-voltage switchgear is closed during operation, and the grounding switch cannot be put into operation. (Prevent live hanging of grounding wires)

5. The vacuum circuit breaker inside the high-voltage switchgear cannot exit the working position of the trolley circuit breaker when it is working and closing. (To prevent loaded knife brakes)

Service Conditions

◎ Ambient airtemperature: -15°C~+40°C;

◎ Relative humidity: Daily average 95%，and daily average of water vapor pressure < 2.2kPa;

◎ Monthly average «90%, and monthly verage of water vapor pressure < 1.8kPa;

© Altitude: ^1000m;

◎ Seismic intensity: not beyond Ms8.

◎ Ambient air should be free of pollution of corrosive or flammable gas or vapor;

◎ No obvious vibration;

Features

1: STRICT protection step to ensure personal safety

2: The cable room can be installed as many as 9 single-core cables

3: Operation and testing positions will be established for the handcart, and both positions are equipped with safe and reliable positioning device and display device

4: The enclosure is completely assembled from aluminized and galvanized steel plate, which are machined and bent by machine tool and then bolted.

5: It has high mechanical strength and its neatness and beauty is ensured.

6: The switchboard door is sprayed with plastic, also has strong capacity of impact resistance and corrosion protection.

7: The primary switch may be provided with VD4 vacuum circuit breaker and C3 series of fixed type load switch from ABB, various domestic vacuum circuit breakers (such as VS1, VH1, VK, ZN28) may also be provided in lieu of the same foreign products.

8: Front door is installed with a observation window to check the operating state of the components inside the room

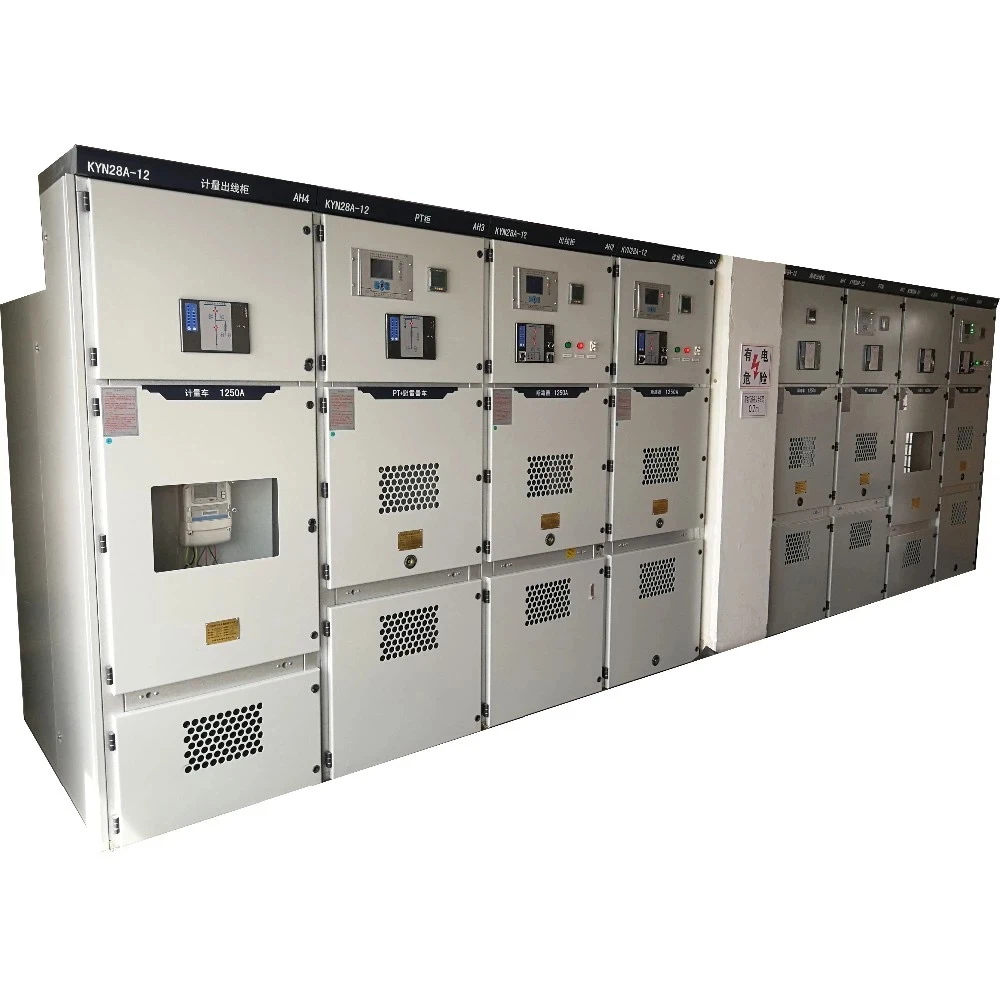

PRODUCT PHOTO

FACTORY WORKSHOP

COMPANY OVERVIEW

Jiyuan Fengyuan Electrical Equipment Co., Ltd was established in 1984 and is a designated enterprise specializing in the production of high and low voltage switch cabinets by the State Grid Corporation of China.

We have more than 30 years professional experience in high and low voltage complete switchgear cabinet,box type substation,transformer,etc, have CE,ISO, GB,CQC,certificate

Factory directly,Professional manufacturer, All can be customized according to your local requirement

Welcome to inquiry

EXHIBITION

PACKING&DELIVERY

FAQ

Q: Are you the manufacturer or trader?

A: We are a professional and leading manufacturer located in Henan,China.

Q: What is your after-sales service and delivery?

A: We can reply the customer's question and resolve it within 24 hours everyday and give full technical support in time about our products.The delivery is base on the order quantity.

Q: What is the quality warranty about your product ?

A: About the quality warranty , we have the quality certificates like CCC, ISO9001..etc for our H.V & L.V switchgears & electrical distribution equipment and other products.

Q: Do you accept ODM and OEM?

A: Yes. Our R & D team owns latest technology ,can develop and produce products base on the customers' drawing with their own brand.

Q: What is your payment terms?

A: 1-Irrevocable L/C at sight for order.

2-30% T/T in advance as deposit ,balanced against the shipping documents

This product is usually customized.

We are a manufacturer and have a professional technical department that can design and provide solutions according to customer needs.

Please contact our sales personnel to obtain design drawings

Here are our customer examples for your reference

Uzbekistan customer

Datasheet

1.1 710-512-01-MVS1 Main Substation

Incoming Switchgear A01 B01 2

No Components Specification Unit Qty Maker

1 VCB

HVX12-50-31-F 275mm

Altitude ≤2000m

Opening voltage DC220V

Closing voltage DC220V

Energy storage voltage DC220V

Set 1 China

2 VT JDZ-10 10KV/√3/0.1KV/√3 Set 3 China

3 CT

LZZBJ9-12 3000/1A 5P20 10VA

5P20 5VA 5Fs5 5VA

Set 3 China

4 High voltage fuse XRNP1-12 0.5A Pc 3 China

5 Lightning arrester HY5WZ-17/50 Set 3 China

6 Intelligent control panel WY-9008A Pc 1 China

7 Short circuit and ground fault indicator EKL-4-1 Pc 1 China

8 Multifunctional electric instrument PD666-3S3 380V 5A Pc 1 China

9 Primary harmonic eliminator LXQ-12KV Pc 1 Fengyuan

10 Charged display DXN-12Q Pc 1 China

11 Temperature and humidity controller WY-CS-III Pc 1 China

12 Connecting piece JY-2 Pc 3 China

13 Junction box PJ1 Pc 1 China

14 Metering bracket Universal type Pc 1 China

15 Signal lamp ND16-22D/4 AC380V red Pc 1 CHNT

16 Signal lamp ND16-22D/4 AC380V green Pc 1 CHNT

17 Signal lamp ND16-22D/4 AC380V white Pc 1 CHNT

18 AC miniature circuit breaker NB1-63/2P C6A 6kA(R) Pc 2 Fengyuan

19 AC miniature circuit breaker NB1-63/3P C3A 6kA(R) Pc 1 Fengyuan

20 DC miniature circuit breaker NB1Z-63 2P C6 Pc 1 Fengyuan

21 AC miniature circuit breaker NB1-63/3P B2A 6kA(R) Pc 1 China

22 Universal test terminal RURTK/S Pc 30 China

23 Universal terminal block RUK 5B Pc 18 China

24 Cabinet top small bus Ø 6 copper bar m 11 Fengyuan

IF NEED MORE DETAILES,PLEASE FEEL FREE YO CONTACT US
