ELectrical Panel 10 kV Air Insulated Switchgear Ring Main Unit
Ring Main Unit(RMU) with SF6 load switch as the main switch, the whole cabinet is suitable for power distribution automation, and it also has compact and expandable metal-enclosed switchgear. It has the characteristics of simple structure, flexible operation, reliable interlocking and convenient installation. The VCB series of permanent magnet mechanism can also be assembled with RCB.
Service environment a) Air temperature: highest temperature: +40℃; lowest temperature: -5℃ b) Humidity: monthly average humidity 95%; daily average humidity 90%. c) Maximum installation height: 2000m d) Obviously there is no ambient air polluted by corrosive and combustible gas, steam, etc. e) No frequent violent shaking |
|
| No | Item | Unit | Parameter | ||
| 1 | Rated voltage | kV | 12 | 24 | 36 |
| 2 | Rated frequency | Hz | 50/60 | ||
| 3 | Rated current | A | 630/800 | 1630 | |
| 4 | 1 min power frequency withstand voltage(wet/dry) | kV | 38/48 | 50/60 | 70/80 |
| 5 | Lightning impulse withstand voltage | kV | 75 | 125/150 | 195 |
| 6 | Rated short circuit breaking current(peak) | kV | 80 | 63 | 50/40 |
| 7 | Rated active load and close circuit breaking current | kA | 63 | 50 | 50/40 |
| 8 | Rated transferring current | A | 1700 | 1200 | 800 |
| 9 | Rated short circuit making current(peak) | kA | 80 | 63 | 50/40 |
| 10 | Rated cable(line) charging breaking current | A | 50 and 10 | ||
| 11 | Cable charge breaking current in earthing fault | A | 20 | 20 | 50 |
| 12 | Rated withstand current(peak) | kA | 80 | 63 | 50/40 |
| 13 | Short time withstand current(2s) | kA | 31.5 | 25 | 16 |
| 14 | Mechanism life | Times | 5000 | 2000 | 2000 |
Our Delivery
We can deliver the goods by air, sea or express. We can provide you with high-quality transportation companies to facilitate your choice. Our delivery date is usually 15 to 20 days. If special customization is required, the time may be delayed.

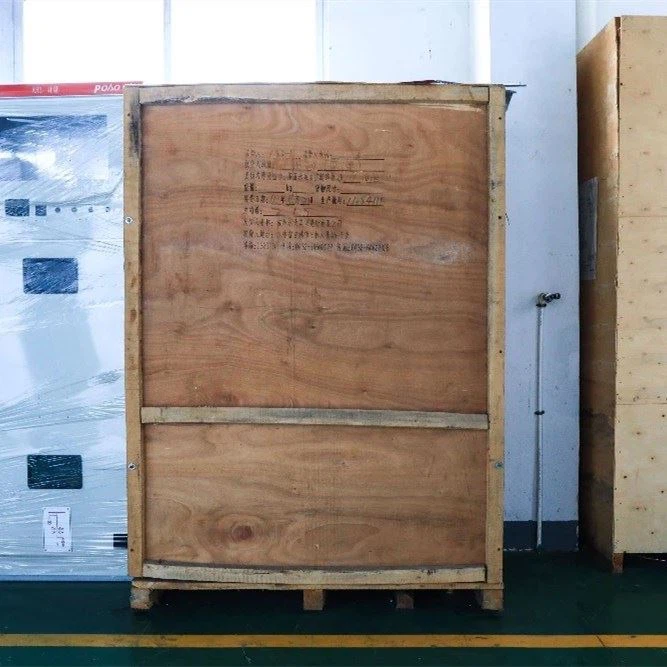

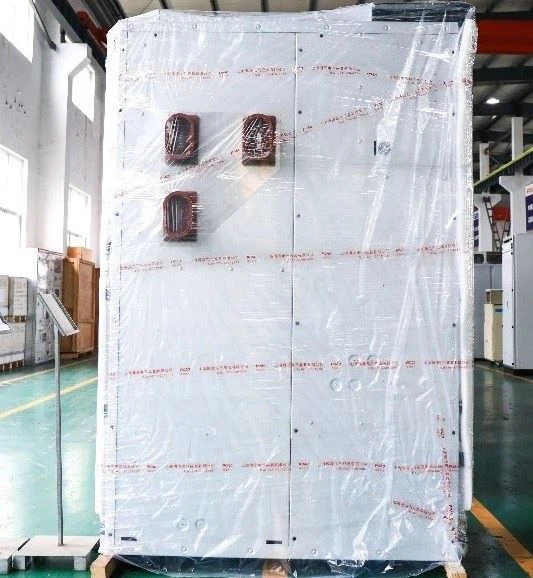

Standard wooden box for outer packaging
|
|
If you need specially customized packaging, please inform us in advance!
Related products
Company introduction
Performance Guarantee
Once you buy the product manufactured by Fengyuan Power Technology can get 24 months performance guarantee after delivery date, or if there is any special requires, please do not hesitate to contact us...
