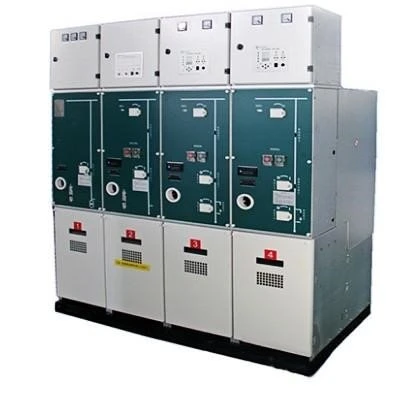

CKSS-12 Solid Insulated Power Distribution Box
solid insulated switchgear is suitable for middle voltage power distribution system with a rated voltage of less than 10kV and a rated current under 1250A. It is more reliable than the SF6 ring main unit, and is more suitable for a wider range of applications.
Description
CKSS-12 solid insulated power distribution box
FEATURE
• No SF6 gas inside, avoiding pressure tank designing.
• All live parts are sealed or embedded in the epoxy resin and silicon rubber, fully insulated and wholly enclosed structure, safety protection level: IP67.
• All operating mechanism sealed inside a box, truly maintenance-free.
• Enhanced phase separation design, independent phase insulation to avoid the fault between phases.
• Standard modular design to facilitate unit extension, modification and replacement.
• Switch working position of each phase could be observed independently.
• Safe, smart, environment-friendly, flexible assembly enabled, good performance to apply in special environments.
• Multiple mechanical interlock to achieve 'five-protection' function.
• Complete indoor & outdoor application solution.
APPLIED ENVIRONMENT
Coastal area: fully sealed structure of the mechanism, professional high salt spray testing equipment to ensure long-term application in coastal areas.
Low temperature area: The solid insulated switchgear doesn't need SF6, so the potential problem caused by insulation gas being liquified under low temperature can be avoided.
Plateau area: Due to the absence of SF6, the problems caused by the big pressure difference between the inside and outside of the gas tank in high altitude areas can be avoided.
Explosion forbidden places: The switch adopts vacuum interrupter sealed with epoxy resin bushing which can prevent the gas exposure and explosion.
Basement with workers: The density of SF6 is 5 times higher than air on the same condition. So if the SF6 in a traditional RMU leaks out, it will accumulate in low area, so the workers there could be harmed or suffocated.
Frequent switching operation situation: Switch operations for solid dielectric designed RMU reaches 20,000 times.
Areas with high requirements for environmental protection: Our solid insulated switchgear doesn’t contain SF6, which is a kind of greenhouse gas.
Windy and sandy area:The IP rating of the live parts reaches IP67. The control circuit compartment is specially treated, so our product can work in windy and sandy area for a long time.
High temperature environment: Suitable for special areas of high temperature environment, the maximum temperature of normal operation is up to 70 ℃. The high temperature environmental test has been performed.
PRODUCTION LINE
CERTIFICATE
EXHIBITION
COMPANY OVERVIEW
FAQ
Q5 : Is OEM/ODM available?
A: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.
Q6 : You are manufacturer or trading company?
A: We are factory, As a 100% professional manufacturer with 20 year's manufacturer experience, we could produce products according to customers' requirements and we could also control the quality of products 100%.
Q7 : Can the price be negotiated?
A: Yes, the price is negotiable. It can be changed according to your quantity or package
Q8 : How about inspection?
A: We have the whole inspection system from raw material to end products include temperature rise test,salt spraying test conductor type test,mechanical life test.
Q9 : What is payment terms?
A: T.T, Paypal,Western Union,Alibaba trade assurance and L/C is acceptable. 30% T/T in advance ,70% balance before shipment.
