35kv Medium Voltage Metal Clad RMU Panels

Safety • All live parts are sealed or embedded in the epoxy resin and silicon rubber, fully insulated and wholly enclosed structure, safety protection level: IP67. • Enhanced phase separation design, independent phase insulation to avoid the fault between phases. • Switch working position of each phase could be observed independently, which improves operation safety.

Send Inquiry

Description

FYG-12 (3)

FYG-12 (2)

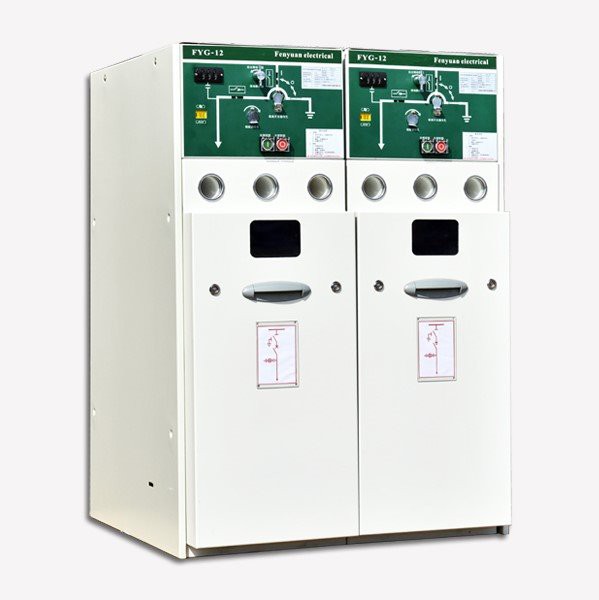

FYG-12

Features

1.Safety

• All live parts are sealed or embedded in the epoxy resin and silicon rubber, fully insulated and wholly enclosed structure, safety protection level: IP67.

• Enhanced phase separation design, independent phase insulation to avoid the fault between phases.

• Switch working position of each phase could be observed independently, which improves operation safety.

2.Multi-environmental application

• Applicable to low temperature areas, high altitude areas, high humidity areas, high corrosion areas, low-lying areas and explosion forbidden places.

3.Flexibility

• Standard modular design to facilitate circuit extension, modification and replacement.

• Feasible to any replacement in both circumstances of any unit in fault and according user needs.

• Smaller dimension makes it more convenient to be moved, transported or replaced.

4.Environment-friendly

• Epoxy resin is employed instead of SF6.

Description	Unit
Rated voltage	kV	12	12	12
Power frequency withstand voltage phase to phase/earth	kV	42	42	42
Power frequency withstand voltage Between open contacts	kV	48	48	48
Impulse withstand voltage phase to phase/earth	kV	75	75	75
Impulse withstand voltage Between open contacts	kV	85	85	85
Rated frequency	Hz	50	50	50
Rated current	A	630		630
Rated short-time withstand current (4s)	kA	20/25		20/25
Rated peak withstand current	kA	50/63		50/63
Rated active load breaking current	A	630
Rated closed loop breaking current	A	630
Mechanical lifetime	Ops	10000	10000	10000
