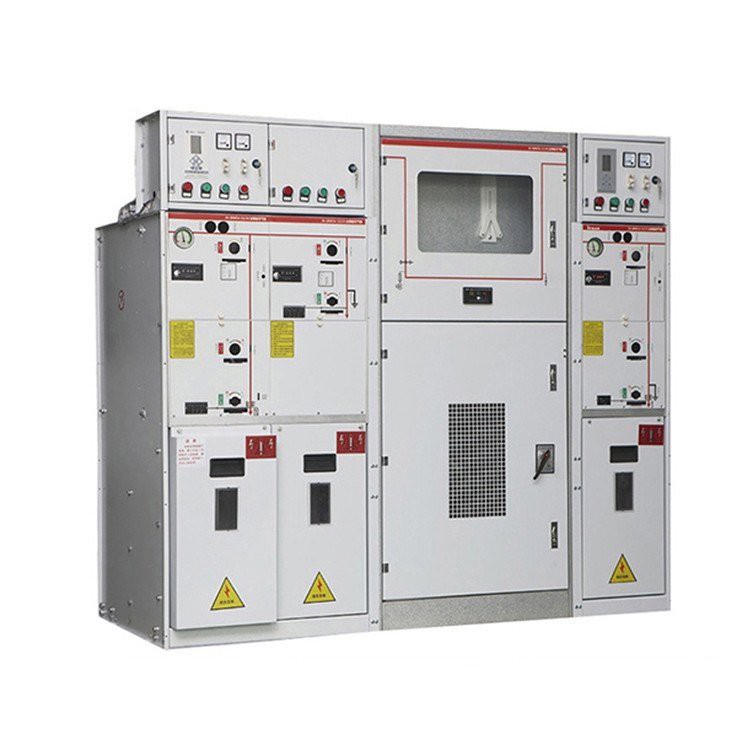

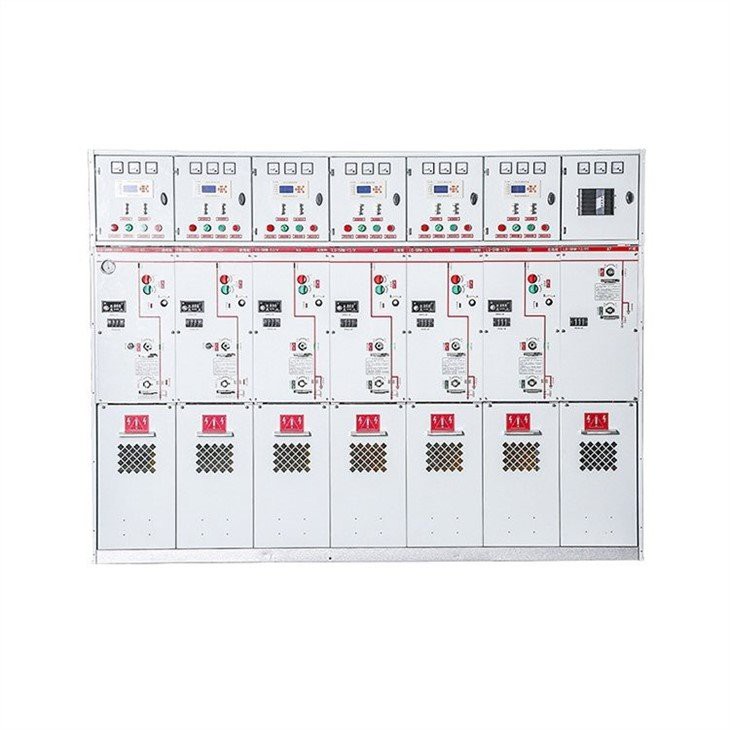

11kv SF6 Switchgear

High voltage SF6 switchgear is suitable for AC 50Hz, 12kV power network. It has the characteristics of unit type, modularization, expandability, small size, light weight, simple structure, flexible operation, convenient installation, etc., and adopts the sensing technology and the latest comprehensive protection. Advanced technology and flexible assembly solutions to meet the ever-changing needs of the market.

It is widely used in power distribution in urban residential areas, small distribution stations, small openings and closings, shopping malls, airports, railways and other fields.

Working conditions

1. Ambient temperature: not higher than +40℃, not lower than -15℃.

2. Altitude: no more than 1000m.

3. Earthquake intensity: no more than 8 degrees.

4. Wind pressure: ≤700pa.

5. Places without fire, explosion hazard, serious pollution, chemical corrosion and severe vibration.

Features

The busbar room is placed on the upper part of the cabinet, and the busbar runs through the entire row of switch cabinets.

The load switch selects the top unit of SF6 load switch.

Ample cable room, the lower outlet is connected by unshielded cable head, and the installation is simple and convenient.

The mechanism room is equipped with a spring operating mechanism and a mechanical interlocking device, which is simple and reliable in operation.

Product Completeness

The product is delivered with the following documents and accessories:

1. Product Certificate of Conformity

2. Installation manual

3. Packing List

4. Product engineering design data (including system diagram, secondary wiring diagram, equipment list, etc.)

5. Switch cabinet key, circuit breaker energy storage crank, three-position isolation switch operating crank.

6. Technical documents and accessories such as installation and operation manuals of main components in the switchgear.
