High Voltage Ring Main Unit
HXGN15-12 SF6 high voltage ring main unit is used in power supply system with rated voltage of 12KV and rated current of 630A and below. It can also be installed in a prefabricated substation as the control and protection of the power system. This product is equipped with a sulfur hexafluoride...
Description

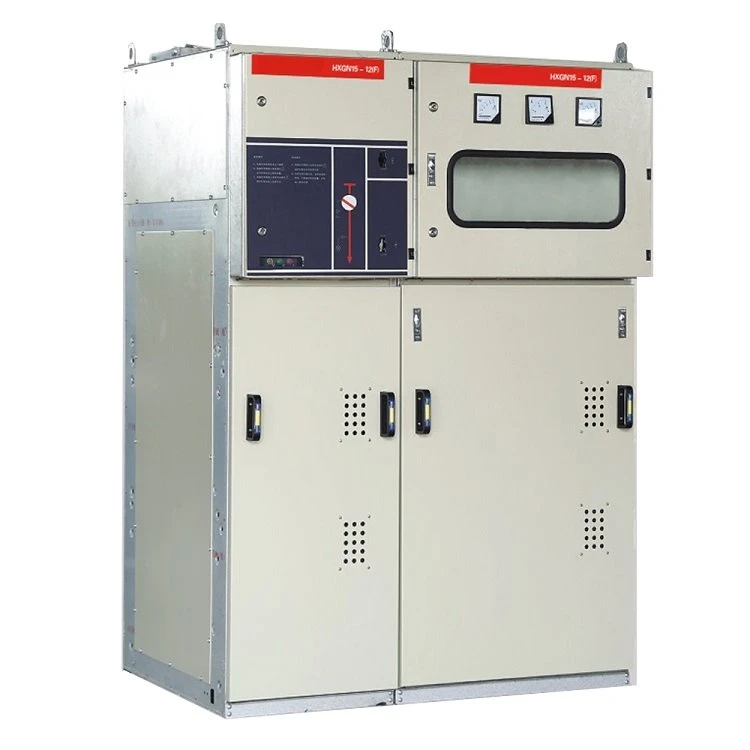

HXGN15-12 SF6 high voltage ring main unit is used in power supply system with rated voltage of 12KV and rated current of 630A and below. It can also be installed in a prefabricated substation as the control and protection of the power system.
This product is equipped with a sulfur hexafluoride load switch or a load switch-fuse combination electrical appliance with an insulating shell.
HXGN15-12 high voltage ring main unit has the characteristics of small size, light weight, easy operation, light operating force, reliable interlocking and maintenance-free. It is a new generation of high-voltage ring main unit required for urban power grid transformation and construction.
Normal use conditions
1. Ambient air temperature: -15℃~+40℃;
2. Altitude: 1000m and below;
3. Humidity conditions:
The daily average value is not more than 95%, and the daily average value of water vapor pressure is not more than 2.2kPa.
The monthly average value is not more than 90%, and the monthly average value of water vapor pressure is not more than 1.8kPa.
4. Earthquake intensity: no more than 8 degrees.
5. There is no obvious pollution place such as corrosive or flammable gas.
Note: When the above normal use conditions are exceeded, the user can negotiate with the company.
Company Information
The main products are box-type substations, transformers, KYN61-40.5, KYN28A-24, KYN28A-12, XGN2-10, HXGN-10 high-voltage switchgear, XGN ring main unit, MNS, GCS, GCS, GGD, XL and other low-voltage power distribution equipment.
Certificates
Packing & Delivery
FAQ
Q1: Are you a factory?
A. Yes, our factory is located in Henan Province, China.
Q2: Is the sample free?
A: We welcome your sample orders for switchgear, ring main unit, prefabricated substation, transformer and other products, they are not free.
Q3: What payment methods do you accept?
A: We accept T/T, L/C. Western Union, etc.
Q4: Are you always free?
A: Yes, I am online even during the holidays!
I will try my best to satisfy you, if you need any help in China please contact me. We are your right choice.
