Outdoor Three Phase Power Transformer

Outdoor Three Phase Power Transformer 1. Power capacity: According to customer needs 2. Voltage level: According to customer needs 3. Voltage regulation type: offline or with load 4. Tapping range: ±2x2.5% (According to customer requirements) 5. Frequency: 50Hz or 60Hz 6. Stage: Three 7....

Send Inquiry

Description

Outdoor Three Phase Power Transformer

1. Power capacity: According to customer needs

2. Voltage level: According to customer needs

3. Voltage regulation type: offline or with load

4. Tapping range: ±2x2.5% (According to customer requirements)

5. Frequency: 50Hz or 60Hz

6. Stage: Three

7. Connection symbol: Dyn11

8. Short circuit impedance: standard impedance

9. The altitude does not exceed 1000m, and the ambient temperature does not exceed 40OC. If these conditions cannot be met, we will modulate the parameters according to the standard.

Distribution Power Transformer

Features:

1. The corrugated oil tank seal structure and shell are used to prevent the transformer from contacting air and water, reduce the aging degree of the oil, and extend the service life of the transformer. The volume change of the transformer oil thermal expansion and contraction is adjusted through the elastic deformation of the corrugation.

2. The product structure is outdoor, without oil pillows, and has a high level of anti-fouling. There is no need to replace the transformer oil during the normal use period, and it is truly maintenance-free to ensure the safe operation and reliability of the power grid.

3. The transformer has a pressure relief safety device. When the fault pressure of the transformer is too high, the pressure relief valve can be used to reliably and safely discharge the pressure to prevent the accident from expanding.

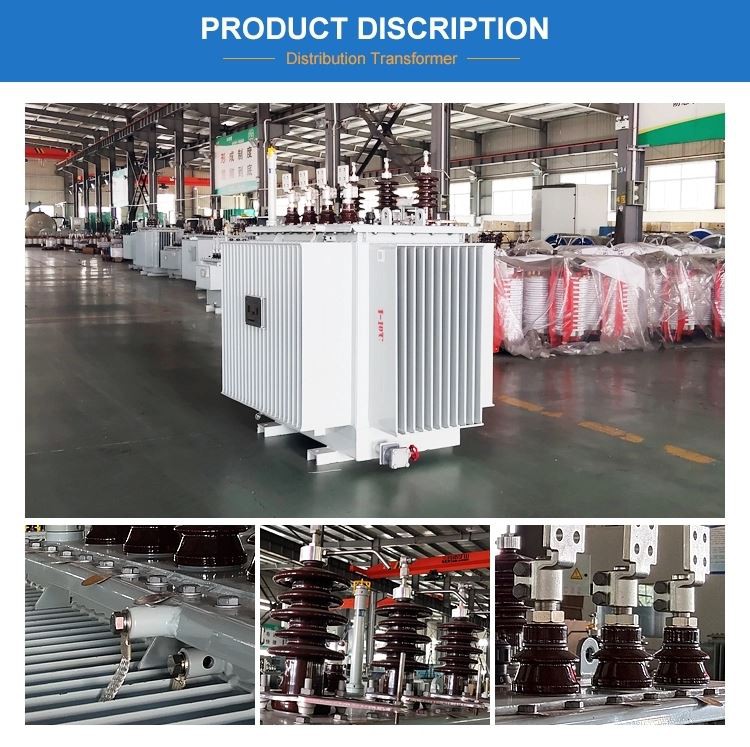

Oil Immersed Distribution Transformers
