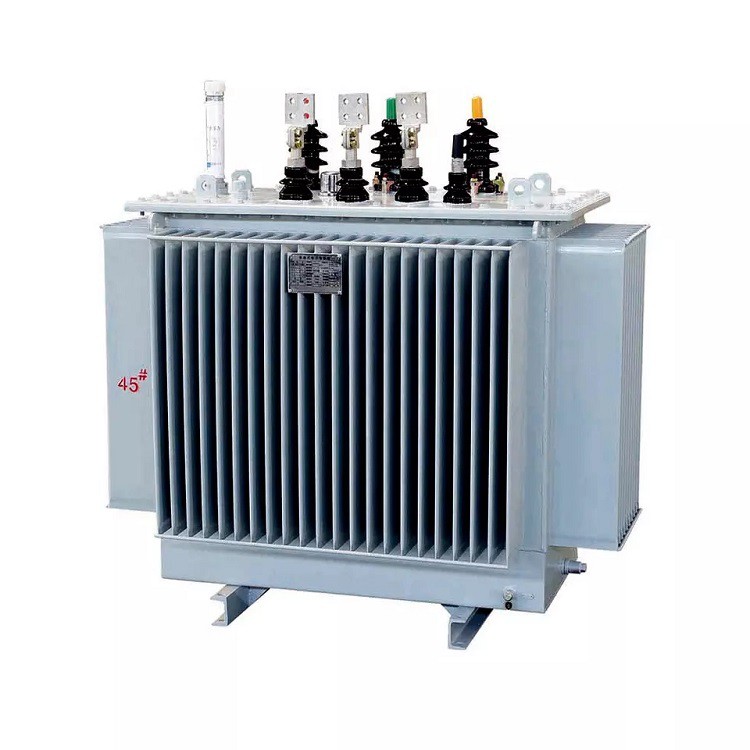

Oil-Filled Power Transformer
The three-phase oil-immersed fully-sealed distribution transformer is different from ordinary oil-immersed transformers in that it cancels the oil conservator, and uses the corrugated plate heat sink of the oil tank to dissipate heat and cool, and its elastic expansion and contraction compensate...
Description
The three-phase oil-immersed fully-sealed distribution transformer is different from ordinary oil-immersed transformers in that it cancels the oil conservator, and uses the corrugated plate heat sink of the oil tank to dissipate heat and cool, and its elastic expansion and contraction compensate for the increase or decrease of the oil volume. All series of oil-filled power transformers are suitable for 10KV, 20KV, 35KV power transmission and distribution systems. It can be used for power and lighting in residential areas, commercial streets, industrial and mining enterprises and rural areas.
Working environment
1. Maximum ambient temperature: +40℃
2. Minimum ambient temperature: -25℃
3. Altitude: <1000m
4. Maximum monthly average relative humidity: 90% (20℃)
5. Installation location: Install in a place without fire, explosion hazard, serious pollution, chemical corrosion or severe vibration, indoor or outdoor.
Features
Energy saving
The newly designed product has better product performance and further reduces the no-load loss and load loss indicators.
Long service life
The fully sealed transformer box cover and box edge are bolted or welded to isolate the contact between oil and air. The insulation will not be affected by moisture, which greatly reduces the insulation aging speed and improves the service life.
Maintenance free
A fully-sealed transformer requires no maintenance.
Low noise
The design is compact, and new materials and processes are applied to reduce noise.
Small size and beautiful appearance
The transformer oil tank adopts corrugated plate heat sink. When the oil temperature changes, the change of the oil volume is adjusted and compensated by the elastic expansion and contraction of the corrugated sheet. The corrugated fuel tank is beautiful in appearance and small in size and occupies a small area.
