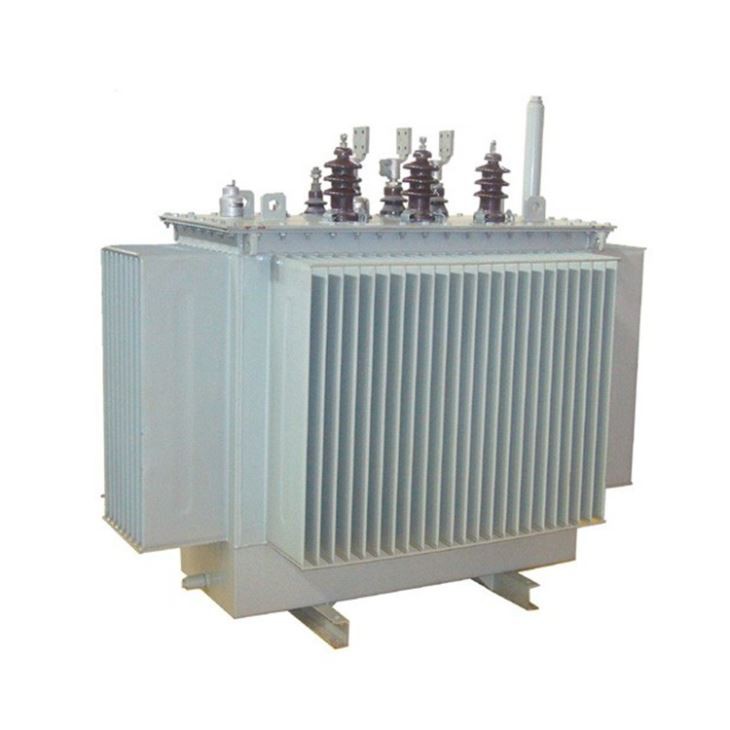

11kV Three Phase Oil Immersed Transformer

High Efficiency Oil Type Distribution three-phase transformer is widely used in rural power grid transformation, urban power grid transformation, and reasonable customized service for foreign customers.

Send Inquiry

Description

Product description：

Technical parameters:

Rated Capacity	Voltage Combination			Winding Connection Grade	No-load Loss (W)	Load Loss (W)	Short Circuit Impedance (%)	No-load Current (A)
	High Voltage (kV)	Tapping Range Of High Voltage (%)	Low Voltage (kV)	Winding Connection Grade	No-load Loss (W)	Load Loss (W)	Short Circuit Impedance (%)	No-load Current (A)
30	6 6.3 6.6 10 10.5 11	±5 ±2×2.5	0.4	Dyn11	100	630	4.0	1.8
50					130	910		1.6
63					150	1090		1.5
80					180	1310		1.5
100					200	1580		1.4
125					240	1890		1.4
160					280	2310		1.3
200					340	2730		1.2
250					400	3200		1.1
315					480	3830		1.1
400					570	4520		1.0
500					680	5430		1.0
630					810	6200	4.5	0.9
800					980	7500		0.8
1000					1150	10300		0.8
1250					1360	12000		0.7
1600					1640	14500		0.6
2000					1940	18300		0.6
2500					2290	21200		0.5

Widely used:

Energy Saving Oil Filled Transformer widely used in power transmission and distribution system. such as power,transportation,mining, metallurgy ,construction,petrochemical ,communication;

High Reliability Oil Distribution Transformer widely used in urban power network construction and transformation.

Photo:

52.1(001) 52.2(001) 52.3(001) 52.4(001)

OUR SERVICE:

●According to customer's technical parameters, design reasonable products to meet customer's requirements；

●Our strict production, quality control and on-time delivery；

●According to the requirements of customers, installation can be guided by telephone or installed on site；

OUR ADVANTAGE:

1. Long service life

Energy Efficient distribution Transformer have a long service life of 30 years. The conservator tanks of our transformers are fully sealed, bolted or welded to the edge without any clearance, so the oil in the transformers are insulated from air, prolonging the service life.

2. Protecting the insulation paper and insulation cardboards from oxidation.

3.Excellent insulation cuts insulation distance and cost.

4.Pre-drying Treatment;

5.Low Loss, Low Local Discharges, Low Noise, Strong Heat Radiation, Capable of Running under 150% Nominal Load with the aid of Forced Air Cooling.

6.High Performance Oil Immersed power Transformer has a good performance;

7.Energy Saving Oil Filled Transformer

If you need more information about our products, feel free to contact us!
