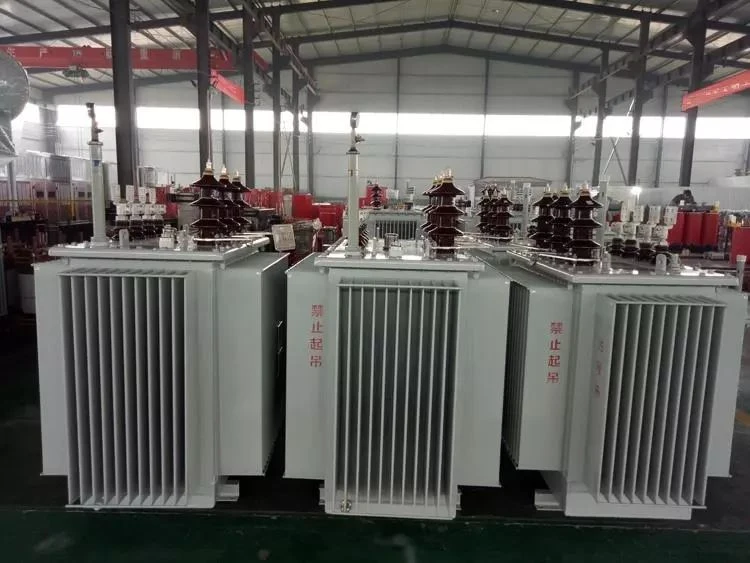

10 Kv Oil Immersed Transformer
Rated capacity: 30-2000kva
Rated voltage: 10kv
Connection group number: Dyn11, Yyno
Application Environment:
Maximum ambient temperature: +40℃2. Minimum ambient temperature: -25℃. Install in a place where there is no fire, explosion hazard, serious pollution, chemical corrosion and severe vibration.
Description
10 kv Oil Immersed Transformer
Reliable structure
Based on the traditional structure and mature technology, Fengyuan Power has made many improvements to the oil immersed transformer, such as adopting:
1. Spiral coil with longitudinal oil passage, better internal heat dissipation.
2. Improved the effective support of the coil end face, and the ability to withstand short-circuit current is stronger.
3. The new hoisting structure and positioning structure of the body are adopted to ensure more reliable in long-distance transportation and operation.
4. We also have many unique and reliable structures to serve you.
5. Choosing a transformer with a higher performance level will have a higher level of technical content.
Quality materials
The oxygen-free copper wire with lower resistivity is selected, and after a series of additional surface treatments, it is smoother and has no burr sharp corners, so that the load loss of the transformer is lower and the electrical performance is more reliable.
Use high-quality silicon steel sheets. With the improvement of performance level, the use of silicon steel sheet with lower unit loss makes the transformer no-load loss lower.
Use high-quality laminated wood insulation, which will never crack. Even under the action of short-circuit current, it doesn't move.
Choose transformer oil that has been deeply filtered, with lower water, gas, and impurity levels, and the transformer will work more reliably.
Use high-quality rubber sealing materials to effectively prevent aging and prevent leakage.
All raw materials undergo quality inspection to effectively prevent aging and prevent leakage.
All raw materials undergo quality inspection, and all raw material manufacturers have undergone strict inspections in accordance with the national standard ISO9000.
Rated Power (kVA) | High Voltage (kv) | H.V.Tap range | Low Voltage (kv) | Connection symbol | Short Circuit Impendence | No-load loss(W) | On-load loss(W) | No load current (%) |
400kVA | 10kv 11kv 20kv 35kv | ±5% | 0.4 | Ydn11 Yyno | 4 4.5 5.5 6 | 570 | 4300 | 0.45 |
500kVA | 680 | 5410 | 0.45 | |||||
630kVA | 810 | 30800 | 0.4 | |||||
800kVA | 980 | 7500 | 0.4 | |||||
1000kVA | 1150 | 10300 | 0.35 | |||||
1250kVA | 1360 | 12000 | 0.3 | |||||
1600kVA | 1640 | 145000 | 0.6 | |||||
2000kVA | 1950 | 19140 | 0.6 | |||||
2500kVA | 2340 | 22220 | 0.5 |
About us:
Henan Fengyuan Power Technology Co., Ltd., founded in 2010 with registered capital of 20 million yuan, a fixed asset of 50 million yuan, more than 200 employees and an annual output value of nearly 100 million yuan, located in Jiyuan City, Henan, China.
Certificates
Packing
Contact us:
Contact: Charles Du
Mobile: +86 18639199897
E-mail: Fengyuan800@outlook.com
If you want to know more about our products, please contact us. Looking forward to serving you.
