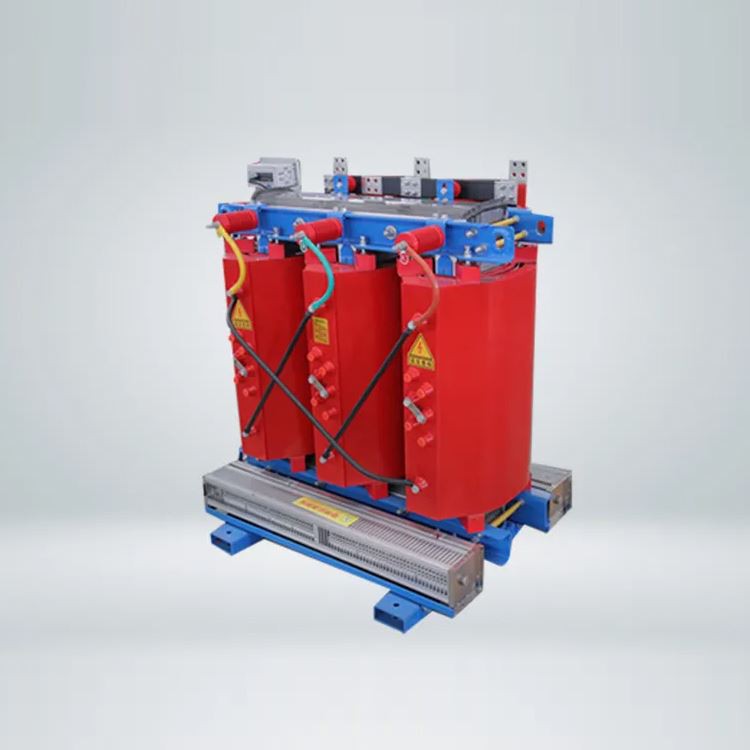

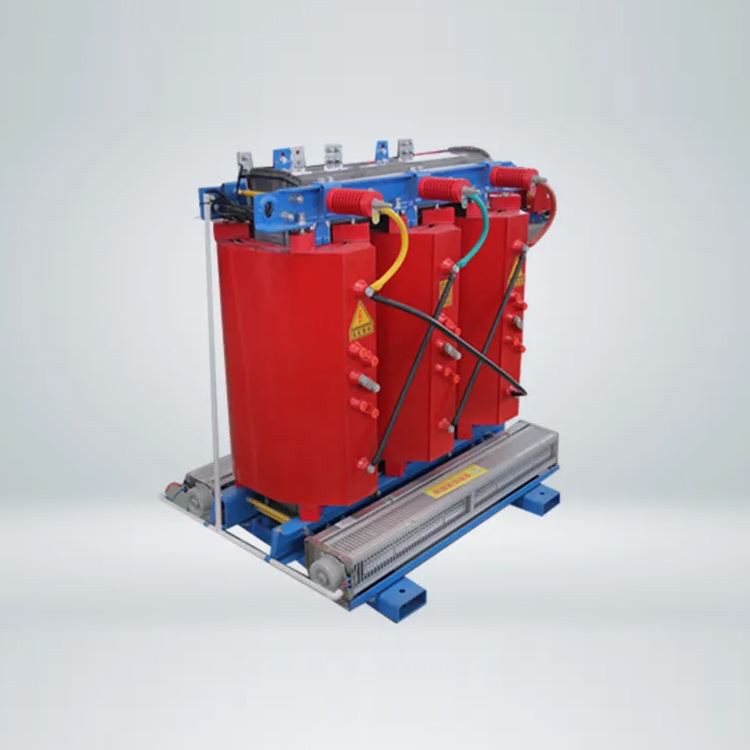

SCB10 Dry-type Transformer
Especially suitable for urban power grid, high-rise buildings, business centers, theaters, hospitals, hotels, tunnels, subways, underground power stations, stations, docks, airports, combined substation and other important places.
Description
Dry type transformer is refers to the core and windings are not immersed in the insulation oil of the transformer, cooling mode is divided into natural air cooling (AN) and forced air cooling (AF). When air cooled naturally, the transformer can run continuously for a long time under rated capacity. When forced air cooling, transformer output capacity can be increased by 50%. Suitable for intermittent overload operation, or emergency overload operation; Because the load loss and impedance voltage increase greatly during overload, it is in non-economic operation state, so it should not be in continuous overload operation for a long time. Dry transformer for industrial and mining enterprises and civil buildings in the distribution system of one of the important equipment, it will 10⑹kV or 35kV network voltage down to the user's use of 230/400V bus voltage. This product is suitable for AC 50(60)Hz, three-phase maximum rated capacity 2500kVA(single-phase maximum rated capacity 833kVA, generally not recommended for single-phase transformer)
