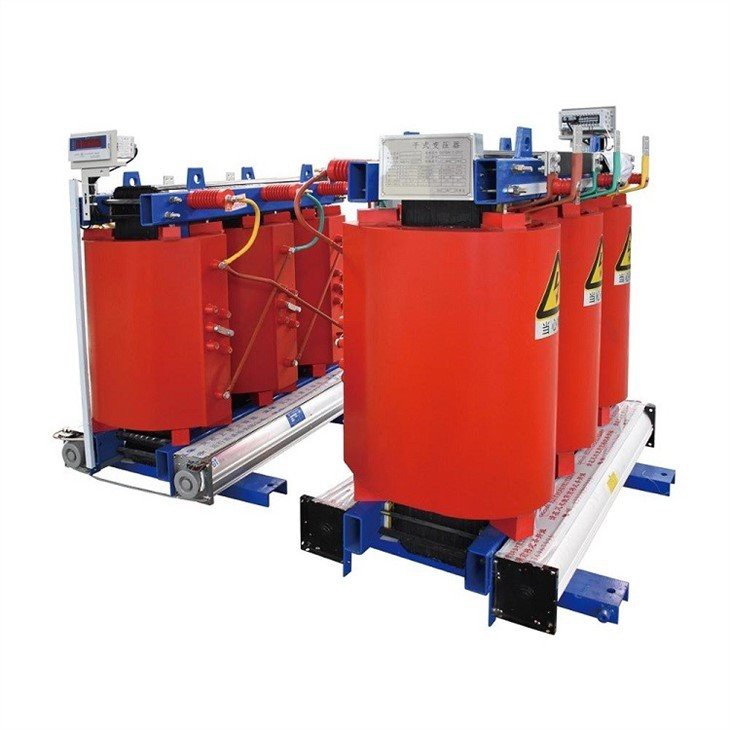

Cast Resin Dry Type Transformer
Our cast resin dry type transformers are automatically cast under vacuum and the insulation tape is very thin. The core is made of high-permeability oriented silicon wafers and is cast with imported epoxy resin. With advanced technology, high-quality raw materials, scientific management and...
Description
Cast Resin Dry Type Transformer
Our cast resin dry type transformers are automatically cast under vacuum and the insulation tape is very thin. The core is made of high-permeability oriented silicon wafers and is cast with imported epoxy resin. With advanced technology, high-quality raw materials, scientific management and perfect inspection methods
Reliable structure
The coil is reinforced with glass fiber and cast with filled epoxy resin under vacuum. It has good mechanical properties, no cracks and internal bubbles, less partial discharge, high reliability and long service life.
The high and low pressure system is cast under vacuum, so the coil will not absorb moisture. The iron core clamp is corrosion-resistant and may operate in high temperature or other harsh environments.
Quality materials
Flame retardant, explosion-proof, no environmental pollution. The insulating material in the coil (such as glass fiber) will self-extinguish, and will not cause a fire due to an arc caused by a short circuit. The resin will not produce toxic or harmful gases at high temperatures.
No. | Conditions | Units | Parameter Values | |
1 | Rated Voltage | kV | 10 | |
2 | Highest Operating Voltage | kV | 12 | |
3 | System Neutral Point Earthing Mode | Unearthed | ||
4 | Rated Frequency | Hz | 50 | |
5 | Pollution Grade | d(Ⅲ) | ||
6 | System Short Circuit Current Level (High Voltage Side) | kA | 20 | |
7 | Ambient Temperature | Maximum Daily Temperature | ℃ | 40 |
Minimum Daily Temperature | -25 | |||
Maximum Daily Temperature Difference | K | 25 | ||
Average Temperature of the Hottest Month | ℃ | 30 | ||
Maximum Annual Average Temperature | 20 | |||
8 | Humidity | Average Daily Relative Humidity | % | ≤95 |
Average Monthly Relative Humidity | ≤90 | |||
9 | Altitude | m | ≤1000 | |
10 | Solar Radiation Intensity | W/cm2 | 0.1 | |
11 | Maximum Icing Thickness | mm | 20 | |
12 | Maximum average wind speed: keeping in good conditions for 10min at 10m from the ground level | m/s | 35 | |
13 | Earthquake Resistance | Horizontal Ground Acceleration | m/s2 | 2 |
Safety Coefficient of 3 Since Resonance Cycles | ≥1.67 | |||
14 | Installation Site | Indoor | ||
Note 1: Values about temperatures in the table must be adjusted accordingly if the lowest ambient temperature is above -25℃. Note 2: Pollution grade diagram must be provided if the pollution grade is grade IV. | ||||
