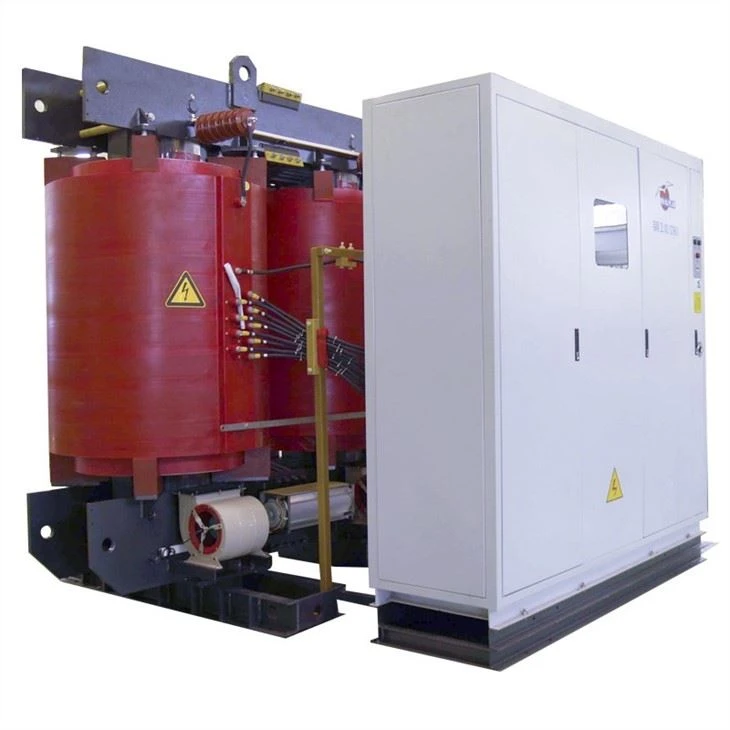

10/0.4KV 500kva Electrical DRY Transformer

Name: China Customized 10/0.4KV 500kva Electrical DRY Transformer Manufacturers, Suppliers - FENGYUAN
Brand: FENGYUAN
SKU: 188184774

Three-phase Epoxy-resin Dry-type Transformer is in conformity with the standard of IEC726, GB/T10228-1997, with features of low loss, compact and lightweight, low noise level, damp-proof, high mechanical strength, flame resisting, strong overload ability, and low partial discharge quality. They are applicable to power transmission and distribution systems, especially to heavy load centers and places with special fire protection requirements.

Send Inquiry

Description

10/0.4KV 500kva electrical DRY transformer

SC(B) series epoxy resin cast dry transformer is cast under vacuum with thin insulating bands automatically.

The core is made of a high-permeable grain-orientated silicon sheet and cast with imported epoxy resin.

The coil is reinforced with glass fiber and cast under vacuum with filler epoxy resin. It has good mechanical properties, is free of crack and inner bubble, and has a low local discharge, high reliability, and long service life.

The high and low-voltage systems are cast under vacuum, thus the coil will not absorb moisture, the clamps of the core are subjected to corrosion-resistant treatment and it may run under high temperature or other serious environments.

The insulating materials in the coil such as glass fiber are self-extinguishing and they will not generate toxic or harmful gas under high temperature.

Dry-type transformer Type	Cast resin
Manufacturing Standards	IEC, ANSI,GB
Rated Capacity	Up to 25MVA
Rated Voltage	Up to 36KV
Phases	Single or Three Phase
Tapping	With tapping links or on-load tap changer
Frequency	50Hz or 60Hz
Vector groups	Dy, Yy, Yd as standard. Other on request
Class insulation	According to IEC 60085, Class F or Class H
Type of cooling	AN (natural air),AF, AFWF on request
IP Rate	IP00 to IP54
Environment Class	E2
Environment Class	C2
Fireproof Class	F1

dry type transformer (2)

dry type transformer (3)

dry type transformer (4)

dry type transformer (7)

production line1

FAQ

Q1 :I know your quality is perfect but in our market normal quality are more popular what can I do?

A: Please don't worry, we can provide a series of quality of products, you can choose the best one to meet your market,we will try our best to support you. I believe we can provide products meet all your requirements

Q2 :Can I get a sample before the order because I really don't how is your products quality?

A: Of course! We also think sample order is the best way to build trust. We offer free sample service ! Do not hesitate to send inquiry to get the free sample!

Q3 :What's the delivery time? Because we really need them is urgently?

A: 3~7days For sending sample order. .15days for regular order , we will never eat our words.

Q4 :What's the warranty period for your products?

A: For One year warranty.
