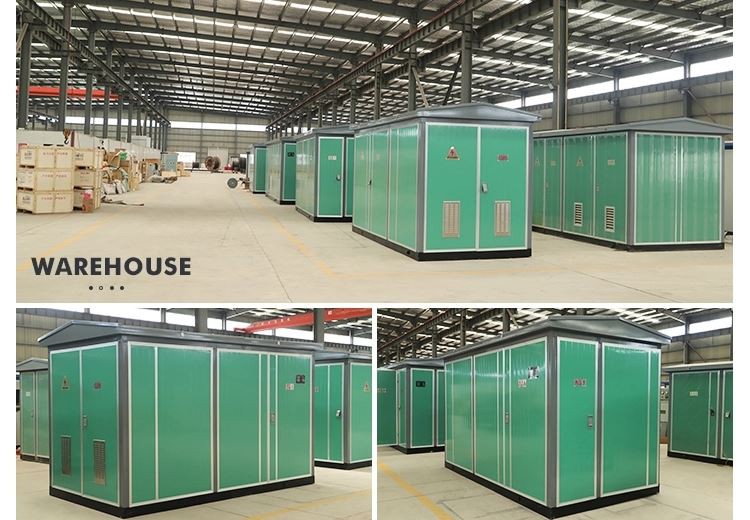

Electric Power Substation
Electric power substation, it is installed with automatic temperature control ventilation, heating, anti-condensation devices. There are various functions to prevent abuse. The bottom of the transformer can be equipped with a car and is easy to maintain. According to the use environment and...
Description
Electric power substation, it is installed with automatic temperature control ventilation, heating, anti-condensation devices. There are various functions to prevent abuse. The bottom of the transformer can be equipped with a car and is easy to maintain. According to the use environment and conditions, choose different wiring schemes, structural forms, and shell materials. It is suitable for urban power grid transformation, high-rise buildings, villas, residences, mines, oil fields, ports and temporary power facilities.
The Specification
| Item | Units | High-voltage electrical apparatus | Transformer | Low-voltage |
| Rated voltage | KV | 4/10 | 6/0.4 10/0.4 | 0.4 |
| Rated capacity | KVA | 50~1600 | ||
| Rated current | A | 200/400/630 | 100~3200 | |
| Rated short circuit breaking current | A | load switch 400-630 | 15~63kA | |
| KA | The combination switch depends on the fuse | |||
| Rated short time withstand current | KA | 16,20(4s) | 15(1s) | |
| 30(1s) | ||||
| Rated peak withstand current | KA | 31.5,50 | 30 | |
| 63 | ||||
| power frequency withstand voltage(1min) | KV | Opposite and interphase 32/42 | 25/35(oil type) | ≤0.3,2 |
| isolating distance 36/48 | 20/28(dye type) | >0.3,2.5 | ||
| Lightning impact voltage (peak) | KV | Opposite and interphase | 60/75 | |
| 60/75 | ||||
| isolating distance | ||||
| 70/85 | ||||
| Noise level | 55db | |||
| Protection grade | IP23 | |||
| Executive standard | GB/T17467 | |||
| DL/T537 | ||||
Note: 1. All products will be tested before delivery.
2. All products can be customized.
