Power Transformer Box Substation
Box substation is an outdoor complete set of power distribution device for 6~12kV ring network or radiating grid power supply system. The box substation combines 6~12kV high-voltage switchgear, 6~12kV/0.4kV power transformer with a maximum rated capacity of 1600kVA and low-voltage switchgear,...
Description

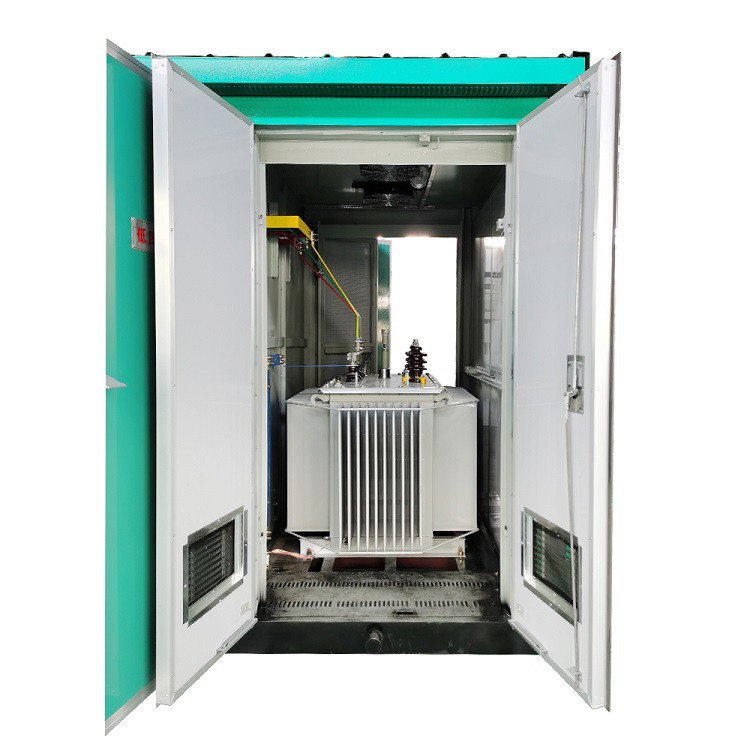

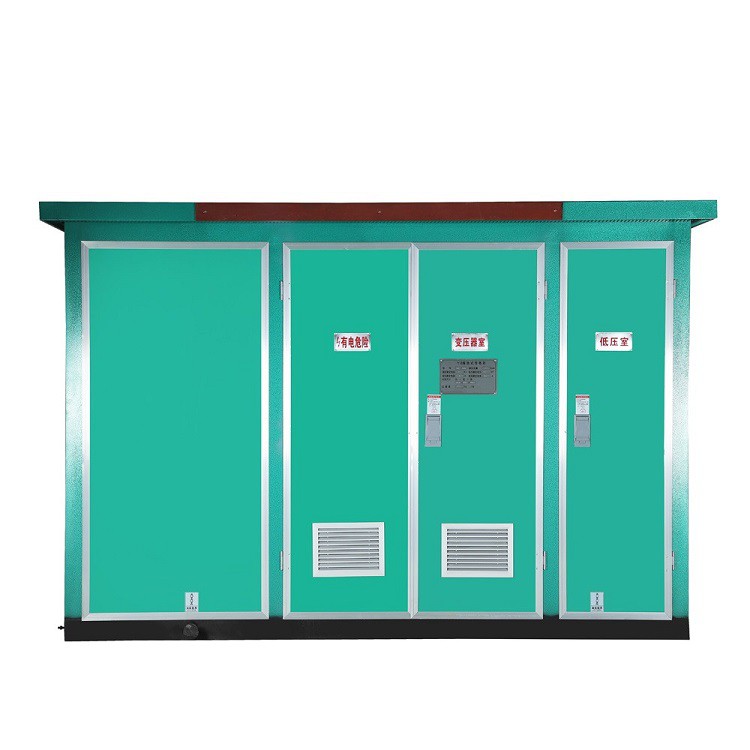

Box substation is an outdoor complete set of power distribution device for 6~12kV ring network or radiating grid power supply system. The box substation combines 6~12kV high-voltage switchgear, 6~12kV/0.4kV power transformer with a maximum rated capacity of 1600kVA and low-voltage switchgear, and installs it in a closed box to form an independent public-accessible substation.
The product has the characteristics of strong complete set, compact structure, small size, easy to move, easy installation and maintenance. Beautiful shape, can match the color of the surrounding environment. It is suitable for installation in construction sites, factories, mines, oil fields, residential quarters, commercial centers, streets and other places. It can go deep into the load center to the maximum extent, receive electric energy, transform voltage, and supply power to low-voltage users.
Technical parameter:
| Project name | Unit | Data | ||
| High voltage side | Transformer | Low voltage side | ||
| Rated voltage | kV | 12 | 12/0.4 | 0.4 |
| Rated current | A | 630 | —— | 100～2500 |
| Rated frequency | Hz | 50 | 50 | 50 |
| Transformer capacity | kVA | —— | 30～1600 | —— |
| Rated short-circuit breaking current | kA | 20、25、31.5 | —— | 15、30、65 |
| Rated short-circuit making current | kA | 50、63、80 | —— | —— |
| Rated short-circuit withstand current | kA/s | 20、25、31.5/2 | —— | 15、30、65 |
| Rated peak withstand current | kA | 50、63、80 | —— | 30、63、143 |
.
