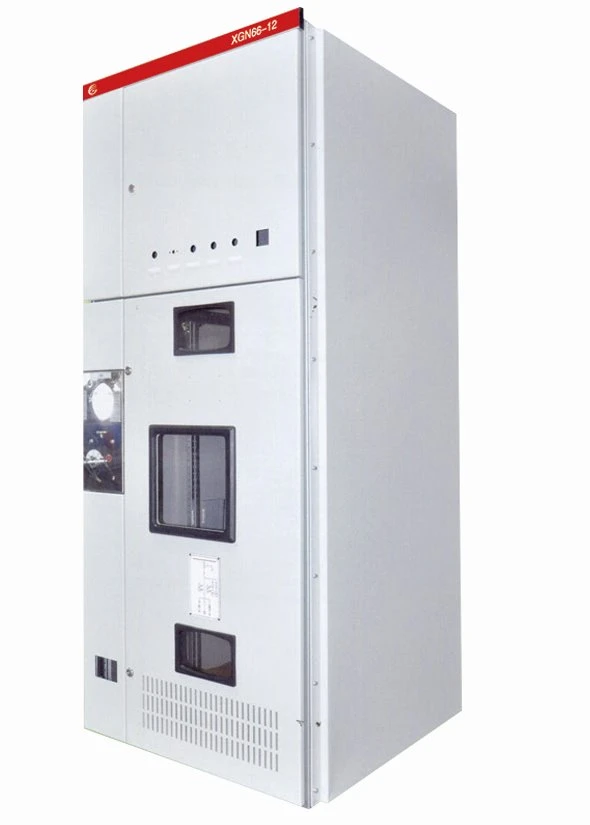

XGN66-12 Switchgear
XGN66-12 switchgear is suitable for 3~10kV three-phase ac 50Hz single bus system. As a new generation of miniaturized urban and rural power grid equipment, it is characterized by miniaturization, reasonable structure, safety and reliability, and simple operation. To meet the power market and...
Description
XGN66-12 switchgear is suitable for 3~10kV three-phase ac 50Hz single bus system. As a new generation of miniaturized urban and rural power grid equipment, it is characterized by miniaturization, reasonable structure, safety and reliability, and simple operation. To meet the power market and urban network, rural network transformation, box substation demand.
The structure of cabinet body is assembled without welding, with high mechanical strength and beautiful appearance.Gn30-12 rotary isolation switch is adopted for the upper part of the back of the cabinet, and gn19-12c isolation switch is adopted for the lower isolation, which is operated according to the programReliable mechanical interlocking device provides reliable safety protection for operators and equipment;The cabinet is empty and insulated, and can be equipped with integrated vacuum circuit breakers: fixed vsl-12 (ZN63A), vd4-12 and other circuit breakers;Mandatory mechanical locking mode is adopted between the main switch, isolation switch and cabinet door.The cable terminal is far from the ground, which is convenient for the production, installation, inspection and maintenance of the cable.The protection grade of shell is IP3X. The material is made of galvanized sheet.
Boundary dimension
